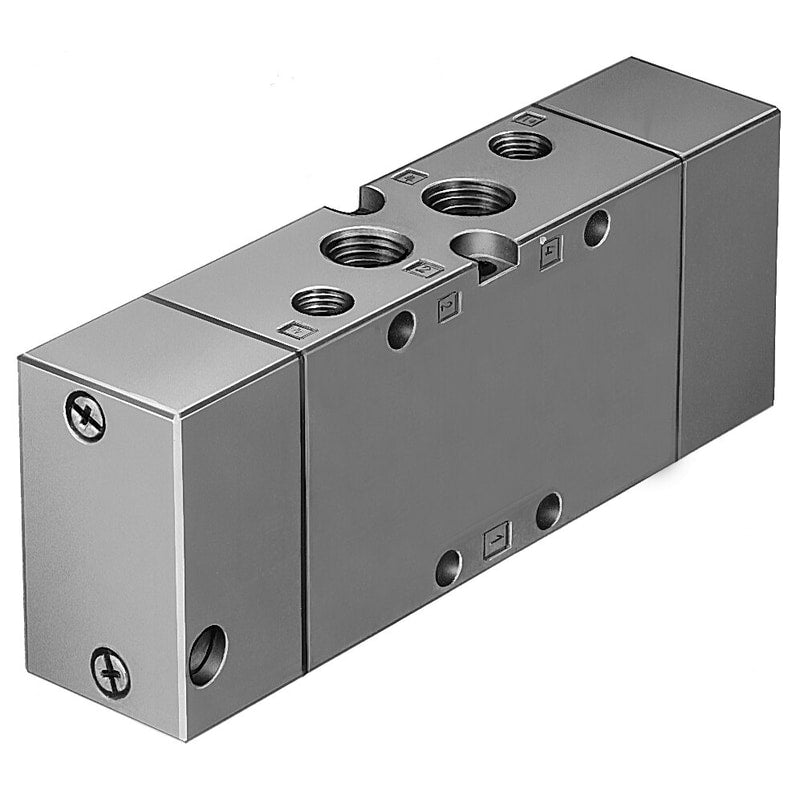

Pneumatic valve
VL-5/3B-1/4-B
14299
GTIN 4052568112493
Vendor Festo
- Valve function
- 5/3, pressurized
- Normal nominal flow rate (normalized to DIN 1343)
- 1600 l/min
- Pneumatic connection 1
- G1/4
- Actuation type
- Pneumatic
Regular price
$403.17
Unit price
VL-5/3B-1/4-B is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VL-5/3B-1/4-B
Regular price
$403.17
Unit price
VL-5/3B-1/4-B is backordered and will ship as soon as it is back in stock.
pneumatic valve VL-5/3B-1/4-B 5/3-way function, centre position pressurised Valve function=5/3 pressurised, Type of actuation=pneumatic, Width=32 mm, Standard nominal flow rate=1600 l/min, Operating pressure=-0,9 - 10 bar

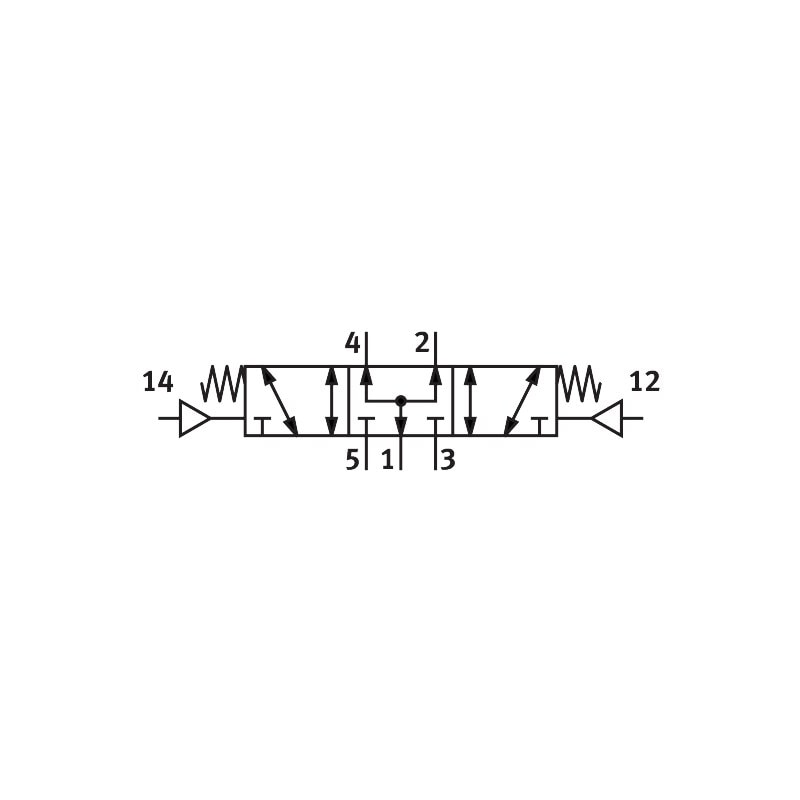

| Valve function | 5/3 pressurised |
|---|---|
| Type of actuation | pneumatic |
| Width | 32 mm |
| Standard nominal flow rate | 1,600 l/min |
| Operating pressure | '-0.9 ... 10 bar |
| Design structure | Piston slide |
| Type of reset | mechanical spring |
| Nominal size | 10 mm |
| Grid dimension | 33 mm |
| Exhaust-air function | throttleable |
| Sealing principle | soft |
| Assembly position | Any |
| Manual override | None |
