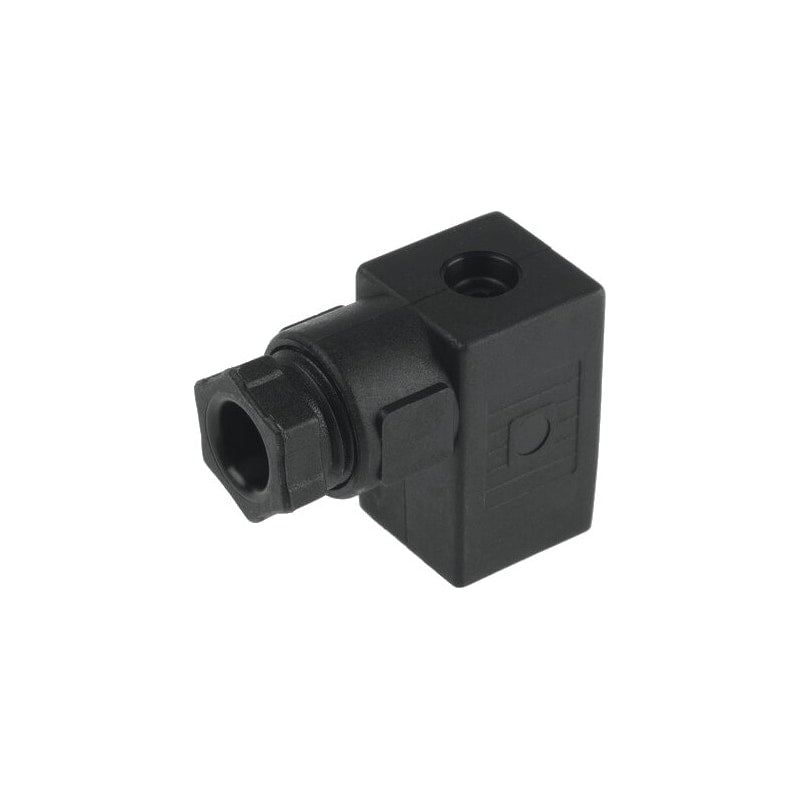

Plug socket
MSSD-E
14098
GTIN 4052568021702
Vendor Festo
- Connection cross section
- 0.75 mm²
- Degree of protection
- IP65
Regular price
$6.56
Unit price
MSSD-E is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
MSSD-E
Regular price
$6.56
Unit price
MSSD-E is backordered and will ship as soon as it is back in stock.
| Type code | MSSD-E |
|---|---|
| Type of mounting | On air solenoid valve with M3 central screw |
| Product weight | 8 g |
| Electrical connection 1 | Angled socket, rectangular design, 3-pin, form C |
| Electrical connection 2 | Screw terminal |
| DC operating voltage range | 0 V ... 300 V |
| Operating voltage range AC | 0 V ... 250 V |
| Current rating at 40°C | 0.25 |
| Cable diameter | 6 mm ... 8 mm |
| Connection cross section | 0.75 mm² |
| Degree of protection | IP65 |
| Ambient temperature | -25 °C ... 90 °C |
| Contamination level | 3 |
| Housing material | PA-reinforced |
| Housing colour | Black |
| Seals material | NBR |
| Mounting position | Any |
| Cable fitting | Pg7 |
