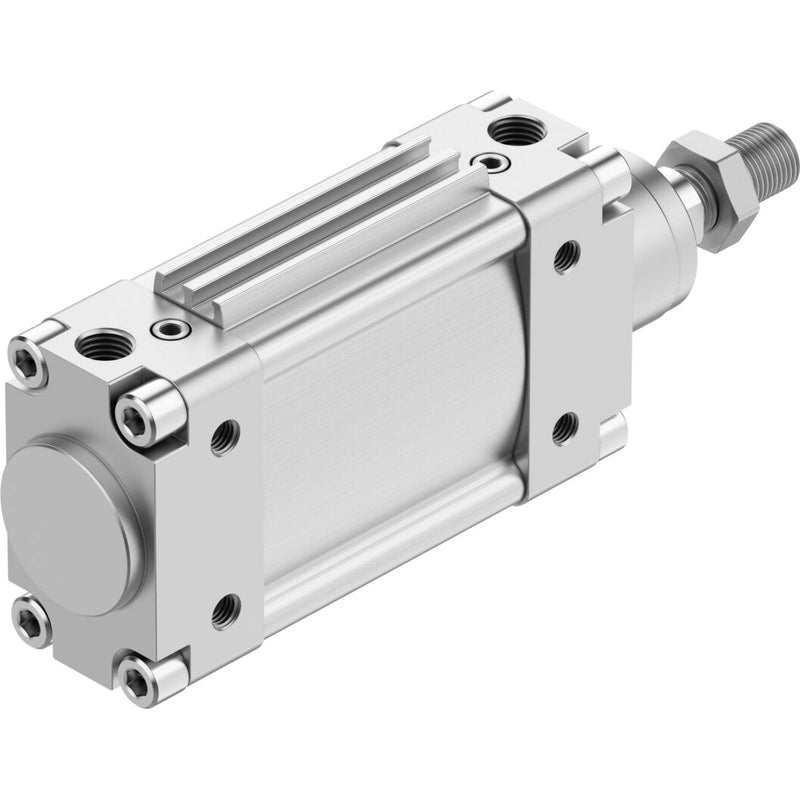

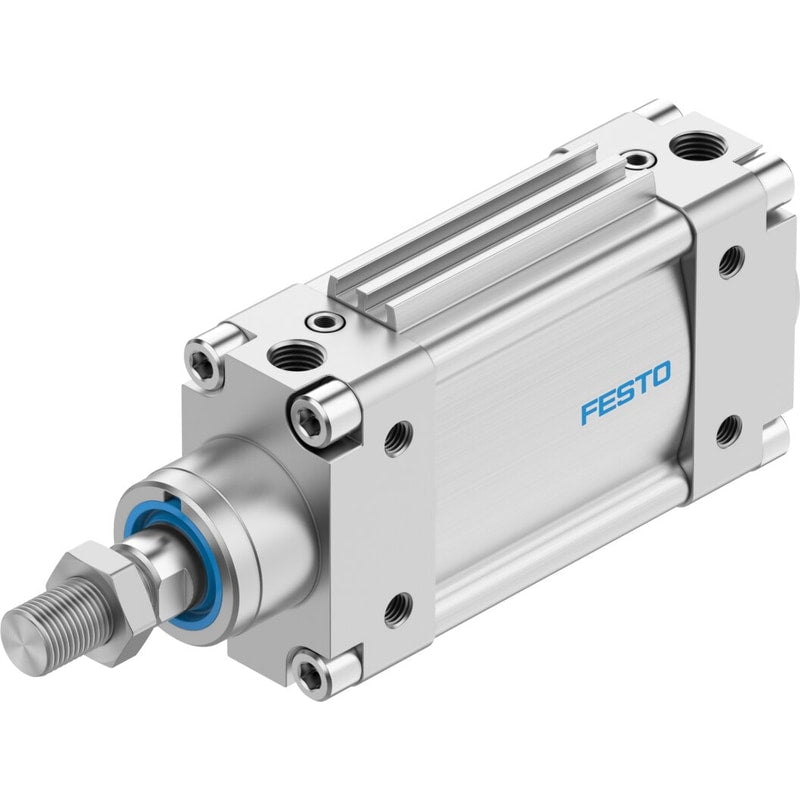

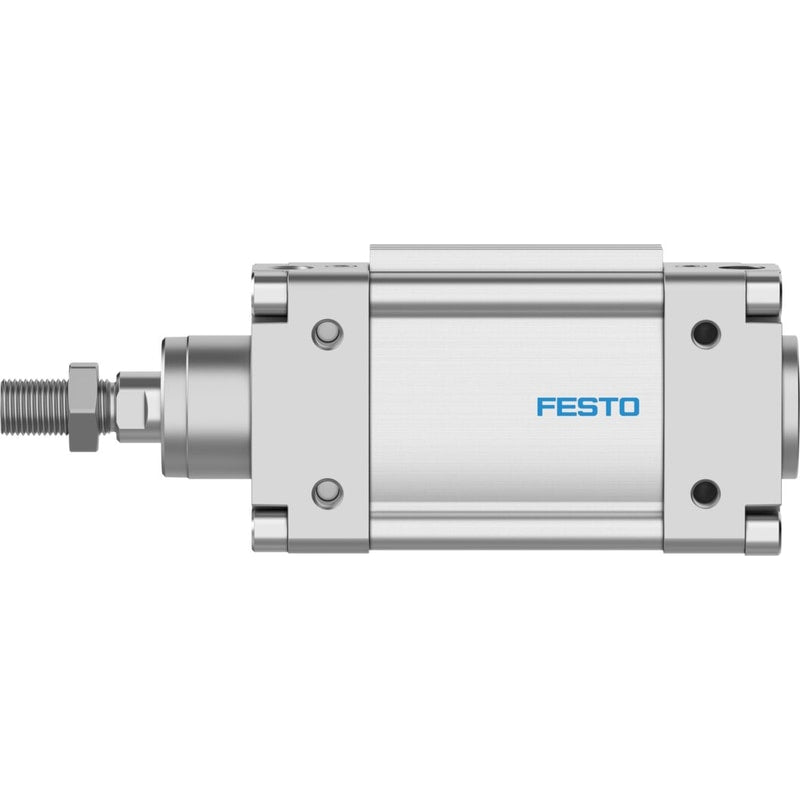

Flat cylinder
DZH-50-40-PPV-A
14064
GTIN 4052568112325
Vendor Festo
- Mode of operation
- Double-acting
- Piston diameter
- 50 mm - Equivalent diameter
- Theoretical force at 6 bar, advancing
- 1178 N
- Stroke
- 40 mm
- Cushioning
- Pneumatic cushioning, adjustable at both ends
Regular price
$554.95
Unit price
DZH-50-40-PPV-A is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
DZH-50-40-PPV-A
Regular price
$554.95
Unit price
DZH-50-40-PPV-A is backordered and will ship as soon as it is back in stock.
flat cylinder DZH-50-40-PPV-A Non-rotating, for proximity sensing, with adjustable cushioning at both ends. Various mounting options, with or without additional mounting components. Stroke=40 mm, Piston diameter=(* 50 mm, * Equivalent diameter), Max. angular deflection of piston rod +/-=0,75 deg, Cushioning=PPV: Pneumatic cushioning adjustable at both ends, Assembly position=Any
| Stroke | 40 mm |
|---|---|
| Piston diameter | 50 mmEquivalent diameter |
| Max. angular deflection of piston rod +/- | 0.75 deg |
| Cushioning | PPV: Pneumatic cushioning adjustable at both ends |
| Assembly position | Any |
| Mode of operation | double-acting |
| Design structure | PistonPiston rod |
| Position detection | For proximity sensor |
| Protection against torque/guide | Oval piston |
| Operating pressure | 0.6 ... 10 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Corrosion resistance classification CRC | 2 - Moderate corrosion stress |
