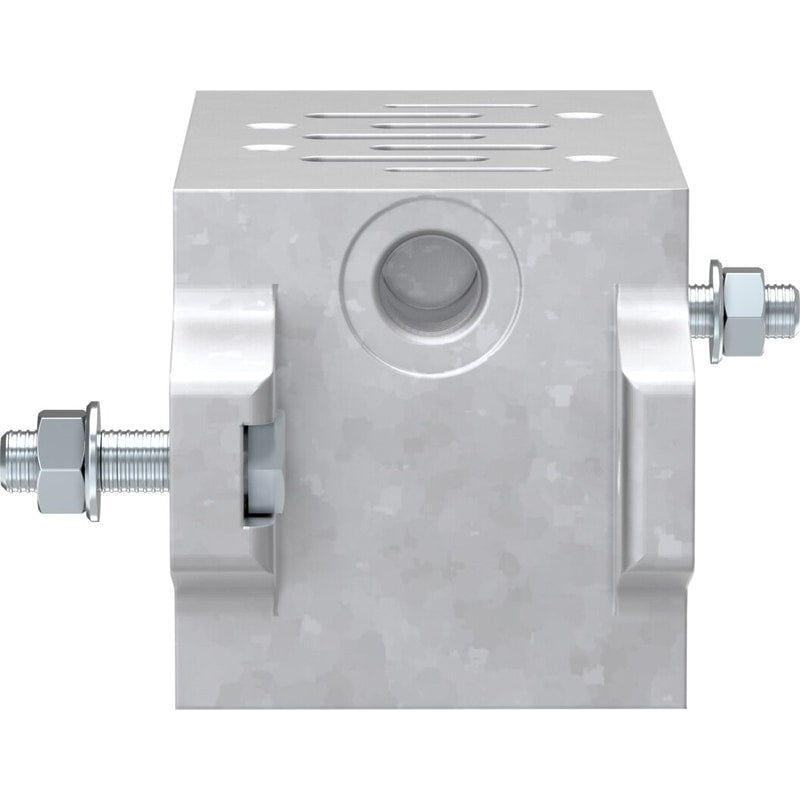

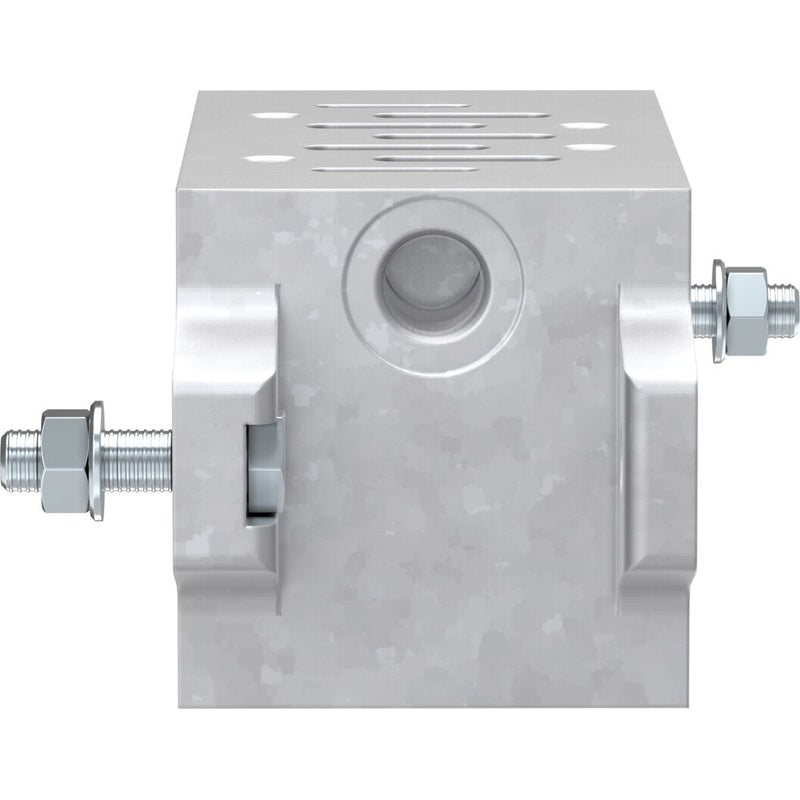

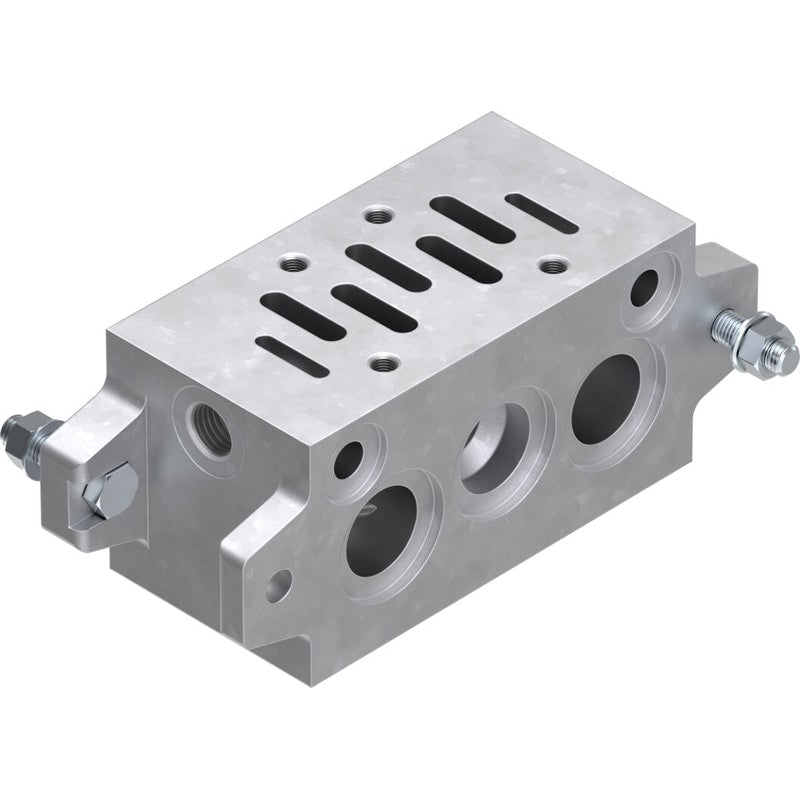

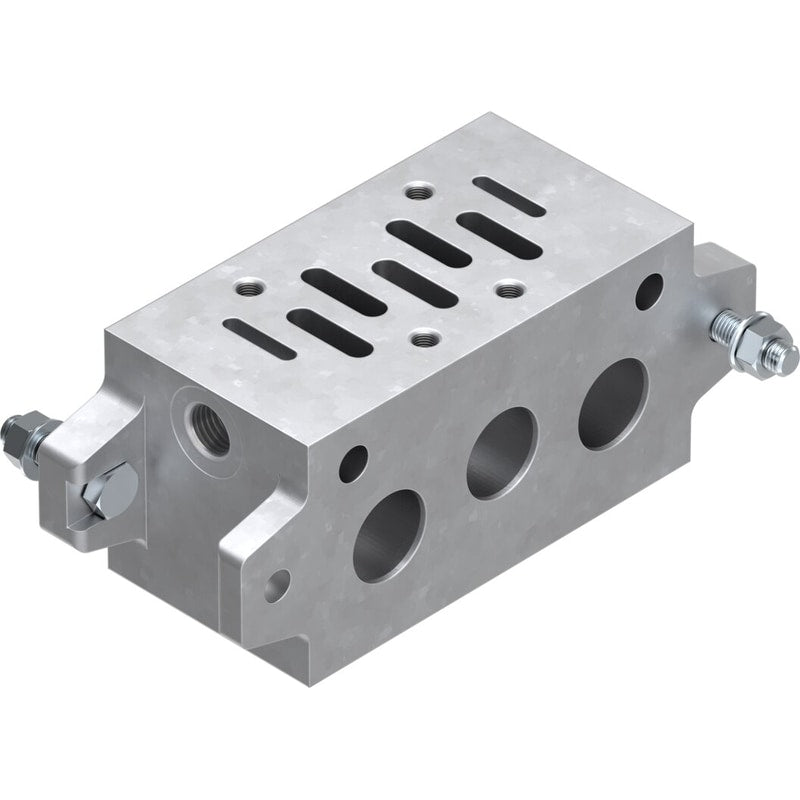

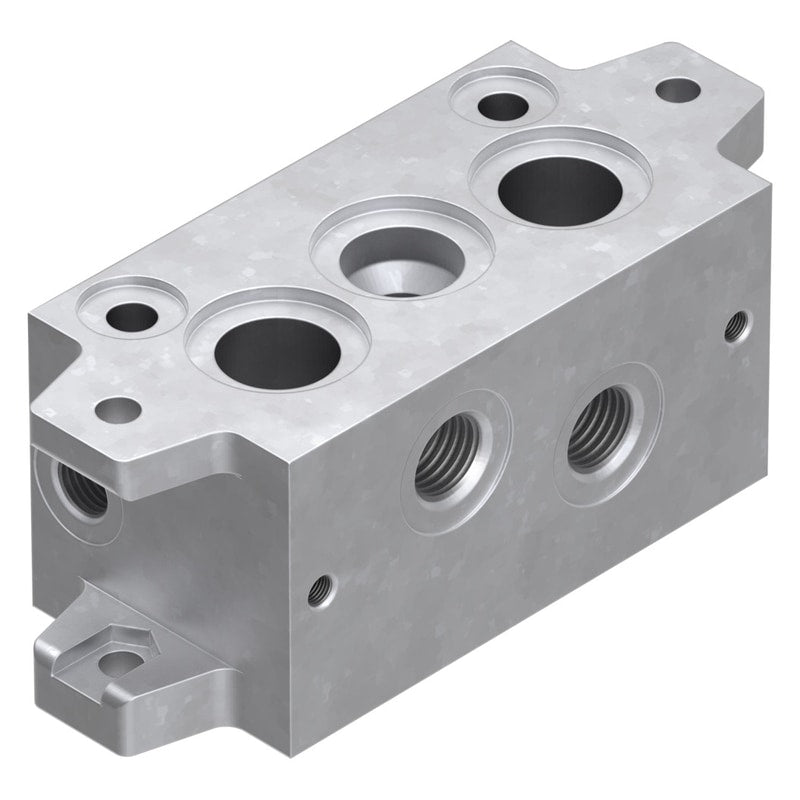

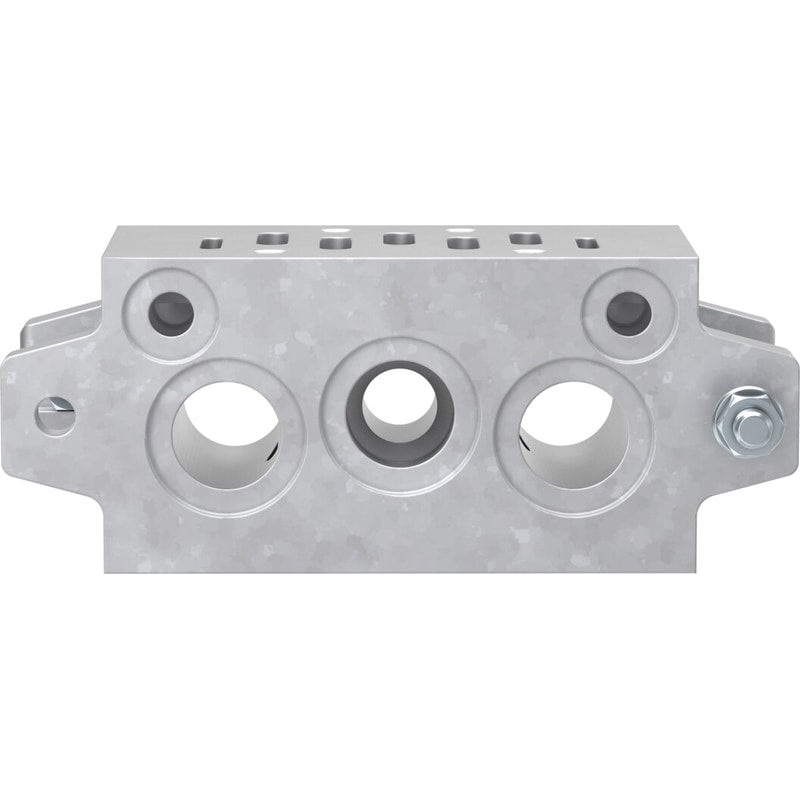

Manifold sub-base
NAV-1/2-NPT-3C
13999
GTIN 4052568304379
Vendor Festo
Regular price
$72.05
Unit price
NAV-1/2-NPT-3C is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
NAV-1/2-NPT-3C
Regular price
$72.05
Unit price
NAV-1/2-NPT-3C is backordered and will ship as soon as it is back in stock.
manifold sub-base NAV-1/2-NPT-3C With port pattern as per DIN ISO 5599/1, for manifold assembly, connections underneath. Width=190 mm, Operating pressure=16 bar, Operating medium=Compressed air in accordance with ISO8573-1:2010 [7:-:-], Note on operating and pilot medium=Lubricated operation possible (subsequently required for further operation), Medium temperature=-10 - 60 °C
| Width | 190 mm |
|---|---|
| Operating pressure | 16 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Medium temperature | '-10 ... 60 °C |
| Ambient temperature | '-10 ... 60 °C |
| Mounting method for sub-base | with through hole |
| Pilot air port 12 | NPT1/8-27 |
| Pilot air port 14 | NPT1/8-27 |
| Pneumatic connection, port 2 | NPT1/2-14 |
| Pneumatic connection, port 4 | NPT1/2-14 |
