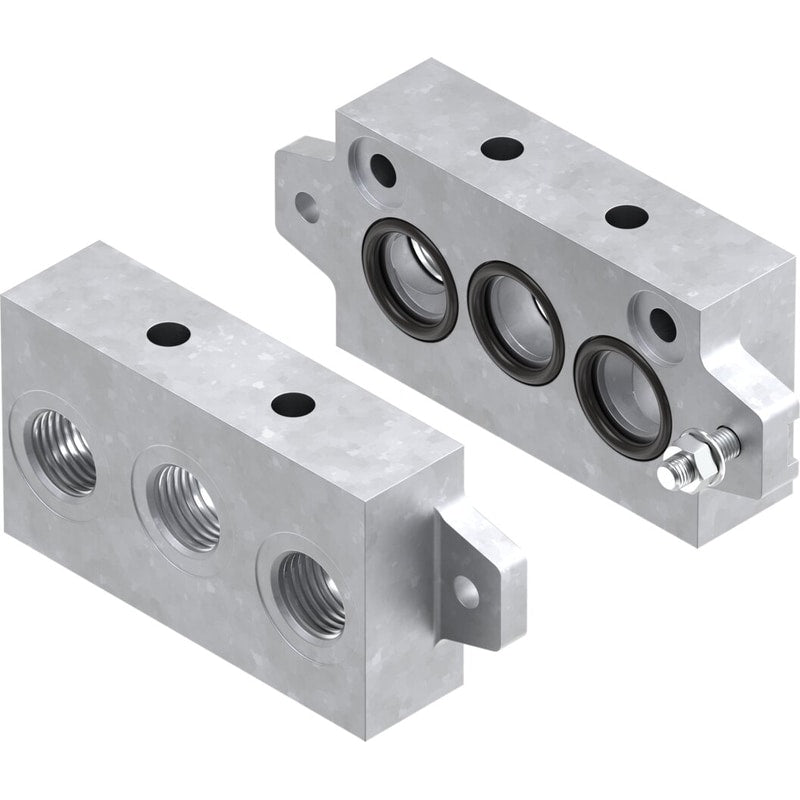

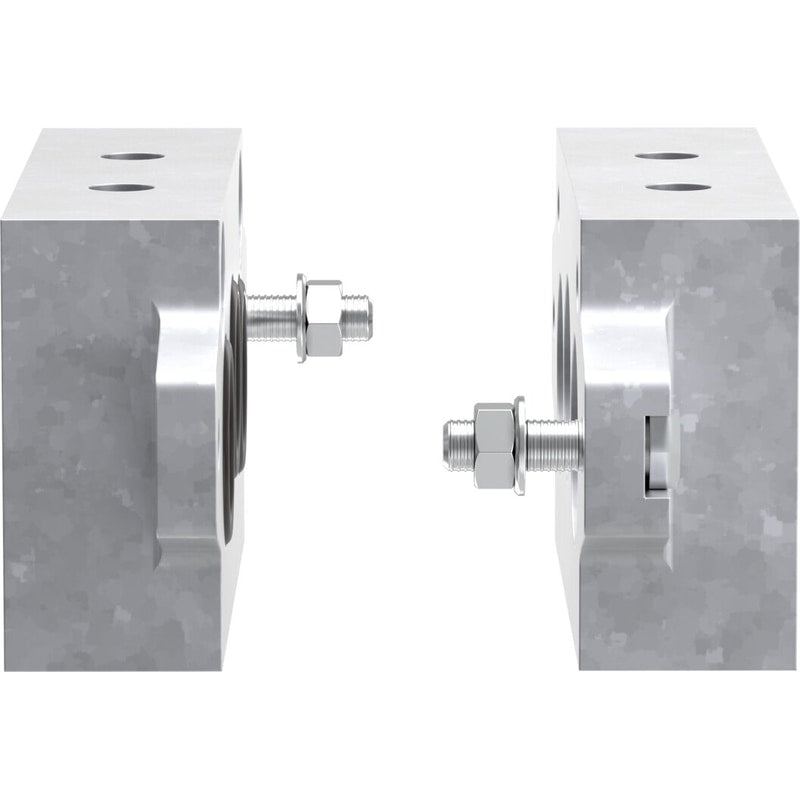

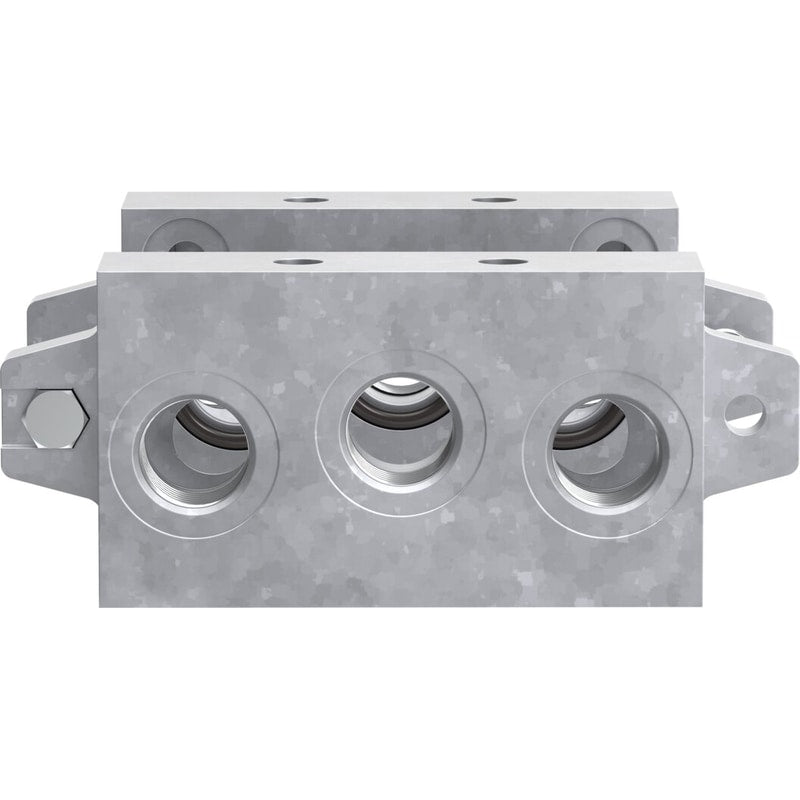

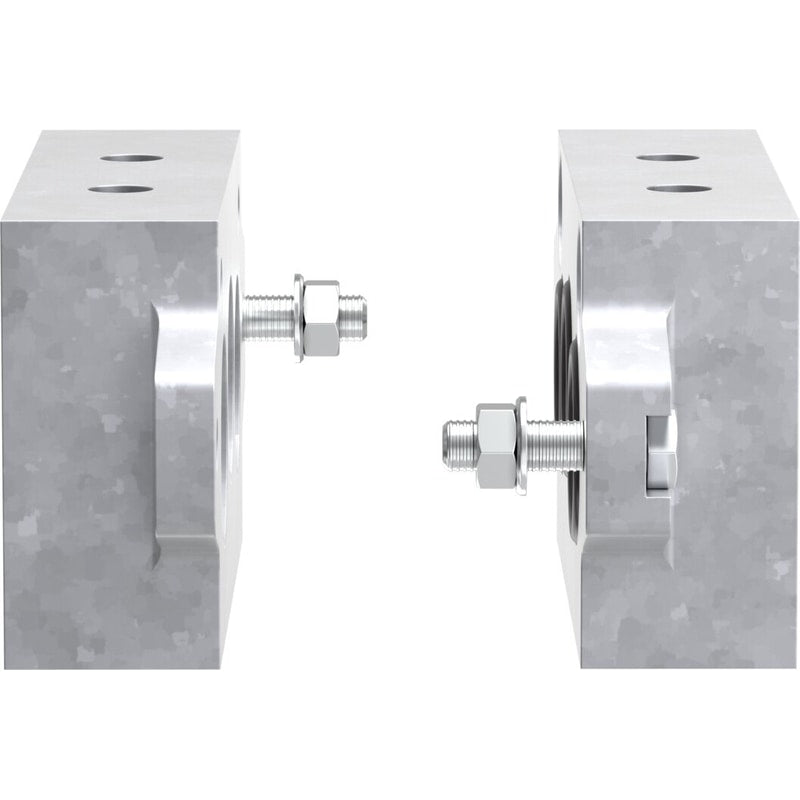

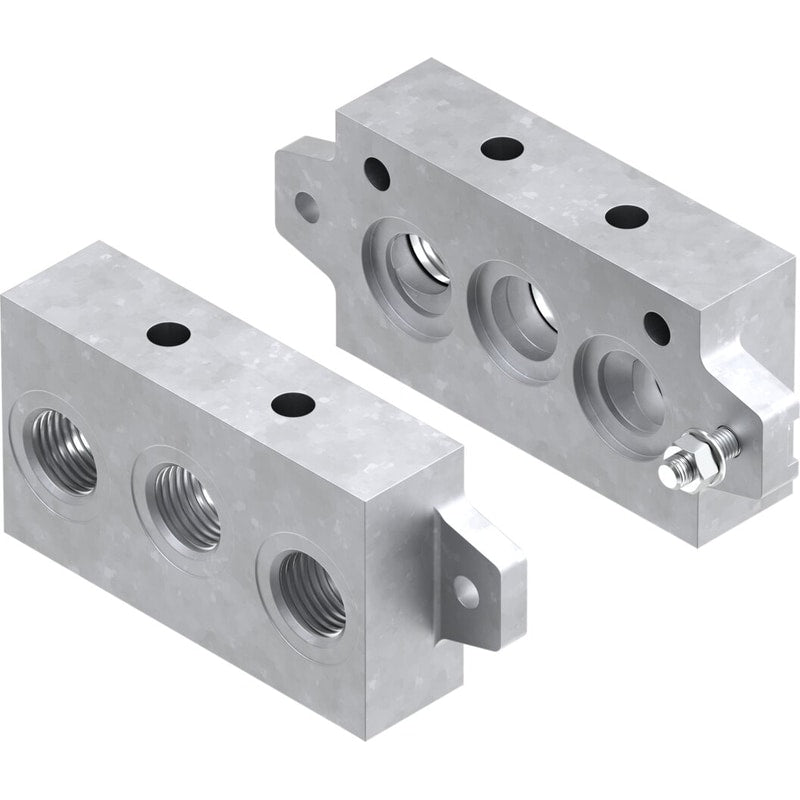

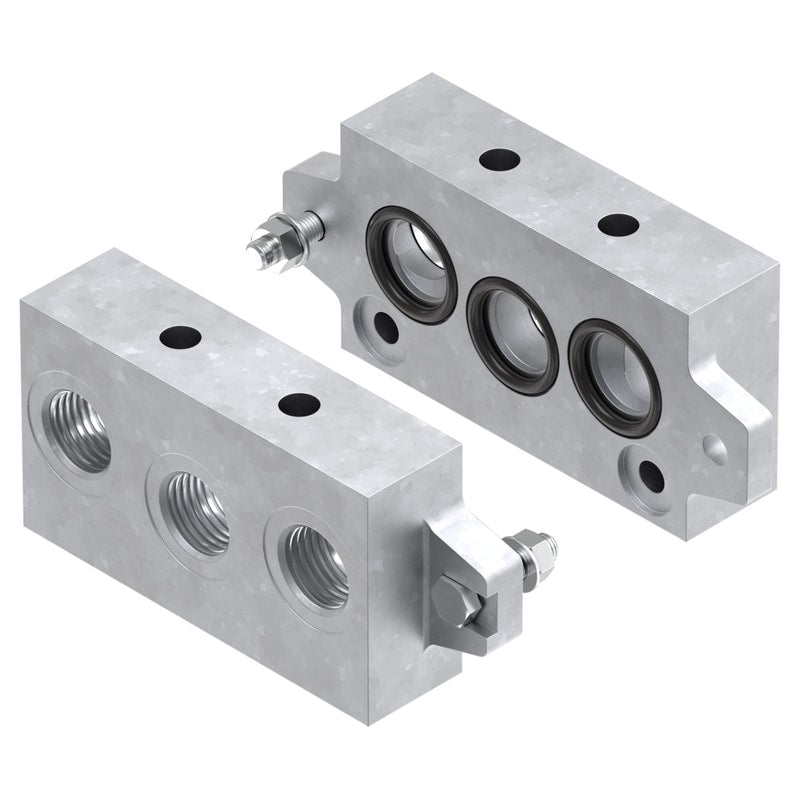

End plate kit
NEV-3DA/DB-NPT
13997
GTIN 4052568304355
Vendor Festo
Regular price
$87.41
Unit price
NEV-3DA/DB-NPT is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
NEV-3DA/DB-NPT
Regular price
$87.41
Unit price
NEV-3DA/DB-NPT is backordered and will ship as soon as it is back in stock.
end plate kit NEV-3DA/DB-NPT For manifold assembly of standard manifold sub-bases. Width=190 mm, Operating pressure=0 - 16 bar, Operating medium=Compressed air in accordance with ISO8573-1:2010 [7:-:-], Note on operating and pilot medium=Lubricated operation possible (subsequently required for further operation), Medium temperature=-10 - 60 °C
| Width | 190 mm |
|---|---|
| Operating pressure | 0 ... 16 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Medium temperature | '-10 ... 60 °C |
| Ambient temperature | '-10 ... 60 °C |
| Mounting method for sub-base | with through hole |
| Mounting method for valve | Threaded |
| Pneumatic connection, port 1 | NPT1-11 1/2 |
| Pneumatic connection, port 3 | NPT1-11 1/2 |
| Pneumatic connection, port 5 | NPT1-11 1/2 |
