Individual subbase
NAS-1/2-NPT-3A
13995
GTIN 4052568304331
Vendor Festo
Regular price
$61.85
Unit price
NAS-1/2-NPT-3A is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
NAS-1/2-NPT-3A
Regular price
$61.85
Unit price
NAS-1/2-NPT-3A is backordered and will ship as soon as it is back in stock.

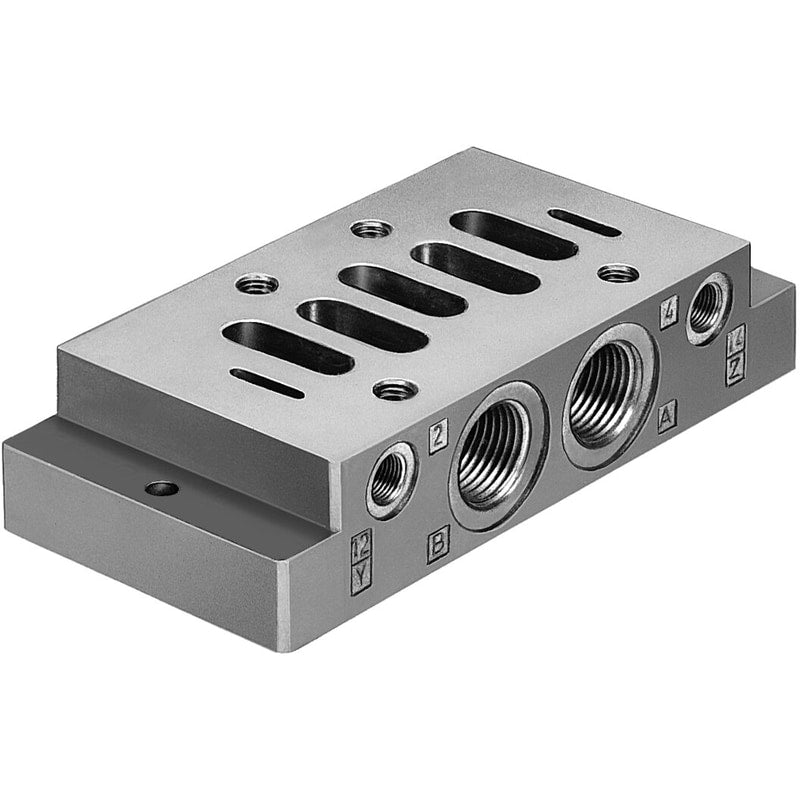

individual sub-base NAS-1/2-NPT-3A Based on standard ISO 5599-1, connection at side. Length=35,5 mm, Operating pressure=16 bar, Operating medium=Compressed air in accordance with ISO8573-1:2010 [7:-:-], Note on operating and pilot medium=Lubricated operation possible (subsequently required for further operation), Medium temperature=-10 - 60 °C
| Length | 35.5 mm |
|---|---|
| Operating pressure | 16 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Medium temperature | '-10 ... 60 °C |
| Ambient temperature | '-10 ... 60 °C |
| Mounting method for sub-base | with through hole |
| Pneumatic connection, port 1 | NPT1/2-14 |
| Pneumatic connection, port 2 | NPT1/2-14 |
| Pneumatic connection, port 4 | NPT1/2-14 |
