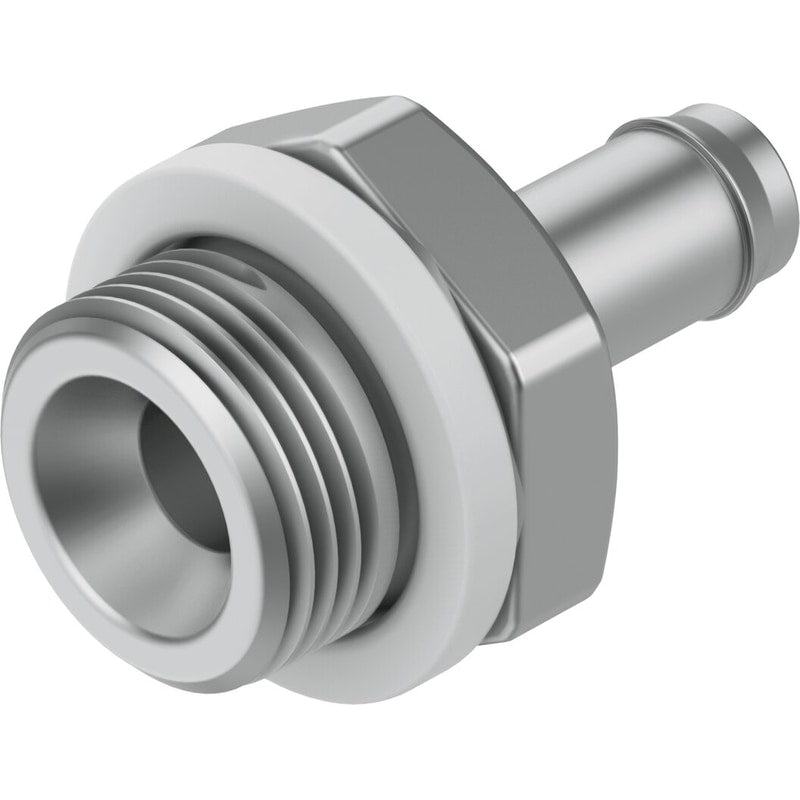

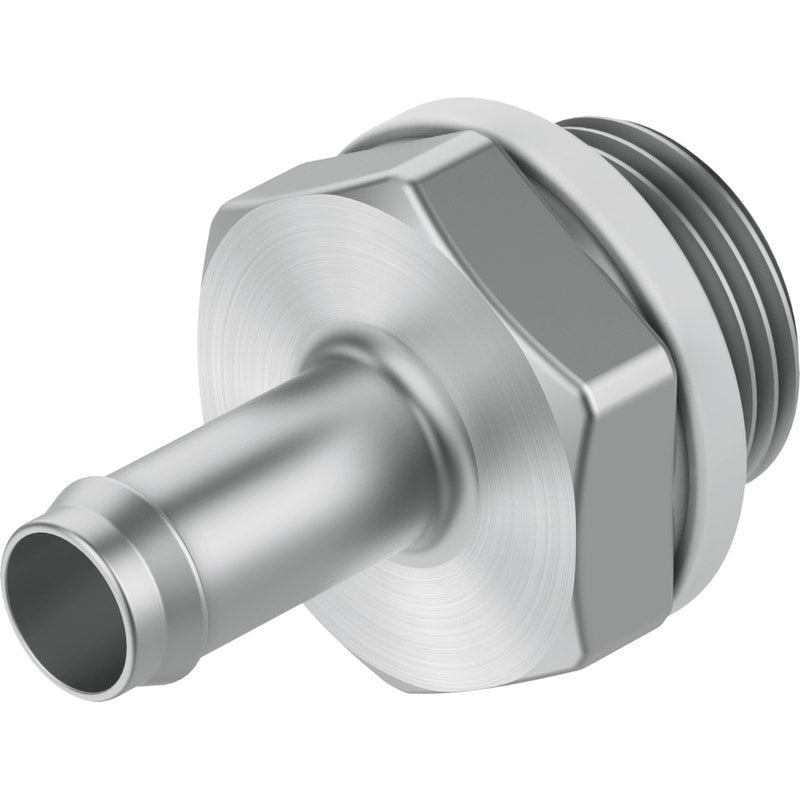

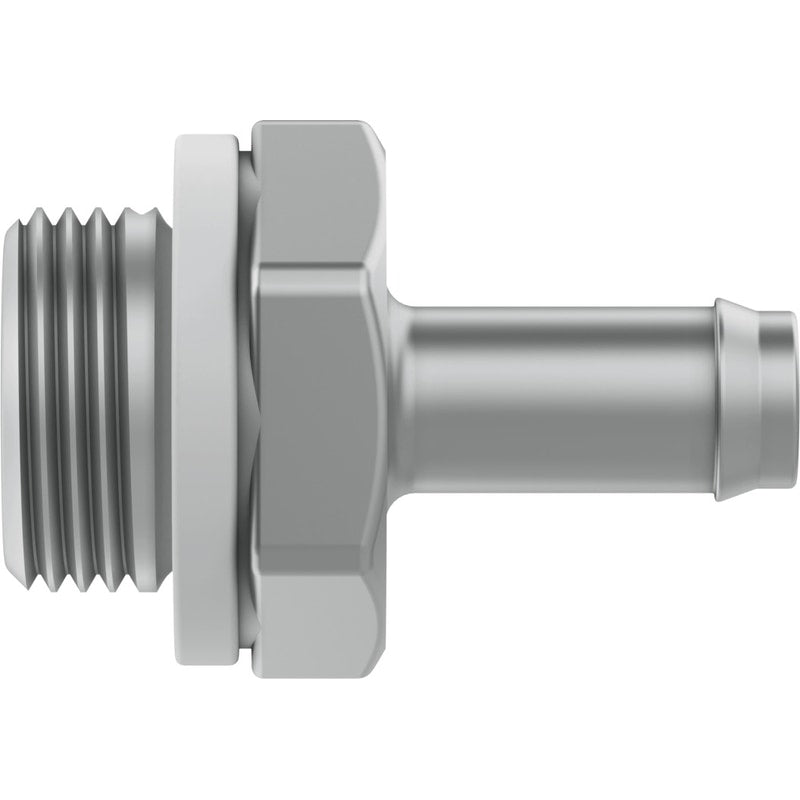

Barb fitting
CRCN-1/4-PK-4
13972
GTIN 4052568021672
Vendor Festo
- Pneumatic connection 1
- External thread G1/4
- Pneumatic connection 2
- for pneumatic tubing outside diameter 6 mm
- Nominal width
- 3.2 mm
- Ambient temperature
- 0 °C - 60 °C
Regular price
$24.96
Unit price
CRCN-1/4-PK-4 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
CRCN-1/4-PK-4
Regular price
$24.96
Unit price
CRCN-1/4-PK-4 is backordered and will ship as soon as it is back in stock.
barbed fitting CRCN-1/4-PK-4 Corrosion resistant, with sealing ring, for plastic tubing PAN, PUN, PL, PP, PU. Nominal size=3,2 mm, Type of seal on screw-in stud=Sealing ring, Container size=1, Operating pressure complete temperature range=-0,95 - 10 bar, Operating medium=Compressed air in accordance with ISO8573-1:2010 [7:-:-]
| Fitting Type | Barbed Straight |
|---|---|
| Nominal size | 3.2 mm |
| Type of seal on screw-in stud | Sealing ring |
| Container size | 1 |
| Operating pressure complete temperature range | '-0.95 ... 10 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Corrosion resistance classification CRC | 2 - Moderate corrosion stress |
| Food-safe | See Supplementary material information |
| Ambient temperature | 0 ... 60 °C |
| Product weight | 17.73 g |
| connection 1 | Male thread G1/4 |
| connection 2 | For tubing outside diameter 6 mm |
| Materials note | Conforms to RoHS |
| Material housing | High alloy steel, non-corrosive |
| Material of threaded seal | FPMStainless steel |
