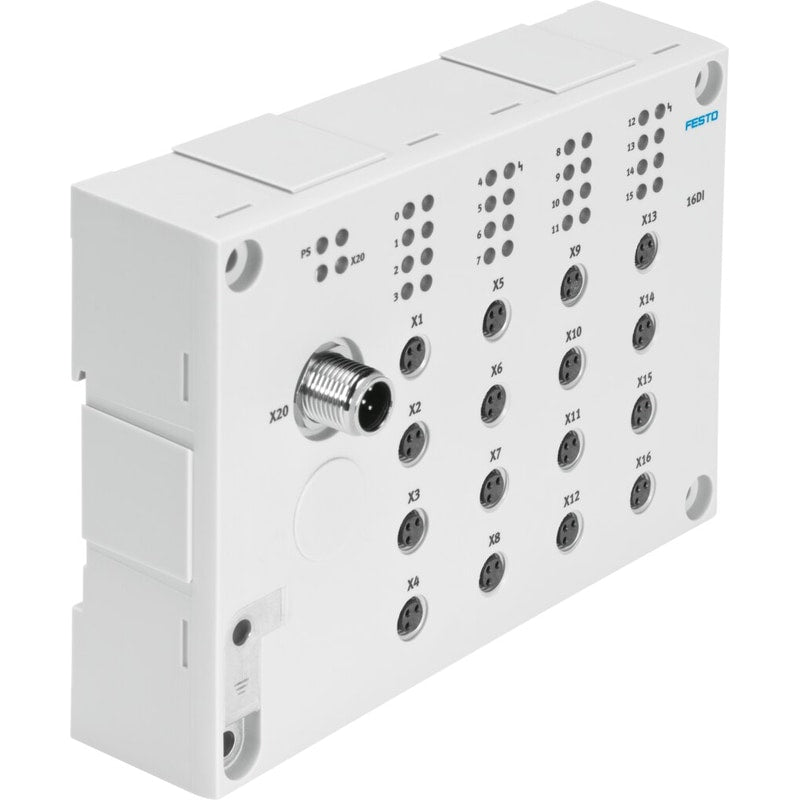

Input module
CTSL-D-16E-M8-3
1387363
GTIN 4052568232559
Vendor Festo
- Electrical connection
- M8
- Nominal operating voltage DC
- 24 V
- Max. number of inputs
- 16
Regular price
$448.76
Unit price
CTSL-D-16E-M8-3 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
CTSL-D-16E-M8-3
Regular price
$448.76
Unit price
CTSL-D-16E-M8-3 is backordered and will ship as soon as it is back in stock.
| Dimensions W x L x H | 143 mm x 103 mm x 32 mm |
|---|---|
| KC characters | KC EMC |
| Type code | CTSL |
| Reverse polarity protection | for operating voltage |
| Fuse protection (short circuit) | Internal electronic fuse per group |
| Baud rate | 38.4 kbit/s, 230.4 kbit/s |
| DC operating voltage range | 18 V ... 30 V |
| Input debounce time | 0.5 ms (3 ms, 10 ms, 20 ms parameterizable) |
| Max. residual current per module | 1.2 A |
| Max. number of inputs | 16 |
| Nominal operating voltage DC | 24 V |
| Electrical isolation between channels | no |
| Switching level | Signal 1: >= 11 VSignal 0: <= 5 V |
| Logic current consumption at logic nominal operating voltage | ≤ 35 mA |
| CE marking (see declaration of conformity) | As per EU EMC directive |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Storage temperature | -20 °C ... 70 °C |
| Degree of protection | IP65IP67 |
| Ambient temperature | -5 °C ... 50 °C |
| Certification | RCM compliance mark |
| Product weight | 250 g |
| Protocol | IO-Link®I-Port |
| IO-Link®, Connection technology | Device, 5-pin |
| IO-Link®, communication mode | COM2 (38.4 kBd), COM3 (230.4 kBd) |
| IO-Link®, port class | B |
| IO-Link®, number of ports | 1 |
| IO-Link®, process data width IN | 2 Byte |
| IO-Link®, minimum cycle time | Device 3.2 ms |
| Input characteristics | IEC1131-T2 |
| Input switching logic | PNP (positive switching) |
| Electrical connection | 3-pinM816x socket |
| LED display (bus-specific) | X20: I-Port / IO-Link® |
| LED display (product-specific) | 1 PS electrical operating voltage2 group diagnostics16 channel status |
| Type of mounting | With H-railWith through-holeOptionally: |
| Note on materials | RoHS-compliant |
| Cover material | PA-reinforced |
| Housing material | PA-reinforced |
