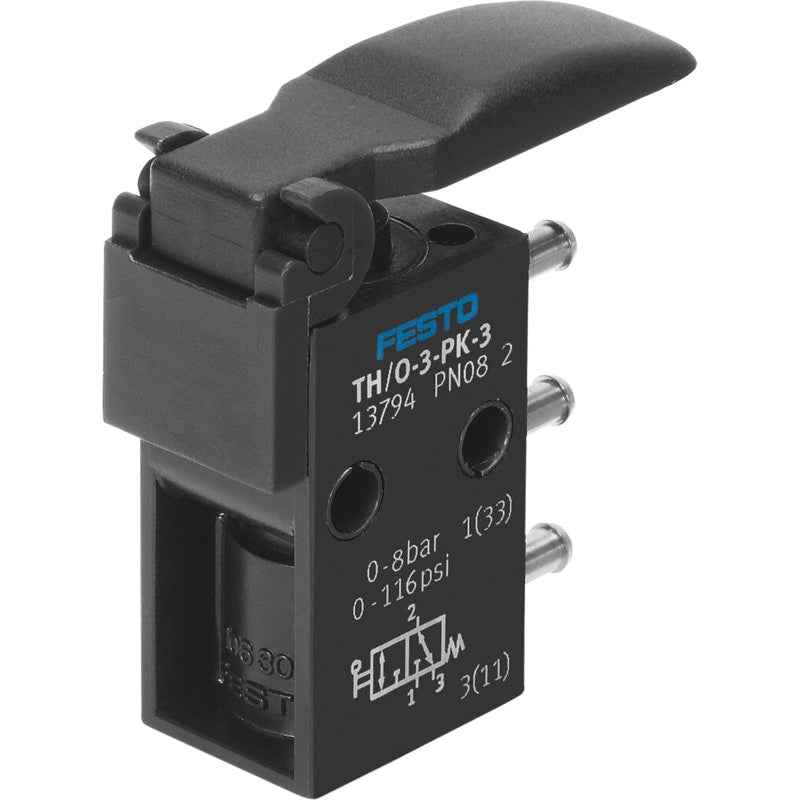

Finger lever valve
TH/O-3-PK-3
13794
GTIN 4052568066147
Vendor Festo
- Valve function
- 3/2, open/closed, monostable
- Normal nominal flow rate (normalized to DIN 1343)
- 80 l/min
- Pneumatic connection 1
- PK-3
- Pneumatic working port
- PK-3
- Operating pressure
- 0 bar - 8 bar
Regular price
$66.69
Unit price
TH/O-3-PK-3 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
TH/O-3-PK-3
Regular price
$66.69
Unit price
TH/O-3-PK-3 is backordered and will ship as soon as it is back in stock.

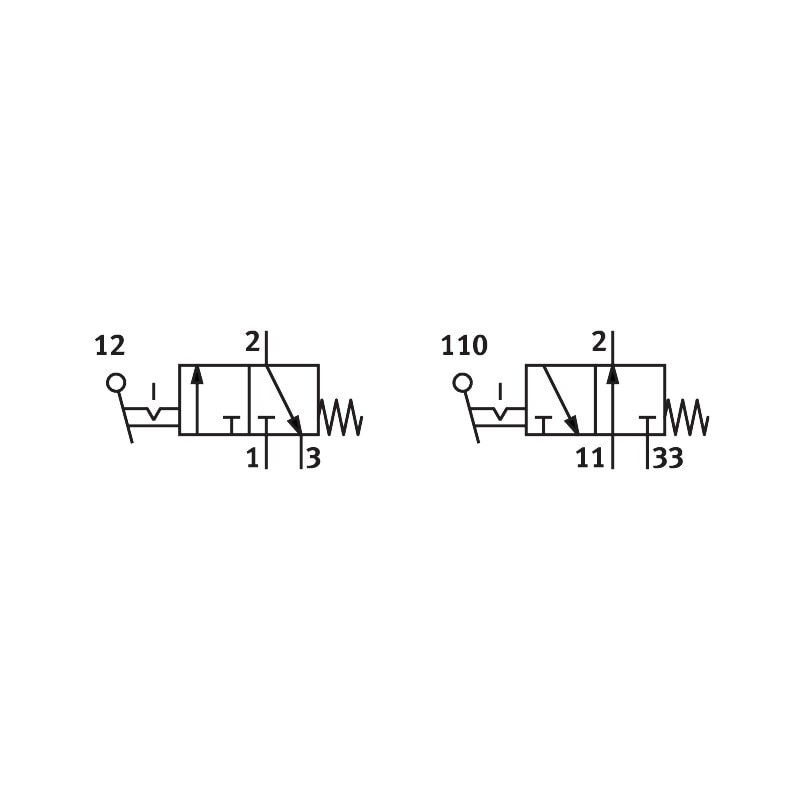

finger lever valve TH/O-3-PK-3 With barbed fitting connection for tubing ND 3 mm. Depending on the choice of connections, normally-open or normally-closed function. Valve function=3/2 open/closed, monostable, Standard nominal flow rate=80 l/min, Operating pressure=0 - 8 bar, Design structure=Piston seat, Nominal size=2,5 mm
| Valve function | 3/2 open/closed, monostable |
|---|---|
| Standard nominal flow rate | 80 l/min |
| Operating pressure | 0 ... 8 bar |
| Design structure | Piston seat |
| Nominal size | 2.5 mm |
| Type of piloting | direct |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [-:-:-] |
| Ambient temperature | '-10 ... 60 °C |
| Actuating force for normally closed | 8 N |
| Actuating force for normally open | 6 N |
| Product weight | 18 g |
| Mounting type | with through hole |
| Pneumatic connection, port 1 | PK-3 |
