Pushbutton valve
K/O-3-PK-3
13793
GTIN 4052568066130
Vendor Festo
- Valve function

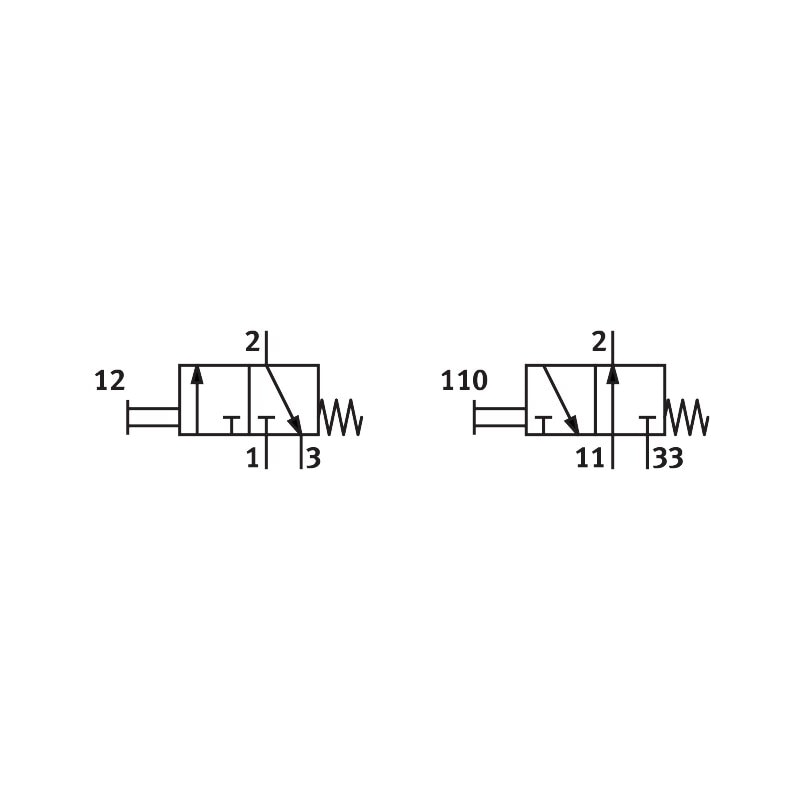

- 3/2, open/closed, monostable
- Normal nominal flow rate (normalized to DIN 1343)
- 80 l/min
- Pneumatic connection 1
- PK-3
- Pneumatic working port
- PK-3
- Operating pressure
- 0 bar - 8 bar
Regular price
$62.81
Unit price
K/O-3-PK-3 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
K/O-3-PK-3
Regular price
$62.81
Unit price
K/O-3-PK-3 is backordered and will ship as soon as it is back in stock.

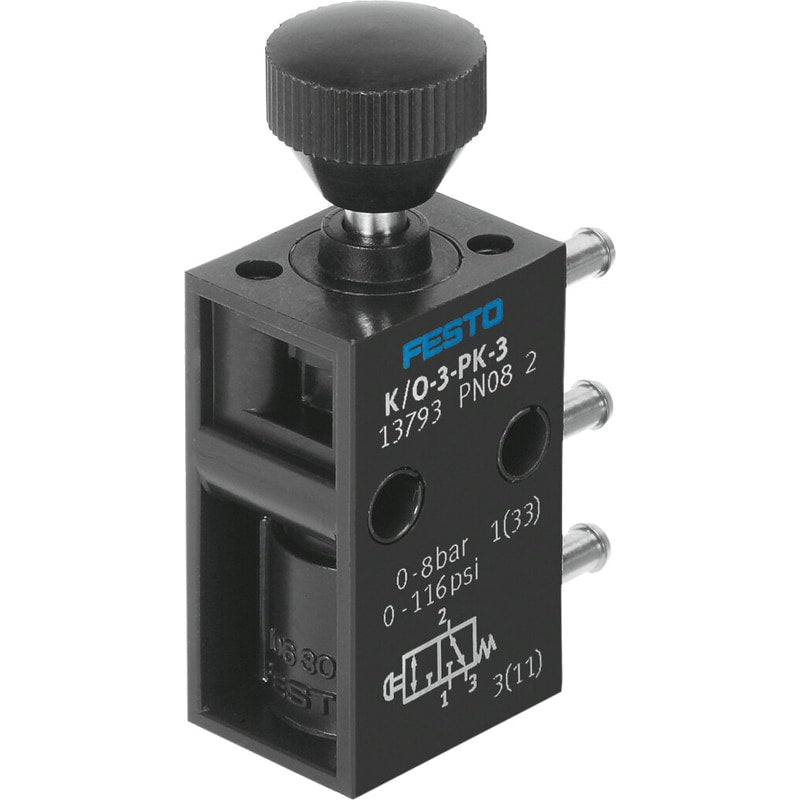

pushbutton valve K/O-3-PK-3 With barbed fitting connection for tubing ND 3 mm. Actuation via pushbutton. Depending on the choice of connection, normally-open or normally-closed function. Valve function=3/2 open/closed, monostable, Standard nominal flow rate=80 l/min, Operating pressure=0 - 8 bar, Design structure=Piston seat, Nominal size=2,5 mm
| Valve function | 3/2 open/closed, monostable |
|---|---|
| Standard nominal flow rate | 80 l/min |
| Operating pressure | 0 ... 8 bar |
| Design structure | Piston seat |
| Nominal size | 2.5 mm |
| Type of piloting | direct |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [-:-:-] |
| Ambient temperature | '-10 ... 60 °C |
| Actuating force for normally closed | 24 N |
| Actuating force for normally open | 17 N |
| Product weight | 20 g |
| Mounting type | with through hole |
| Pneumatic connection, port 1 | PK-3 |
