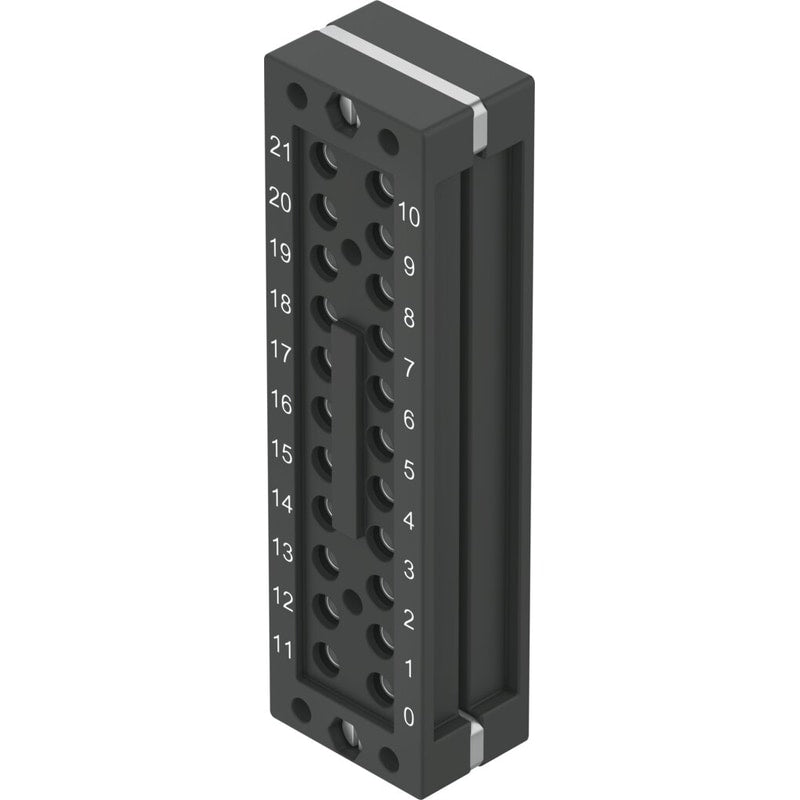

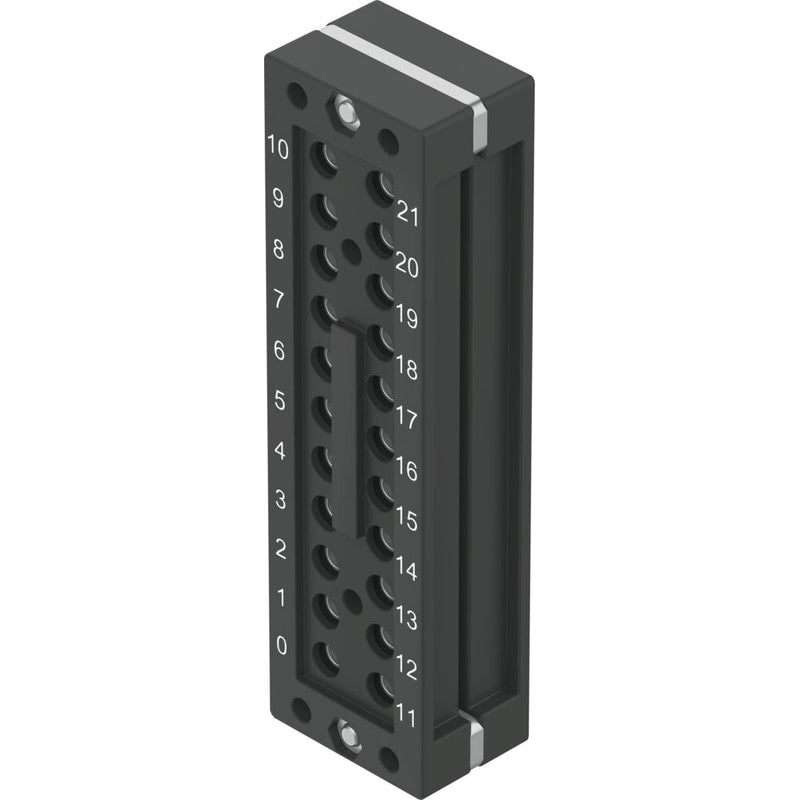

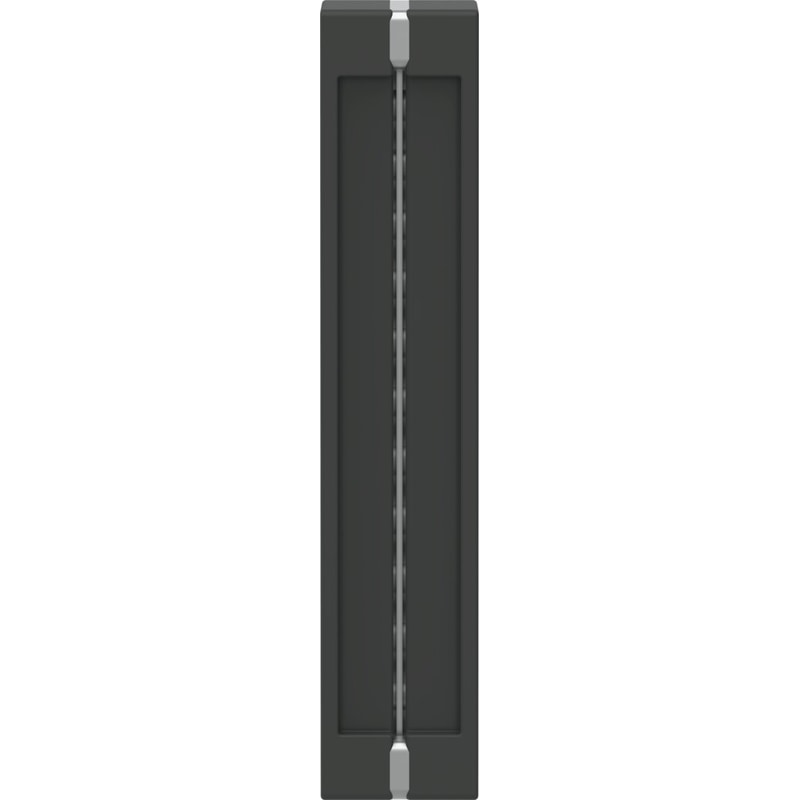

Multi-tube connector
KM-22-B
13694
GTIN 4052568066086
Vendor Festo
Regular price
$73.28
Unit price
KM-22-B is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
KM-22-B
Regular price
$73.28
Unit price
KM-22-B is backordered and will ship as soon as it is back in stock.
multi-tube connector KM-22-B Nominal size=4 mm, Operating pressure=-0,95 - 8 bar, Operating medium=Compressed air in accordance with ISO8573-1:2010 [7:-:-], Note on operating and pilot medium=Lubricated operation possible (subsequently required for further operation), Medium temperature=-10 - 60 °C
| Fitting Type | n/a |
|---|---|
| Nominal size | 4 mm |
| Operating pressure | '-0.95 ... 8 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Medium temperature | '-10 ... 60 °C |
| Ambient temperature | '-10 ... 60 °C |
| Max. number of connections | 22 |
| Pneumatic connection | PK-2PK-3PK-4 |
