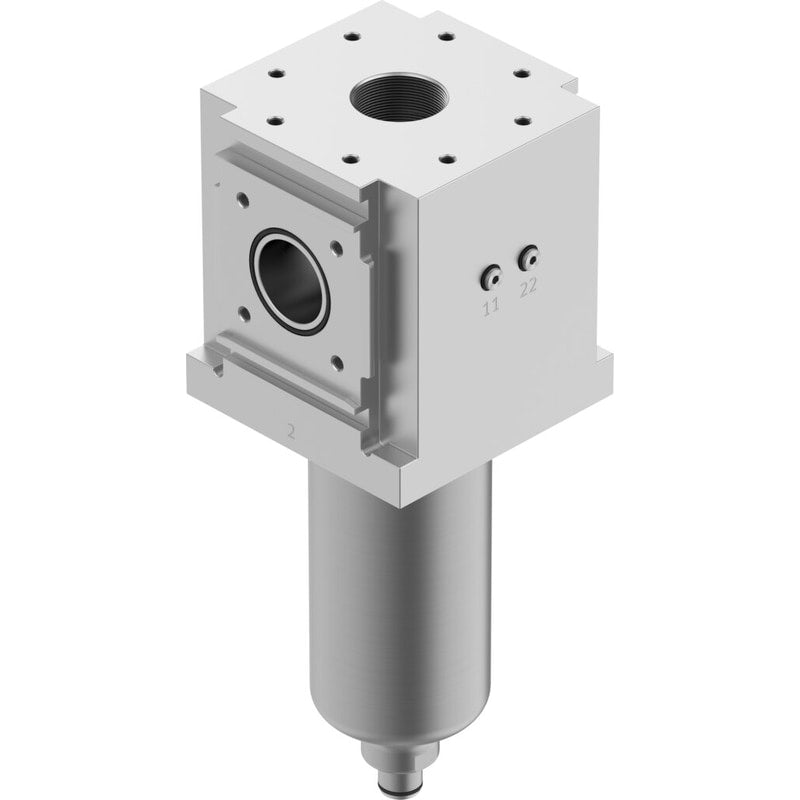

Micro filter
PFML-186-HP3-AST
1364705
GTIN 4052568263003
Vendor Festo
- Max. standard flow rate for air quality class
- 10220 l/min
- Ambient temperature
- 5 °C - 60 °C
- Operating pressure
- 0 bar - 50 bar
- Grade of filtration
- 0.01 µm
Regular price
$5,674.52
Unit price
PFML-186-HP3-AST is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
PFML-186-HP3-AST
Regular price
$5,674.52
Unit price
PFML-186-HP3-AST is backordered and will ship as soon as it is back in stock.
| Series | L |
|---|---|
| Size | 186 |
| Type code | PFML |
| Design | Fiber filter |
| Grade of filtration | 0.01 µm |
| Condensate drain | Manual |
| Symbol | 991519 |
| Operating pressure | 0 bar ... 50 bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [2:4:4]Inert gas |
| Information on operating and pilot media | Operation with oil lubrication not possible |
| Air quality class at the output | Compressed air as per ISO 8573-1:2010 [1:4:2] |
| Max. standard flow rate for air quality class | 10220 l/min |
| Min. standard flow rate for air quality class | 3406 l/min |
| Filter efficiency | 0.9999998 |
| Max. condensate volume | 200 ml |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Temperature of medium | 5 °C ... 60 °C |
| Ambient temperature | 5 °C ... 60 °C |
| Storage temperature | -10 °C ... 60 °C |
| CE marking (see declaration of conformity) | as per EU pressure equipment directive |
| Type of mounting | Line installation |
| Mounting position | Vertical +/- 5° |
| Housing material | Wrought aluminum alloy |
| Material of bowl | High-alloy stainless steel |
| Seals material | NBR |
| Note on materials | RoHS-compliantContains paint-wetting impairment substances |
| Product weight | 17900 g |
| Volume | 3 |
| For use in the food industry | See supplementary material information |
