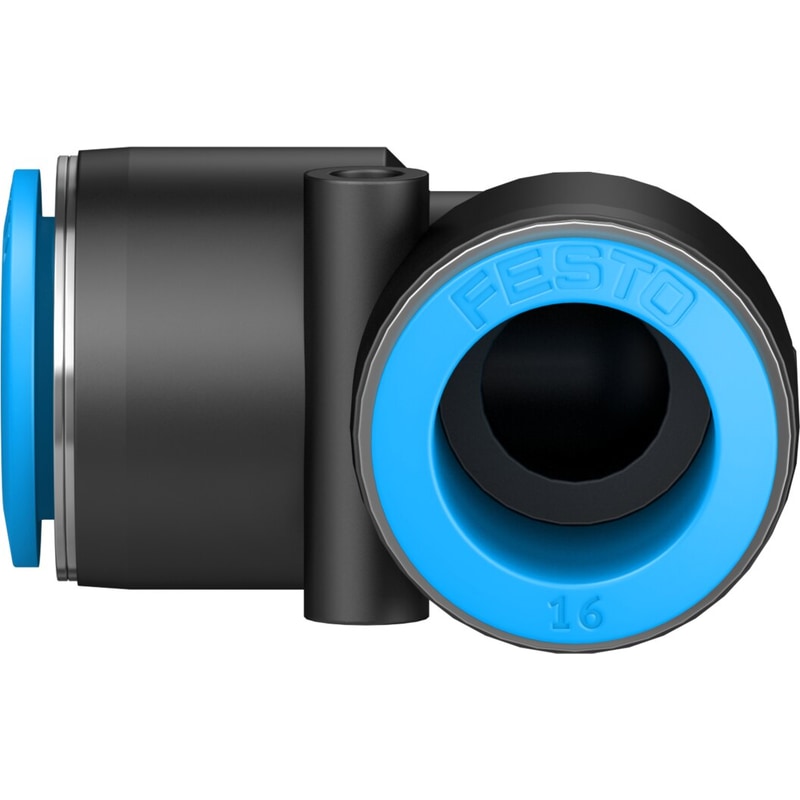

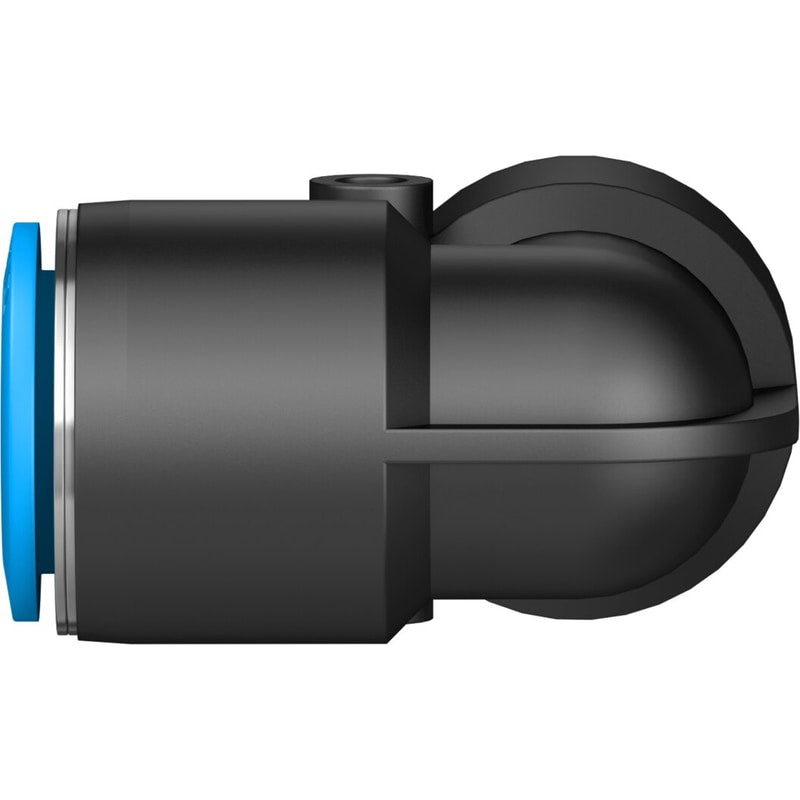

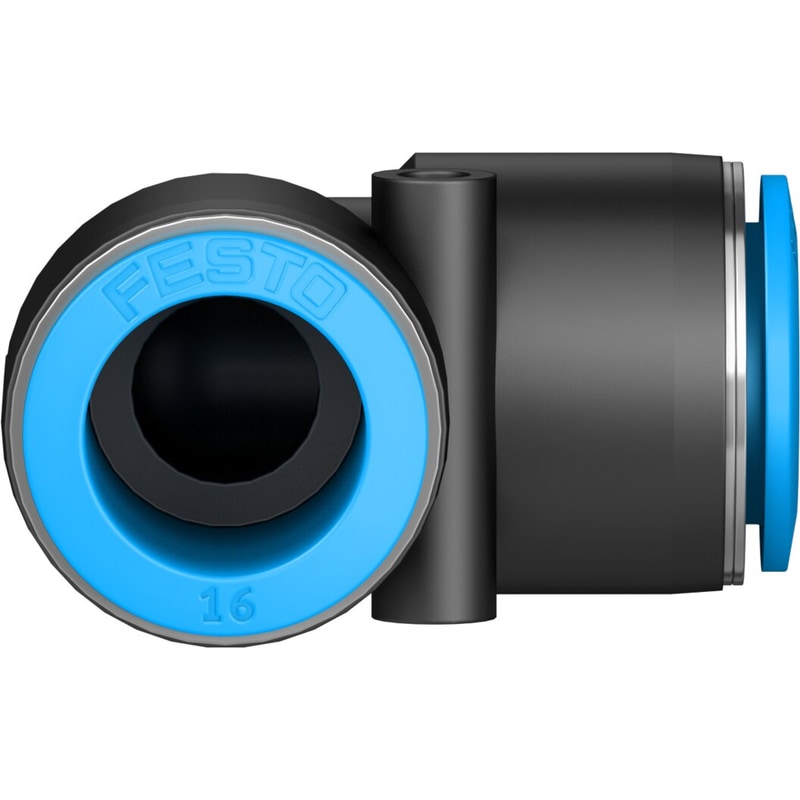

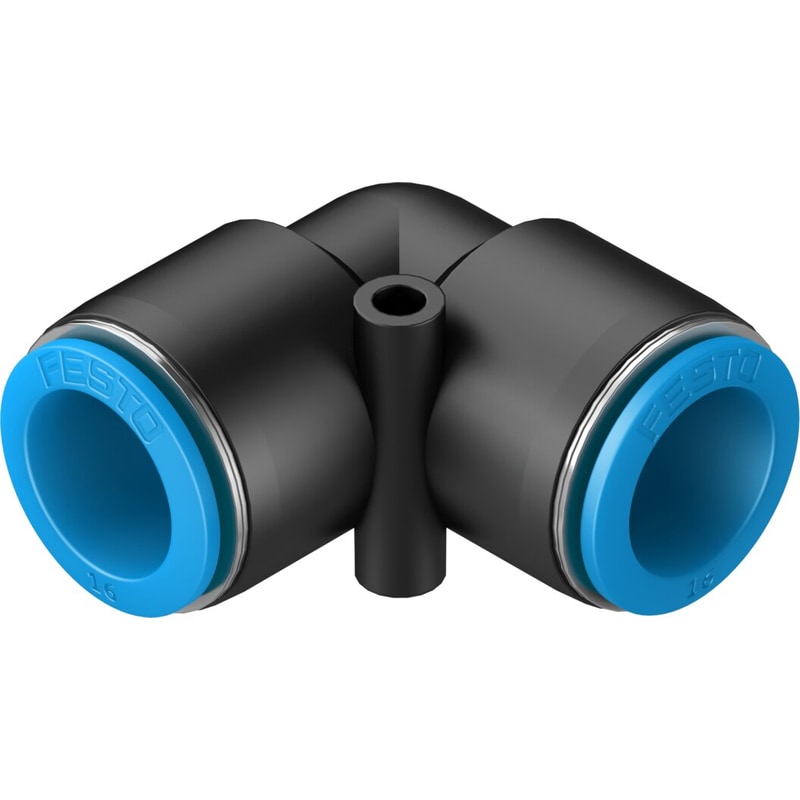

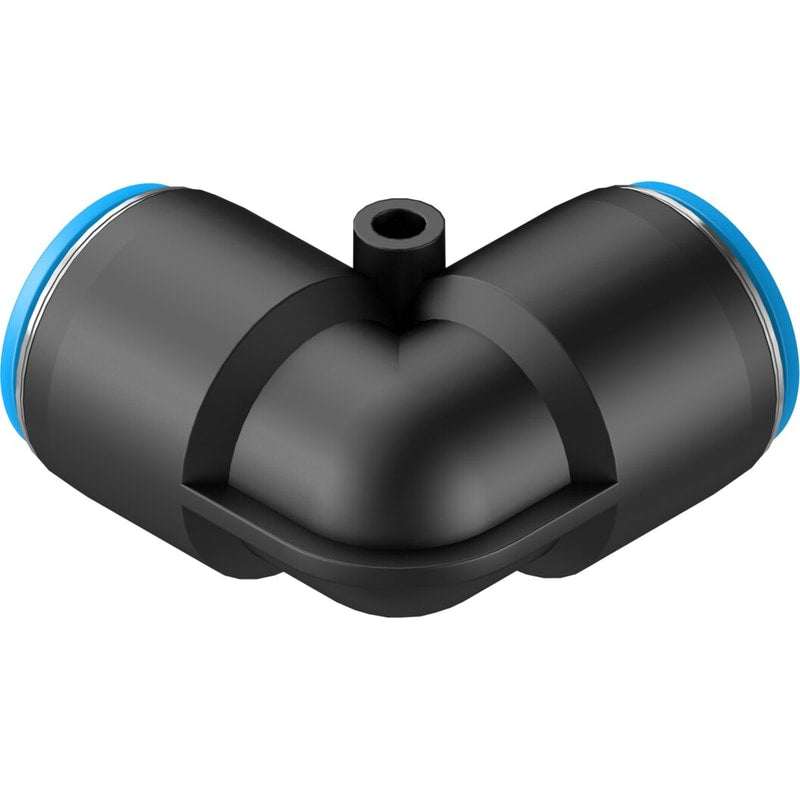

Push-in L-connector
QSL-16-20
133194
GTIN 4052568259372
Vendor Festo
- Pneumatic connection 1
- for pneumatic tubing outside diameter 16 mm
- Pneumatic connection 2
- for pneumatic tubing outside diameter 16 mm
- Temperature-dependent operating pressure
- -0.95 bar - 14 bar
- Ambient temperature
- -10 °C - 80 °C
- Nominal width
- 13 mm
Regular price
$7.93
Unit price
QSL-16-20 Push-in L-connector is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
QSL-16-20
Regular price
$7.93
Unit price
QSL-16-20 Push-in L-connector is backordered and will ship as soon as it is back in stock.
push-in L-connector QSL-16-20 Size=Standard, Nominal size=10,8 mm, Type of seal on screw-in stud=coating, Assembly position=Any, Container size=20
| Fitting Type | Union Elbow |
|---|---|
| Size | Standard |
| Nominal size | 10.8 mm |
| Type of seal on screw-in stud | coating |
| Assembly position | Any |
| Container size | 20 |
| Design structure | Push/pull principle |
| Operating pressure complete temperature range | '-0.95 ... 6 bar |
| Temperature dependent operating pressure | '-0.95 ... 14 bar |
| Corrosion resistance classification CRC | 1 - Low corrosion stress |
| Ambient temperature | '-10 ... 80 °C |
| Maritime classification | see certificate |
| Product weight | 31 g |
| connection 1 | 16mm outside diameter, for tubing |
| connection 2 | For tubing outside diameter 16 mm |
| Colour of release ring | blue |
| Materials note | Conforms to RoHS |
| Material housing | PBT |
| Material release ring | POM |
| Material of tubing seal | NBR |
