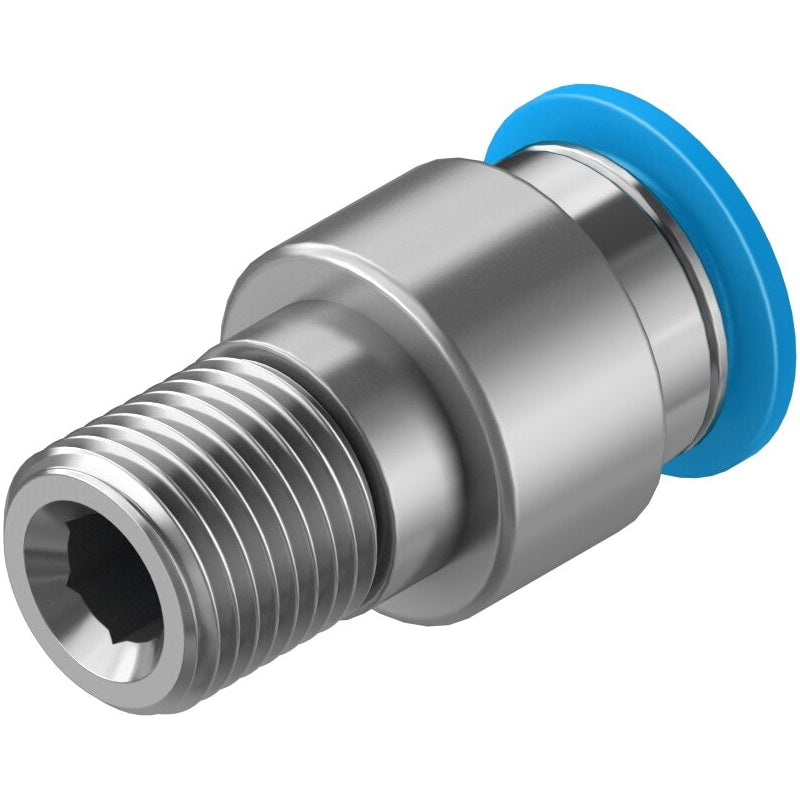

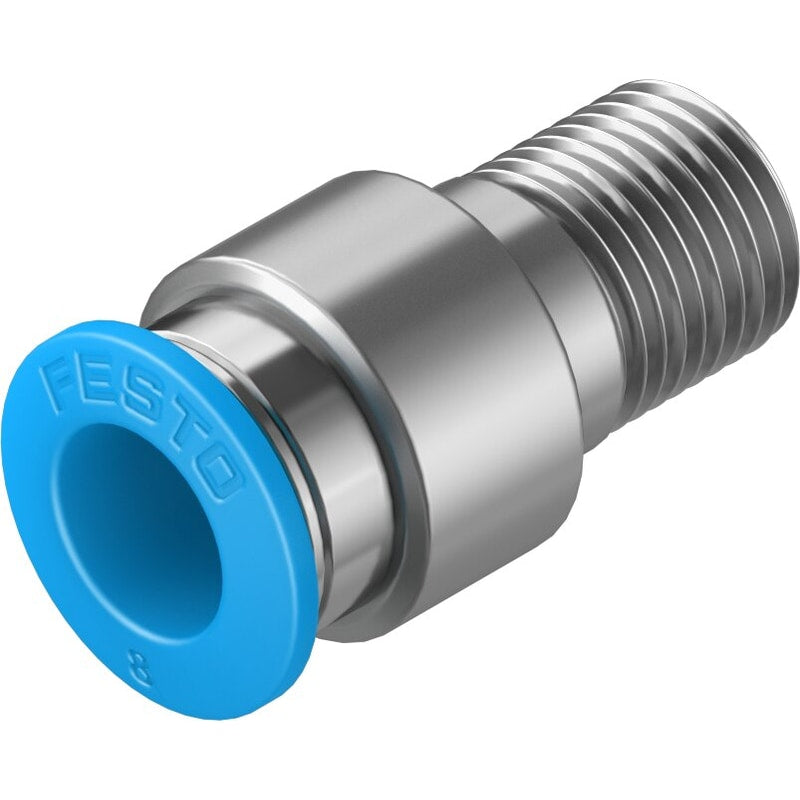

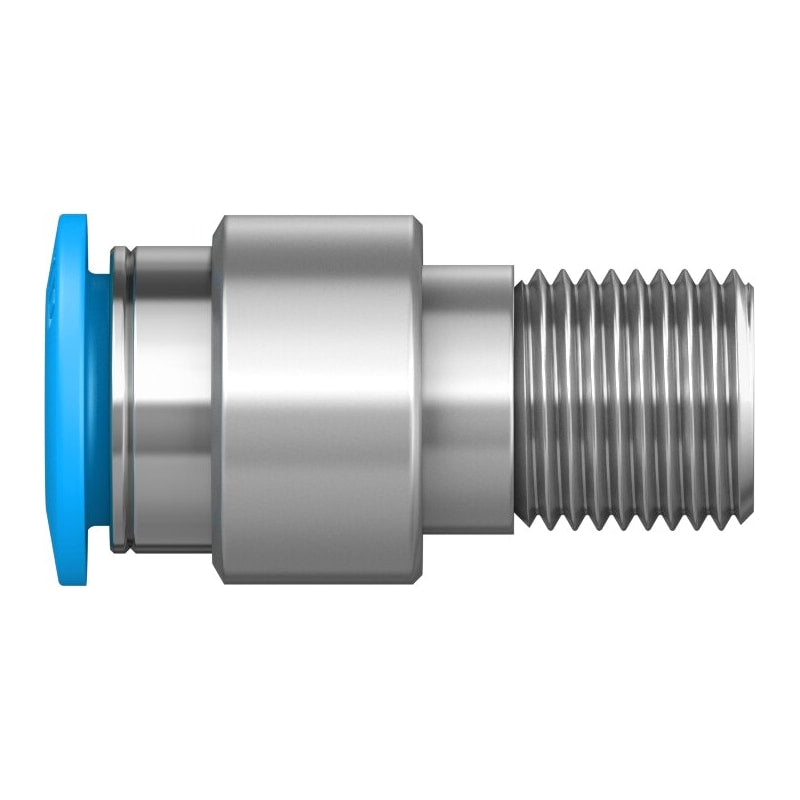

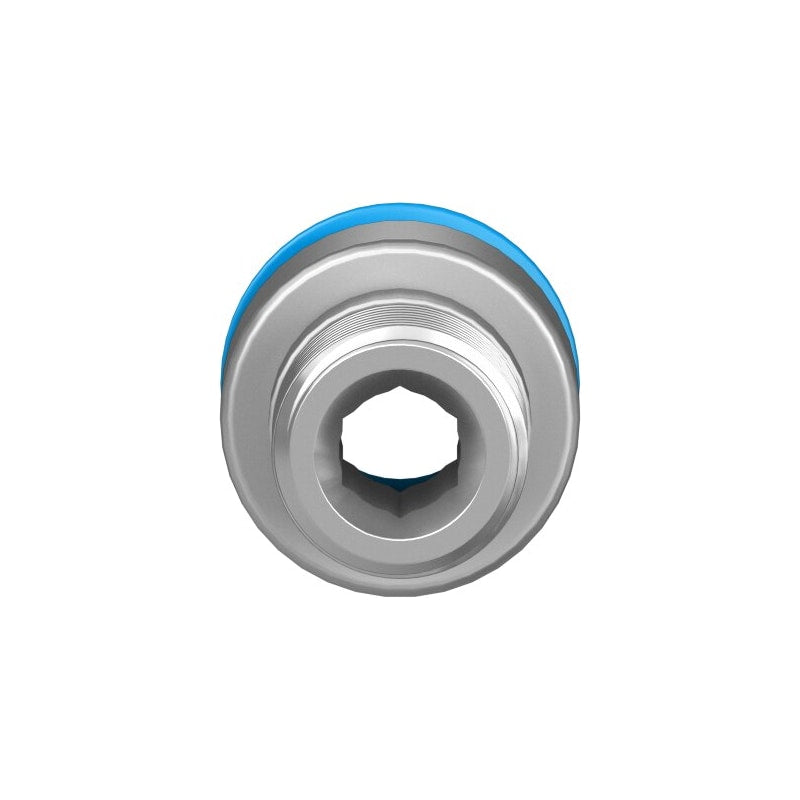

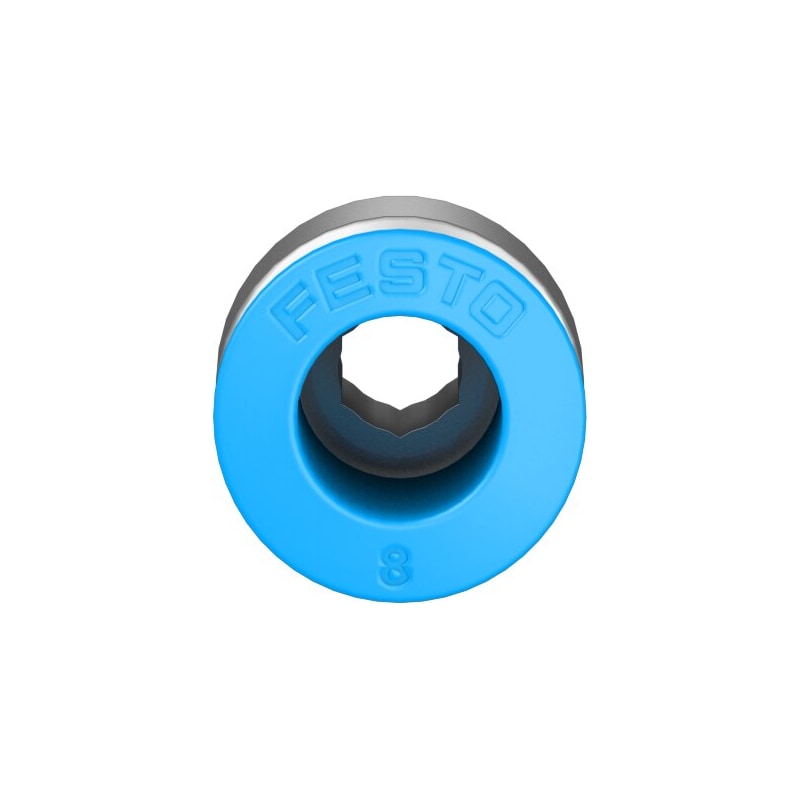

Push-in fitting
QS-1/8-8-I-50
133187
GTIN 4052568259303
Vendor Festo
- Pneumatic connection 1
- External thread R1/8
- Pneumatic connection 2
- for pneumatic tubing outside diameter 8 mm
- Temperature-dependent operating pressure
- -0.95 bar - 14 bar
- Ambient temperature
- -10 °C - 80 °C
- Nominal width
- 5.3 mm
Regular price
$2.15
Unit price
QS-1/8-8-I-50 Push-in fitting is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
QS-1/8-8-I-50
Regular price
$2.15
Unit price
QS-1/8-8-I-50 Push-in fitting is backordered and will ship as soon as it is back in stock.
push-in fitting QS-1/8-8-I-50 Size=Standard, Nominal size=5,3 mm, Type of seal on screw-in stud=coating, Assembly position=Any, Container size=50
| Fitting Type | Male Straight |
|---|---|
| Size | Standard |
| Nominal size | 5.3 mm |
| Type of seal on screw-in stud | coating |
| Assembly position | Any |
| Container size | 50 |
| Design structure | Push/pull principle |
| Operating pressure complete temperature range | '-0.95 ... 6 bar |
| Temperature dependent operating pressure | '-0.95 ... 14 bar |
| Corrosion resistance classification CRC | 1 - Low corrosion stress |
| Ambient temperature | '-10 ... 80 °C |
| Maritime classification | see certificate |
| Product weight | 8.8 g |
| connection 1 | Male thread R1/8 |
| connection 2 | For tubing outside diameter 8 mm |
| Colour of release ring | blue |
| Materials note | Conforms to RoHS |
| Material housing | BrassNickel plated |
| Material release ring | POM |
| Material of tubing seal | NBR |
