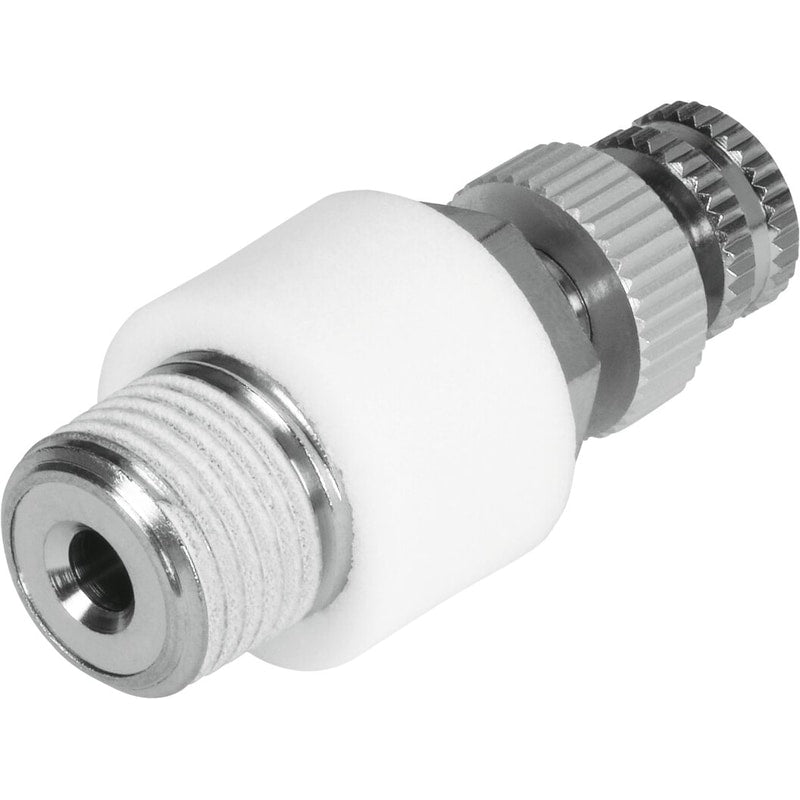

Flow control/muffler
VFFK-C-K-R14-P
133143
GTIN 4052568030230
Vendor Festo
- Valve function
- Sound pressure flow control function
- Standard flow rate 6->0 bar
- 0 l/min - 420 l/min
- Pneumatic connection 1
- R1/4
- Operating pressure
- 0 bar - 10 bar
- Adjusting element
- Knurled screw
Regular price
$34.22
Unit price
VFFK-C-K-R14-P is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VFFK-C-K-R14-P
Regular price
$34.22
Unit price
VFFK-C-K-R14-P is backordered and will ship as soon as it is back in stock.
| Type code | VFFK |
|---|---|
| Valve function | Sound pressure flow control function |
| Selection of additional function | With pneumatic muffler |
| Pneumatic connection 1 | R1/4 |
| Adjusting element | Knurled screw |
| Type of mounting | Screw-in |
| Standard flow rate 6->0 bar | 0 l/min ... 420 l/min |
| Operating pressure | 0 bar ... 10 bar |
| Ambient temperature | 0 °C ... 60 °C |
| Type of seal on screwed trunnion | Coating |
| Mounting position | Any |
| Symbol | 991451 |
| Operating pressure for entire temperature range | 0 bar ... 10 bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible |
| Temperature of medium | 0 °C ... 60 °C |
| Product weight | 25 g |
| Cushioning insert material | PE |
| Material of screwed trunnion | Brass, nickel-plated |
| Note on materials | RoHS-compliant |
| Material of adjusting screw | Brass, nickel-plated |
