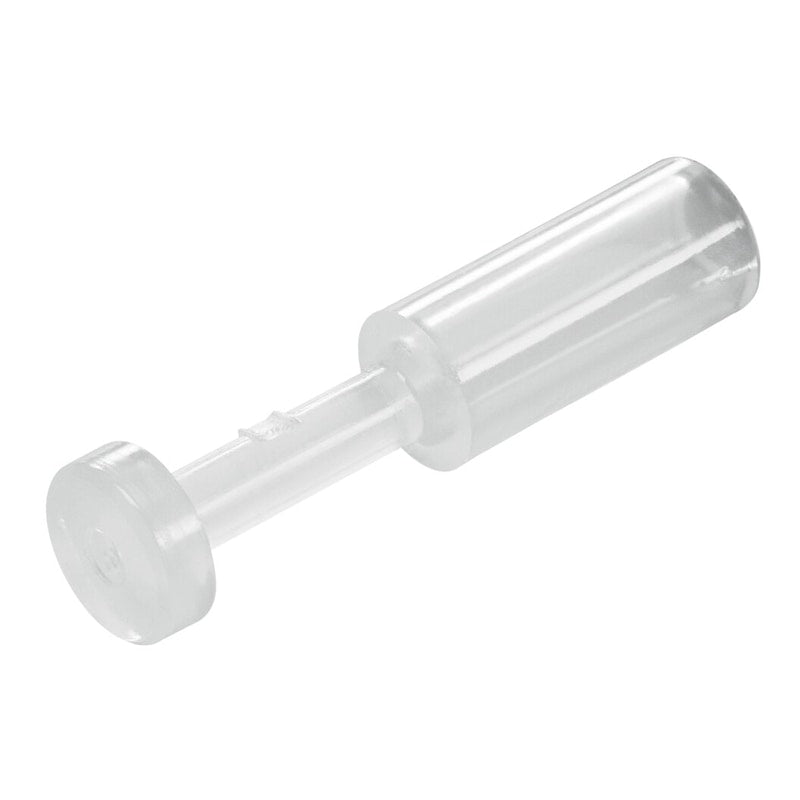

Blanking plug
NPQP-P-S10-FD-P10
133131
GTIN 4052568030117
Vendor Festo
- Pneumatic connection 1
- Push-in sleeve Ø 10 mm
- Temperature-dependent operating pressure
- -0.95 bar - 10 bar
- Ambient temperature
- -20 °C - 60 °C
Regular price
$7.08
Unit price
NPQP-P-S10-FD-P10 Blanking plug is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
NPQP-P-S10-FD-P10
Regular price
$7.08
Unit price
NPQP-P-S10-FD-P10 Blanking plug is backordered and will ship as soon as it is back in stock.
blanking plug NPQP-P-S10-FD-P10 Size=Standard, Container size=10, Design structure=Push/pull principle, Temperature dependent operating pressure=-0,95 - 10 bar, Operating medium=Compressed air in accordance with ISO8573-1:2010 [7:-:-]
| Fitting Type | Push-in Plug |
|---|---|
| Size | Standard |
| Container size | 10 |
| Design structure | Push/pull principle |
| Temperature dependent operating pressure | '-0.95 ... 10 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance classification CRC | 4 - Very high corrosion stress |
| Food-safe | See Supplementary material information |
| Ambient temperature | '-20 ... 60 °C |
| Product weight | 2 g |
| connection 1 | Push-in sleeve QS-10 |
| Materials note | Contains PWIS substancesConforms to RoHS |
| Material housing | PP |
| Material of tube retaining claw | High alloy steel, non-corrosive |
