Push-in bulkhead connector

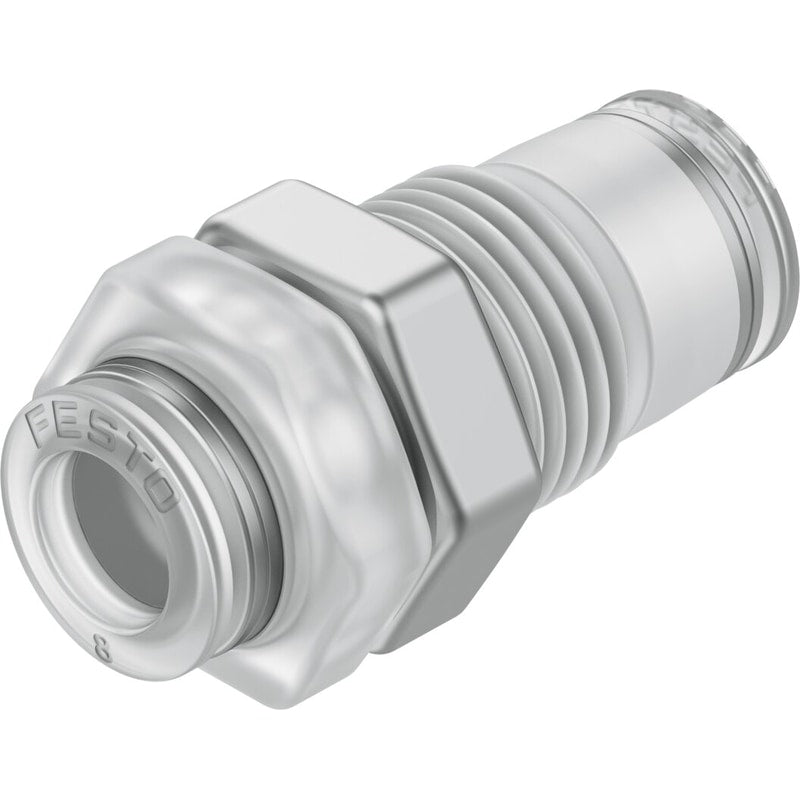

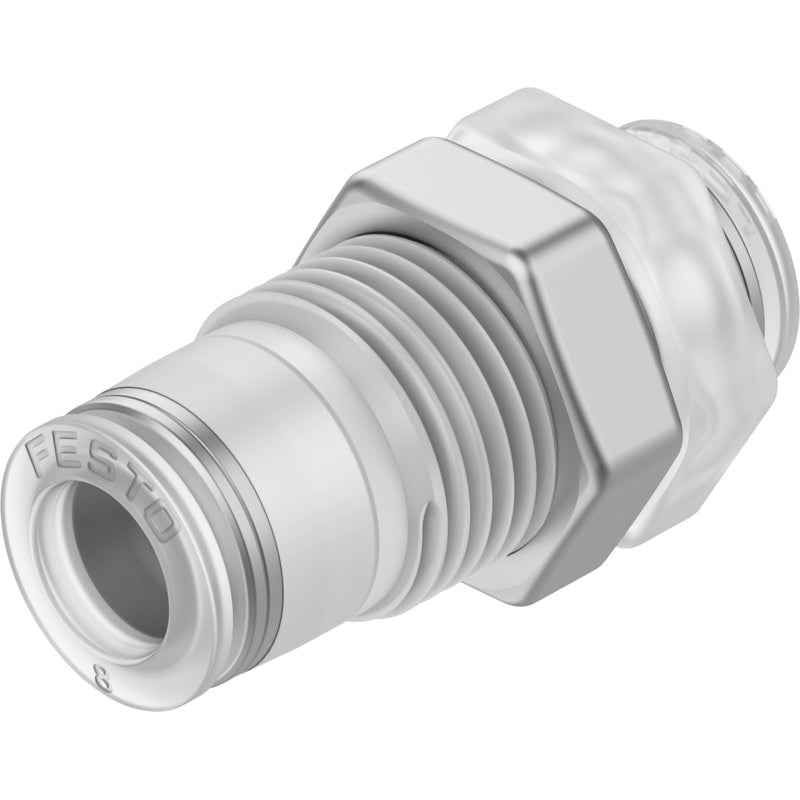

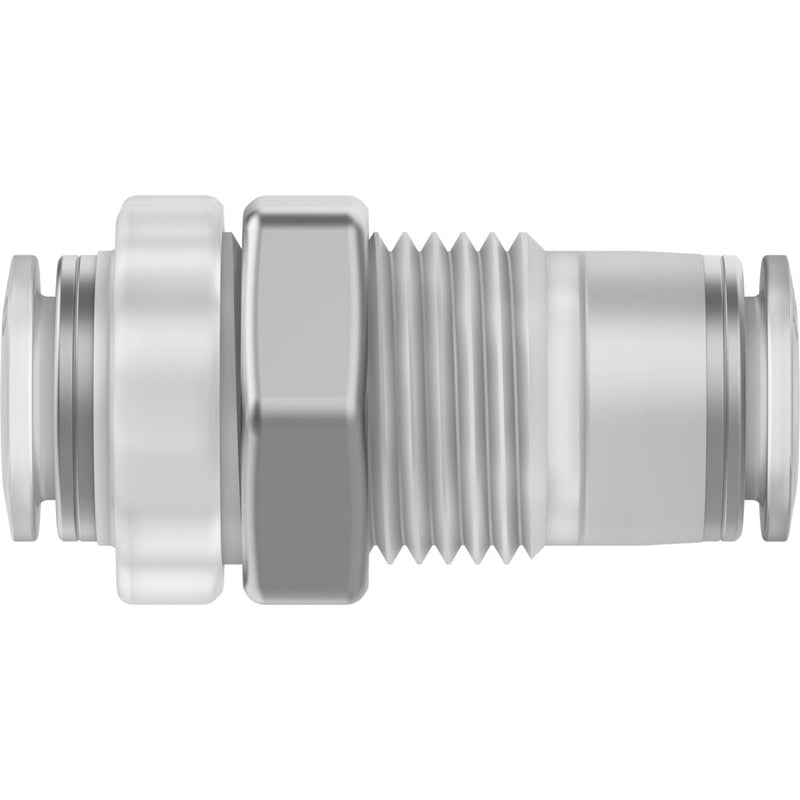

NPQP-H-Q8-E-FD push-in bulkhead connector
133102
GTIN 4052568068639
Vendor Festo
- Pneumatic connection 1
- for pneumatic tubing outside diameter 8 mm
- Pneumatic connection 2
- for pneumatic tubing outside diameter 8 mm
- Temperature-dependent operating pressure
- -0.95 bar - 10 bar
- Ambient temperature
- -20 °C - 60 °C
- Nominal width
- 4.9 mm
Regular price
$46.39
Unit price
NPQP-H-Q8-E-FD push-in bulkhead connector is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
NPQP-H-Q8-E-FD push-in bulkhead connector
Regular price
$46.39
Unit price
NPQP-H-Q8-E-FD push-in bulkhead connector is backordered and will ship as soon as it is back in stock.
push-in bulkhead connector NPQP-H-Q8-E-FD Size=Standard, Nominal size=4,9 mm, Container size=1, Design structure=Push/pull principle, Temperature dependent operating pressure=-0,95 - 10 bar
| Fitting Type | Bulkhead Union |
|---|---|
| Size | Standard |
| Nominal size | 4.9 mm |
| Container size | 1 |
| Design structure | Push/pull principle |
| Temperature dependent operating pressure | '-0.95 ... 10 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance classification CRC | 4 - Very high corrosion stress |
| Food-safe | See Supplementary material information |
| Ambient temperature | '-20 ... 60 °C |
| Product weight | 14.3 g |
| connection 1 | 8mm outside diameter, for tubing |
| connection 2 | For tubing outside diameter 8 mm |
| Materials note | Contains PWIS substancesConforms to RoHS |
| Material housing | PP |
| Material nut | High alloy steel, non-corrosive |
| Material of tube retaining claw | High alloy steel, non-corrosive |
