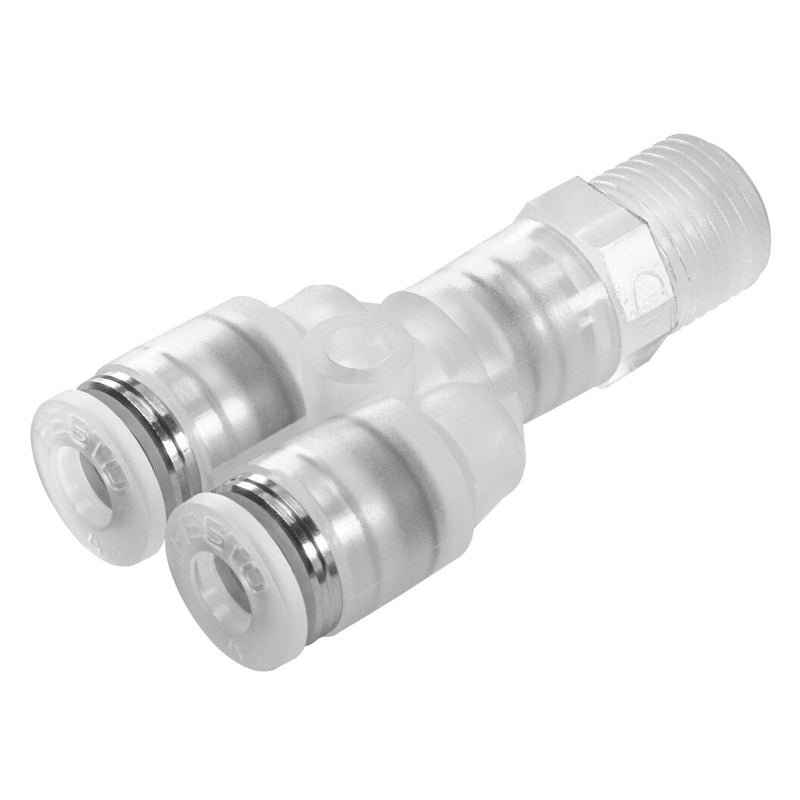

Push-in Y-fitting
NPQP-Y-R38-Q12-FD-P10
133089
GTIN 4052568029722
Vendor Festo
- Pneumatic connection 1
- External thread R3/8
- Pneumatic connection 2
- for pneumatic tubing outside diameter 12 mm
- Temperature-dependent operating pressure
- -0.95 bar - 10 bar
- Ambient temperature
- -20 °C - 60 °C
- Nominal width
- 6.2 mm
Regular price
$44.74
Unit price
NPQP-Y-R38-Q12-FD-P10 Push-in Y-fitting is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
NPQP-Y-R38-Q12-FD-P10
Regular price
$44.74
Unit price
NPQP-Y-R38-Q12-FD-P10 Push-in Y-fitting is backordered and will ship as soon as it is back in stock.
push-in Y-fitting NPQP-Y-R38-Q12-FD-P10 Size=Standard, Nominal size=6,2 mm, Container size=10, Design structure=Push/pull principle, Temperature dependent operating pressure=-0,95 - 10 bar
| Fitting Type | Male Y |
|---|---|
| Size | Standard |
| Nominal size | 6.2 mm |
| Container size | 10 |
| Design structure | Push/pull principle |
| Temperature dependent operating pressure | '-0.95 ... 10 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance classification CRC | 4 - Very high corrosion stress |
| Food-safe | See Supplementary material information |
| Ambient temperature | '-20 ... 60 °C |
| Product weight | 28 g |
| connection 1 | R3/8 |
| connection 2 | 12mm outside diameter, for tubing |
| Materials note | Contains PWIS substancesConforms to RoHS |
| Material housing | PP |
| Material of tube retaining claw | High alloy steel, non-corrosive |
