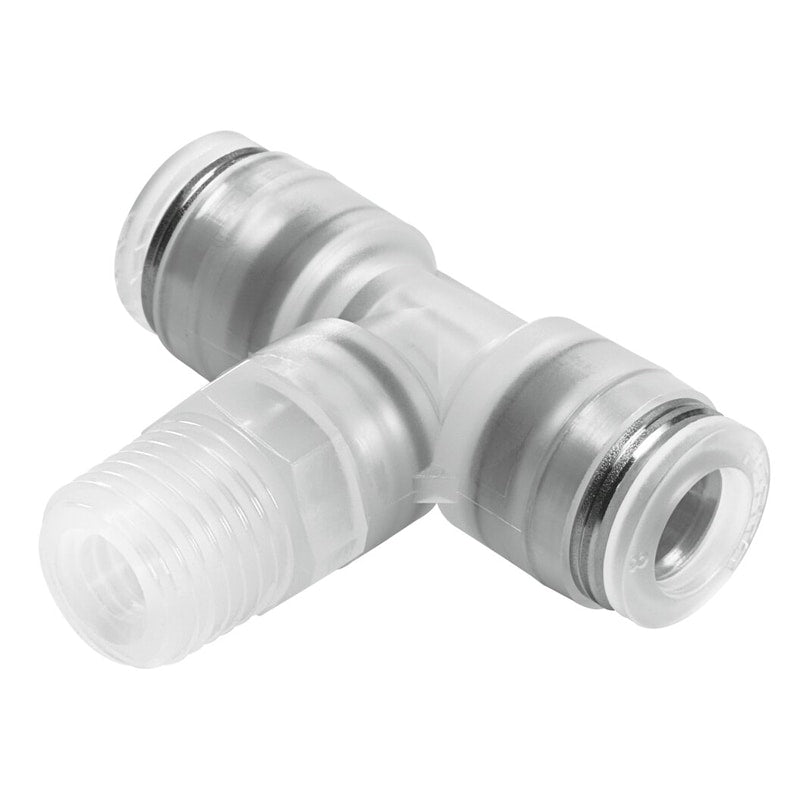

Push-in T-fitting
NPQP-T-R12-Q12-FD push-in T-fitting
133080
GTIN 4052568029630
Vendor Festo
- Pneumatic connection 1
- External thread R1/2
- Pneumatic connection 2
- for pneumatic tubing outside diameter 12 mm
- Temperature-dependent operating pressure
- -0.95 bar - 10 bar
- Ambient temperature
- -20 °C - 60 °C
- Nominal width
- 6.9 mm
Regular price
$39.59
Unit price
NPQP-T-R12-Q12-FD push-in T-fitting is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
NPQP-T-R12-Q12-FD push-in T-fitting
Regular price
$39.59
Unit price
NPQP-T-R12-Q12-FD push-in T-fitting is backordered and will ship as soon as it is back in stock.
push-in T-fitting NPQP-T-R12-Q12-FD Size=Standard, Nominal size=6,9 mm, Container size=1, Design structure=Push/pull principle, Temperature dependent operating pressure=-0,95 - 10 bar
| Fitting Type | Branch Tee |
|---|---|
| Size | Standard |
| Nominal size | 6.9 mm |
| Container size | 1 |
| Design structure | Push/pull principle |
| Temperature dependent operating pressure | '-0.95 ... 10 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance classification CRC | 4 - Very high corrosion stress |
| Food-safe | See Supplementary material information |
| Ambient temperature | '-20 ... 60 °C |
| Product weight | 28 g |
| connection 1 | R1/2 |
| connection 2 | 12mm outside diameter, for tubing |
| Materials note | Contains PWIS substancesConforms to RoHS |
| Material housing | PP |
| Material of tube retaining claw | High alloy steel, non-corrosive |
