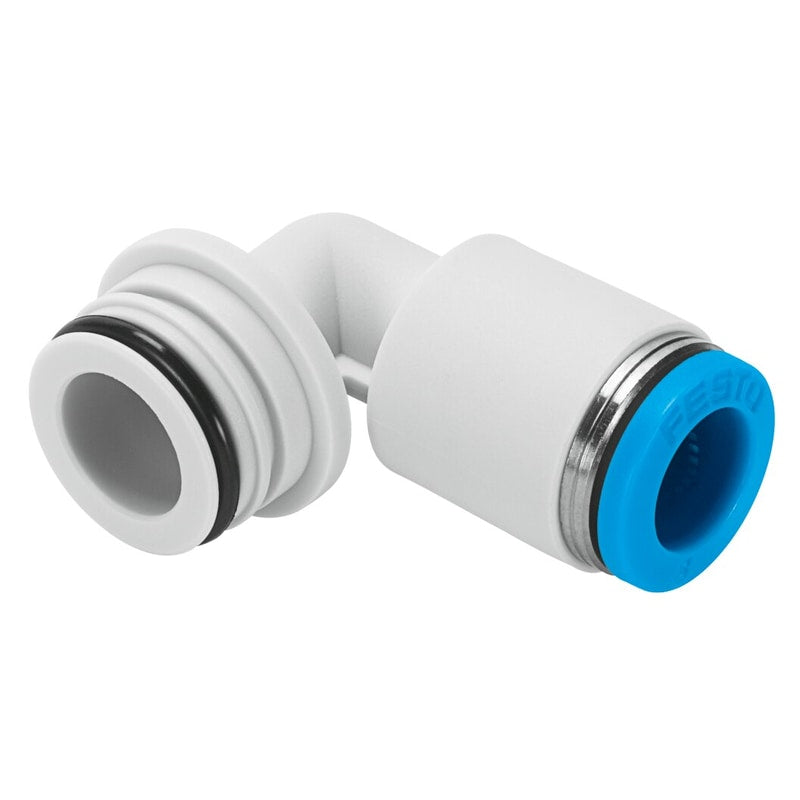

Cartridge
QSPLKG18-10
132947
GTIN 4052568028794
Vendor Festo
- Pneumatic connection 1
- Cartridge 18 mm
- Pneumatic connection 2
- for pneumatic tubing outside diameter 10 mm
- Ambient temperature
- -5 °C - 60 °C
- Nominal width
- 6.7 mm
Regular price
$3.87
Unit price
QSPLKG18-10 Cartridge is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
QSPLKG18-10
Regular price
$3.87
Unit price
QSPLKG18-10 Cartridge is backordered and will ship as soon as it is back in stock.
cartridge QSPLKG18-10 With push-in connector, L-form Size=Standard, Nominal size=6,7 mm, Type of seal on screw-in stud=O-ring, Assembly position=Any, Container size=10
| Fitting Type | n/a |
|---|---|
| Size | Standard |
| Nominal size | 6.7 mm |
| Type of seal on screw-in stud | O-ring |
| Assembly position | Any |
| Container size | 10 |
| Design structure | Push/pull principle |
| Operating pressure complete temperature range | '-0.95 ... 10 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance classification CRC | 1 - Low corrosion stress |
| Ambient temperature | '-5 ... 60 °C |
| Maritime classification | see certificate |
| Product weight | 10.8 g |
| connection 1 | Cartridge 18 mm |
| connection 2 | For tubing outside diameter 10 mm |
| Colour of release ring | blue |
| Materials note | Conforms to RoHS |
| Material housing | PA-reinforced |
| Material release ring | POM |
