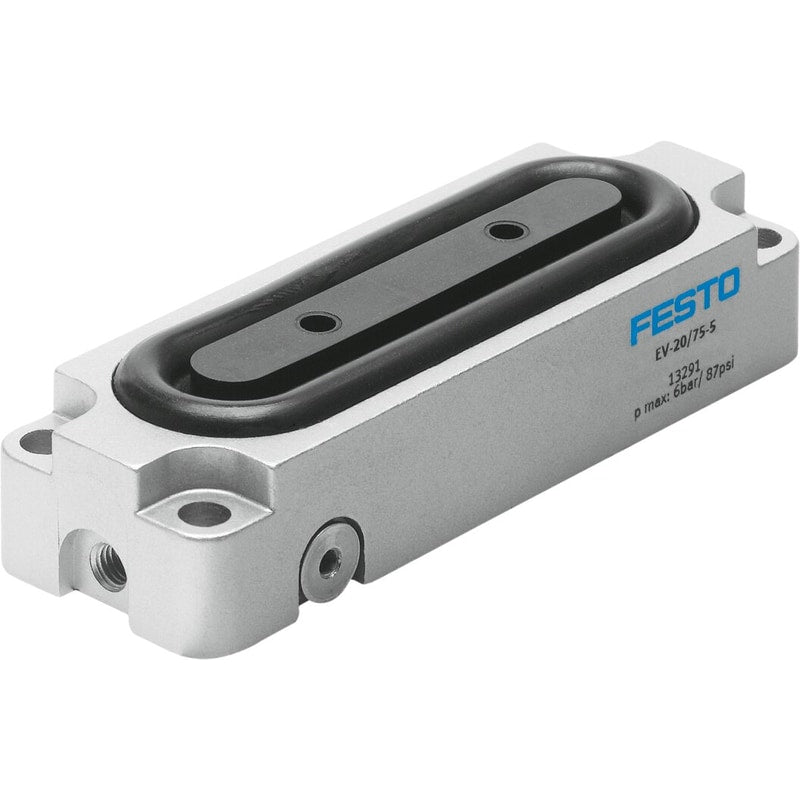

Clamping module
EV-20/75-5
13291
GTIN 4052568066024
Vendor Festo
- Clamping area
- 20x75
- Stroke
- 5 mm
Regular price
$105.28
Unit price
EV-20/75-5 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
EV-20/75-5
Regular price
$105.28
Unit price
EV-20/75-5 is backordered and will ship as soon as it is back in stock.
clamping module EV-20/75-5 With reset function Stroke=5 mm, Clamping surface=20x75, Assembly position=Any, Mode of operation=single-acting, Operating pressure=2 - 6 bar
| Stroke | 5 mm |
|---|---|
| Clamping surface | 20x75 |
| Assembly position | Any |
| Mode of operation | single-acting |
| Operating pressure | 2 ... 6 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Ambient temperature | '-20 ... 40 °C |
| Product weight | 130 g |
| Mounting type | with through hole |
| Pneumatic connection | M5 |
| Materials note | Free of copper and PTFE |
| Material housing | Aluminium die cast |
| Material membrane | TPE-U(PU) |
