Push-in L-connector

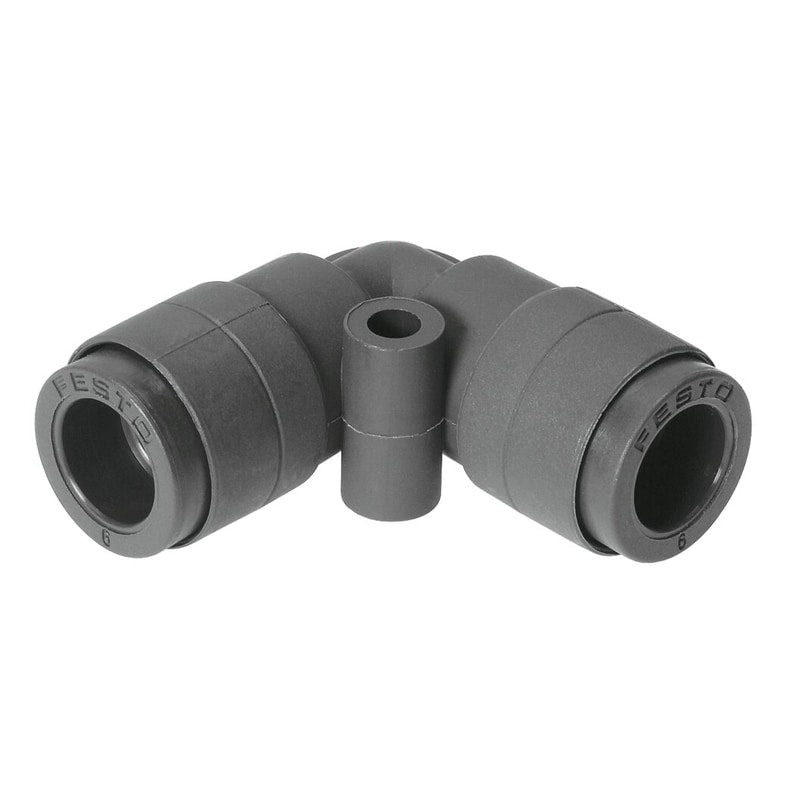

QSL-V0-4 push-in L-connector
132893
GTIN 4052568028459
Vendor Festo
- Pneumatic connection 1
- for pneumatic tubing outside diameter 4 mm
- Pneumatic connection 2
- for pneumatic tubing outside diameter 4 mm
- Ambient temperature
- 0 °C - 60 °C
- Nominal width
- 2.8 mm
- Operating pressure for entire temperature range
- -0.95 bar - 10 bar
Regular price
$12.82
Unit price
QSL-V0-4 push-in L-connector is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
QSL-V0-4 push-in L-connector
Regular price
$12.82
Unit price
QSL-V0-4 push-in L-connector is backordered and will ship as soon as it is back in stock.
push-in L-connector QSL-V0-4 Size=Standard, Nominal size=2,3 mm, Material fire test=(* UL94 V-0 (housing), * UL94 V-0 (releasing ring)), Design structure=Push/pull principle, Operating pressure complete temperature range=-0,95 - 10 bar
| Fitting Type | Union Elbow |
|---|---|
| Size | Standard |
| Nominal size | 2.3 mm |
| Material fire test | UL94 V-0 (housing)UL94 V-0 (releasing ring) |
| Design structure | Push/pull principle |
| Operating pressure complete temperature range | '-0.95 ... 10 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-]Water as per manufacturer's declaration at www.festo.com |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance classification CRC | 2 - Moderate corrosion stress |
| Ambient temperature | 0 ... 60 °C |
| Maritime classification | see certificate |
| Product weight | 6.4 g |
| connection 1 | 4mm outside diameter, for tubing |
| connection 2 | For tubing outside diameter 4 mm |
| Colour of release ring | Black |
| Materials note | Conforms to RoHS |
| Material housing | PBT-reinforced |
