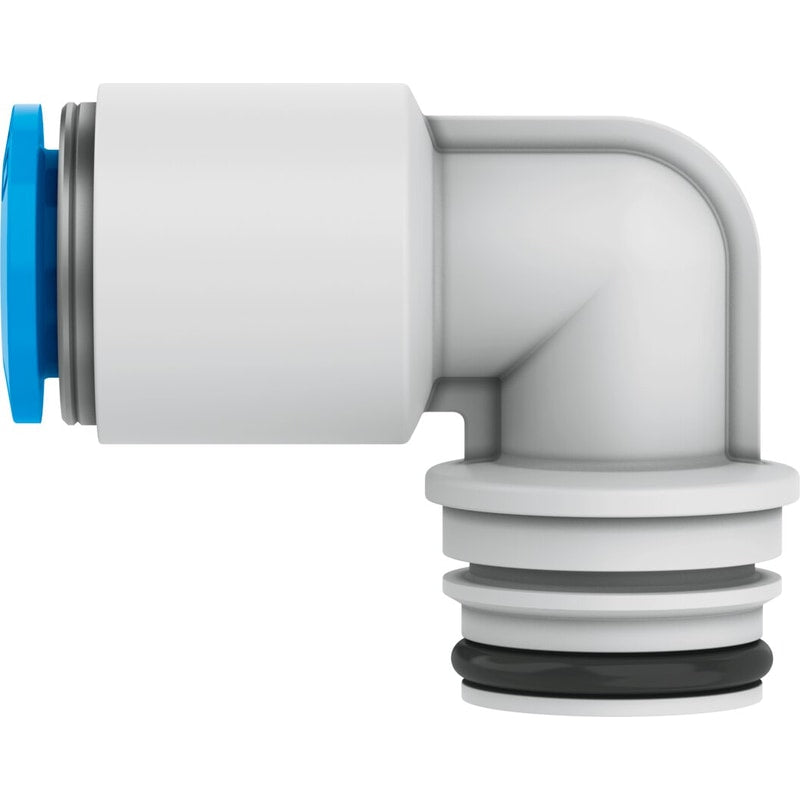

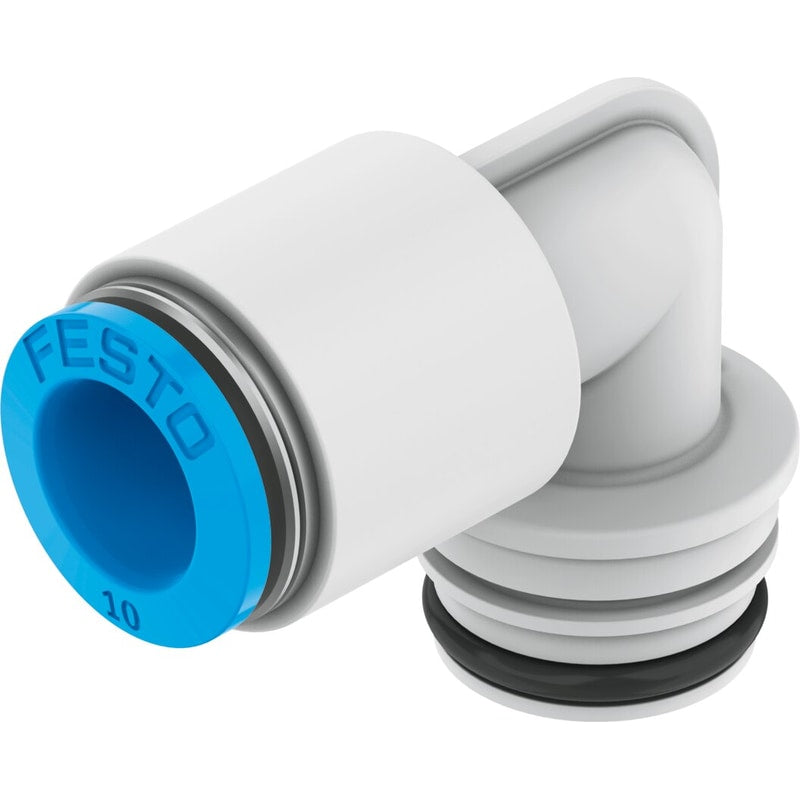

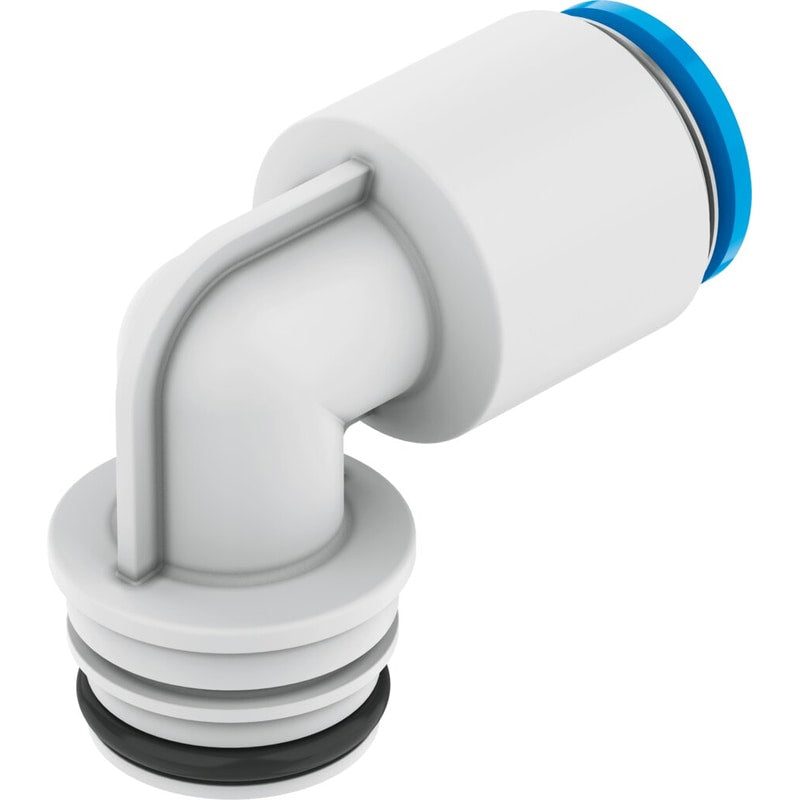

Cartridge
QSPLKG20-1/2-U
132860
GTIN 4052568028336
Vendor Festo
- Pneumatic connection 1
- Cartridge 20 mm
- Pneumatic connection 2
- for pneumatic tubing outside diameter 1/2"
- Operating pressure for entire temperature range
- -0.95 bar - 10 bar
- Ambient temperature
- -5 °C - 60 °C
- Nominal width
- 7.8 mm
Regular price
$4.34
Unit price
QSPLKG20-1/2-U Cartridge is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
QSPLKG20-1/2-U
Regular price
$4.34
Unit price
QSPLKG20-1/2-U Cartridge is backordered and will ship as soon as it is back in stock.
cartridge QSPLKG20-1/2-U With push-in connector, L-form Size=Standard, Nominal size=7,8 mm, Assembly position=Any, Container size=10, Design structure=Push/pull principle
| Fitting Type | n/a |
|---|---|
| Size | Standard |
| Nominal size | 7.8 mm |
| Assembly position | Any |
| Container size | 10 |
| Design structure | Push/pull principle |
| Operating pressure complete temperature range | '-0.95 ... 10 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance classification CRC | 1 - Low corrosion stress |
| Ambient temperature | '-5 ... 60 °C |
| Maritime classification | see certificate |
| Product weight | 17 g |
| connection 1 | QSP...20 |
| connection 2 | 1/2" outside diameter, for tubing |
| Colour of release ring | Grey |
| Materials note | Conforms to RoHS |
| Material housing | PA-reinforced |
| Material release ring | POM |
| Material of tubing seal | NBR |
