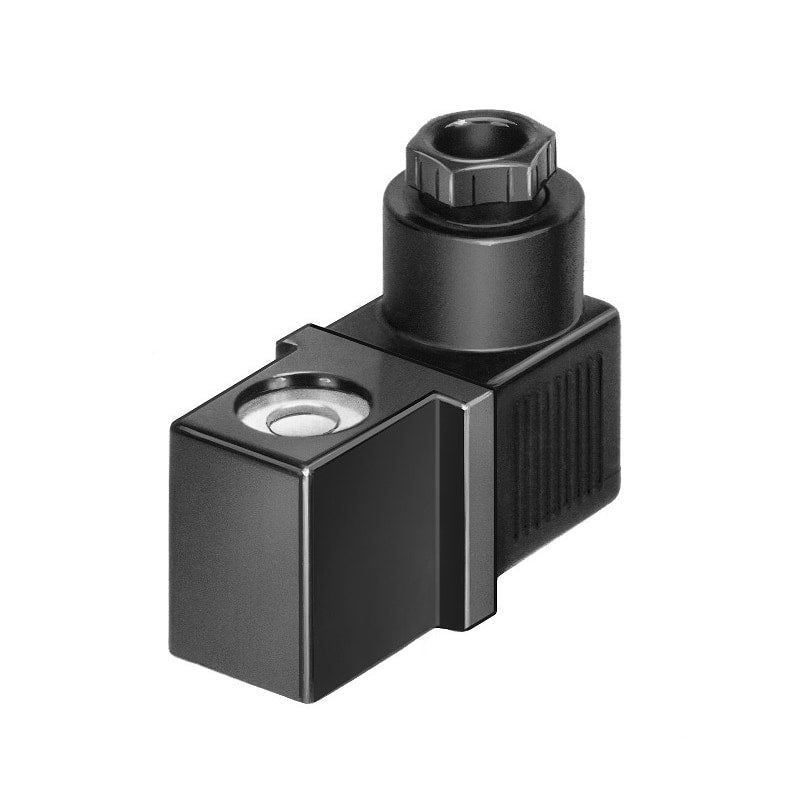

Solenoid coil
MSFG-24/42-50/60-DS
13264
GTIN 4052568065997
Vendor Festo
- Electrical connection
- Form A - as per DIN EN 175301-803
- Type of mounting
- With knurled nut
- Coil characteristics
- 24 V DC: 4.5 W - 42 V AC: 50/60 Hz, initial power 9.0 VA, holding power 7.0 VA
- Degree of protection
- IP65
Regular price
$43.88
Unit price
MSFG-24/42-50/60-DS is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
MSFG-24/42-50/60-DS
Regular price
$43.88
Unit price
MSFG-24/42-50/60-DS is backordered and will ship as soon as it is back in stock.
solenoid coil MSFG-24/42-50/60-DS For standard plug socket per DIN EN 175301 Assembly position=Any, Switching position indicator=No, Min. pickup time=10 ms, Duty cycle=100%, Power factor cos {phi}=0,7
| Assembly position | Any |
|---|---|
| Switching position indicator | No |
| Min. pickup time | 10 ms |
| Duty cycle | 1 |
| Power factor cos {phi} | 0.7 |
| Characteristic coil data | 24 V DC: 4.5 W42 V AC: 50/60 Hz, pick-up power 9 VA, holding power 7 VA |
| Permissible frequency fluctuation | '+/- 5 % |
| Permissible voltage fluctuation | '+/- 10 % |
| Protection class | IP65 |
| Ambient temperature | '-5 ... 40 °C |
| Maritime classification | see certificate |
| Max. tightening torque, plug socket | 0.4 Nm |
| Product weight | 55 g |
