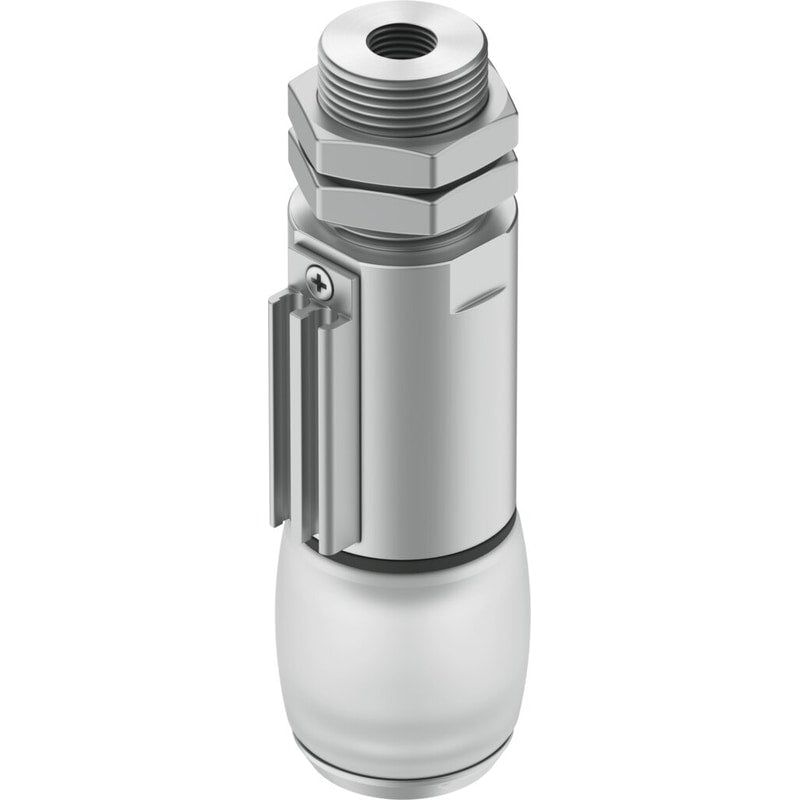

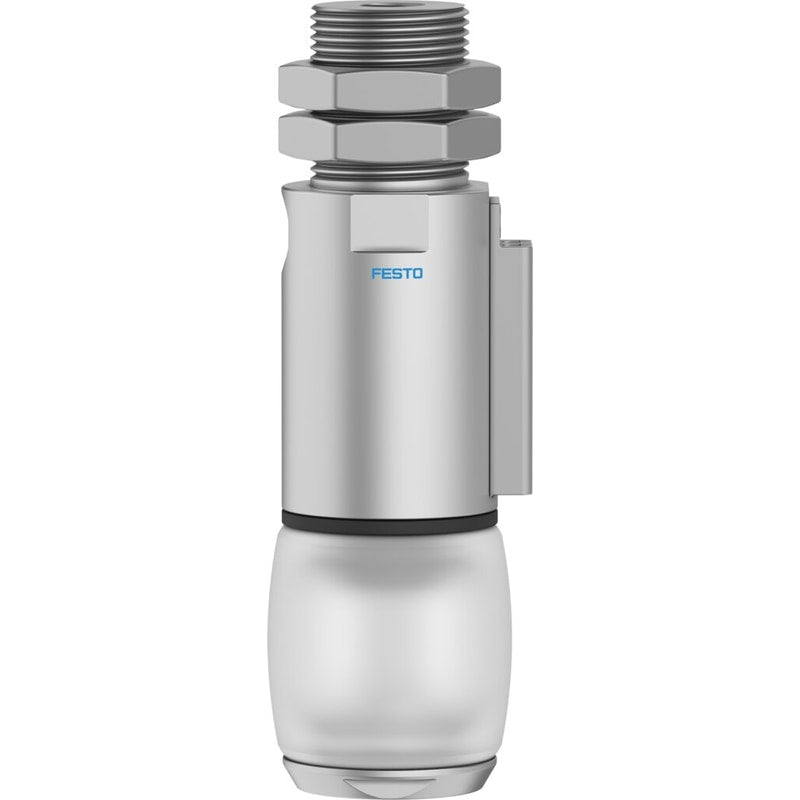

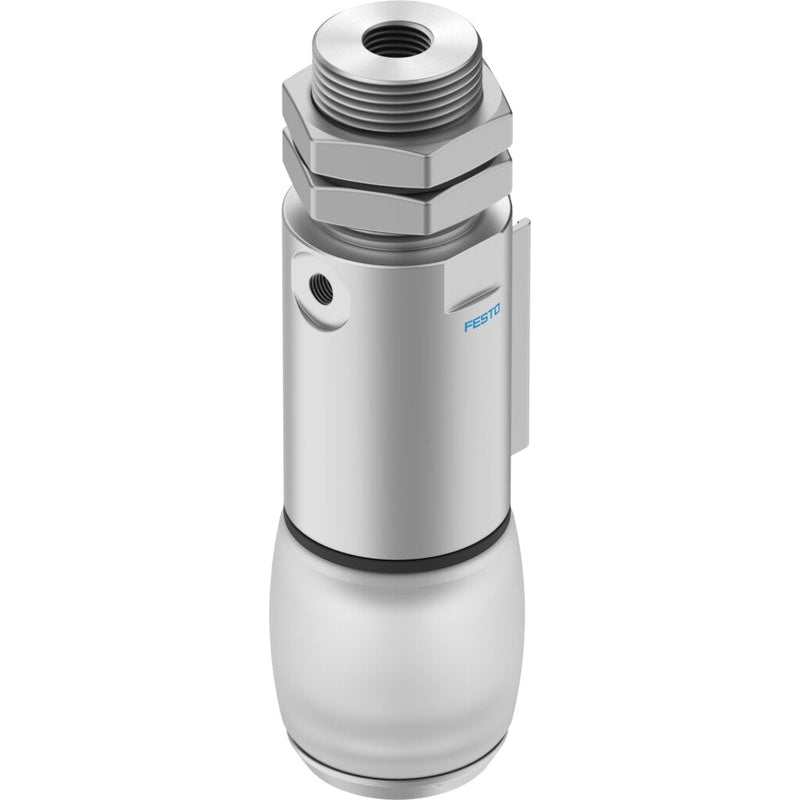

Bellows gripper
DHEB-33-E-D-S-P
1320783
GTIN 4052568230036
Vendor Festo
- Min. opening time at 6 bar
- 30 ms
- Min. closing time at 6 bar
- 60 ms
- Min. diameter to be gripped
- 34 mm
- Max. diameter to be gripped
- 45 mm
- Guide value for payload
- 0.7 kg
Regular price
$360.42
Unit price
DHEB-33-E-D-S-P is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
DHEB-33-E-D-S-P
Regular price
$360.42
Unit price
DHEB-33-E-D-S-P is backordered and will ship as soon as it is back in stock.
| Size | 33 |
|---|---|
| Stroke of bellows | 14.5 mm |
| Min. diameter to be gripped | 34 mm |
| Max. diameter to be gripped | 45 mm |
| Mounting position | Any |
| Mode of operation | Single-acting | Closed |
| Gripper function | Adaptive |
| Structural design | Positively driven motion sequence |
| Guide | Basic guide |
| Position sensing | For proximity sensor |
| Operating pressure | 4 bar ... 8 bar |
| Resetting pressure | <1 bar |
| Max. operating frequency of pneumatic gripper | ≤4 Hz |
| Min. opening time at 6 bar | 30 ms |
| Min. closing time at 6 bar | 60 ms |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III |
| For use in the food industry | See supplementary material information |
| Ambient temperature | 5 °C ... 60 °C |
| Average replacement interval for the bellows | 1 MioCyc |
| Guide value for payload | 0.7 kg |
| Product weight | 118 g |
| Type of mounting | With external thread | With lock nut |
| Pneumatic connection | M5 |
| Note on materials | RoHS-compliant |
| Bellows material | VMQ (silicone) |
| Housing material | Aluminum | Anodized |
