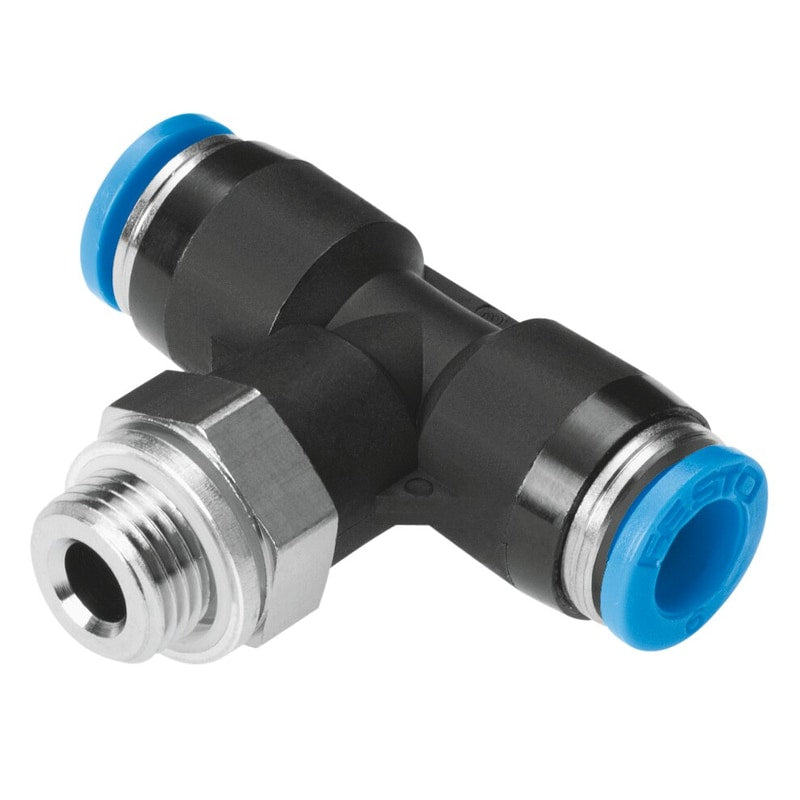

Push-in T-fitting
QST-G1/4-6-100
132069
GTIN 4052568027216
Vendor Festo
- Pneumatic connection 1
- External thread G1/4
- Pneumatic connection 2
- for pneumatic tubing outside diameter 6 mm
- Temperature-dependent operating pressure
- -0.95 bar - 14 bar
- Ambient temperature
- -10 °C - 80 °C
- Nominal width
- 4.3 mm
Regular price
$5.04
Unit price
QST-G1/4-6-100 Push-in T-fitting is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
QST-G1/4-6-100
Regular price
$5.04
Unit price
QST-G1/4-6-100 Push-in T-fitting is backordered and will ship as soon as it is back in stock.
push-in T-fitting QST-G1/4-6-100 360° orientable, male thread with external hexagon. Size=Standard, Nominal size=4,3 mm, Type of seal on screw-in stud=Sealing ring, Assembly position=Any, Container size=100
| Fitting Type | Male Branch Tee |
|---|---|
| Size | Standard |
| Nominal size | 4.3 mm |
| Type of seal on screw-in stud | Sealing ring |
| Assembly position | Any |
| Container size | 100 |
| Design structure | Push/pull principle |
| Operating pressure complete temperature range | '-0.95 ... 6 bar |
| Temperature dependent operating pressure | '-0.95 ... 14 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-]Water as per manufacturer's declaration at www.festo.com |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance classification CRC | 1 - Low corrosion stress |
| Ambient temperature | '-10 ... 80 °C |
| Maritime classification | see certificate |
| Nominal tightening torque | 9 Nm |
| Tolerance for nominal tightening torque | ± 20 % |
| Product weight | 24 g |
| Number of outputs | 2 |
| Number of supply lines | 1 |
| connection 1 | Male thread G1/4 |
