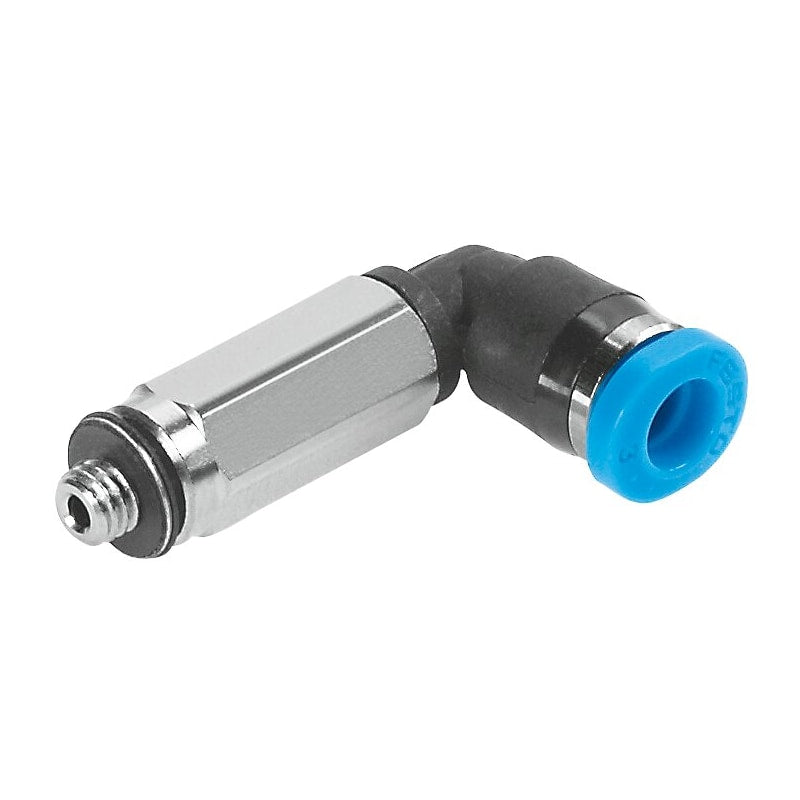

Push-in L-fitting, long
QSMLL-M5-3
130838
GTIN 4052568025588
Vendor Festo
- Pneumatic connection 1
- External thread M5
- Pneumatic connection 2
- for pneumatic tubing outside diameter 3 mm
- Temperature-dependent operating pressure
- -0.95 bar - 14 bar
- Ambient temperature
- -10 °C - 80 °C
- Nominal width
- 1.5 mm
Regular price
$5.87
Unit price
QSMLL-M5-3 Push-in L-fitting, long is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
QSMLL-M5-3
Regular price
$5.87
Unit price
QSMLL-M5-3 Push-in L-fitting, long is backordered and will ship as soon as it is back in stock.
push-in L-fitting, long QSMLL-M5-3 360° orientable, male thread with external hexagon. Size=Mini, Nominal size=1,5 mm, Type of seal on screw-in stud=Sealing ring, Assembly position=Any, Container size=10
| Fitting Type | Long Elbow |
|---|---|
| Size | Mini |
| Nominal size | 1.5 mm |
| Type of seal on screw-in stud | Sealing ring |
| Assembly position | Any |
| Container size | 10 |
| Design structure | Push/pull principle |
| Operating pressure complete temperature range | '-0.95 ... 6 bar |
| Temperature dependent operating pressure | '-0.95 ... 14 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance classification CRC | 1 - Low corrosion stress |
| Ambient temperature | '-10 ... 80 °C |
| Maritime classification | see certificate |
| Nominal tightening torque | 1.33 Nm |
| Tolerance for nominal tightening torque | ± 20 % |
| Product weight | 7.7 g |
| connection 1 | Male thread M5 |
| connection 2 | 3mm outside diameter, for tubing |
| Colour of release ring | blue |
