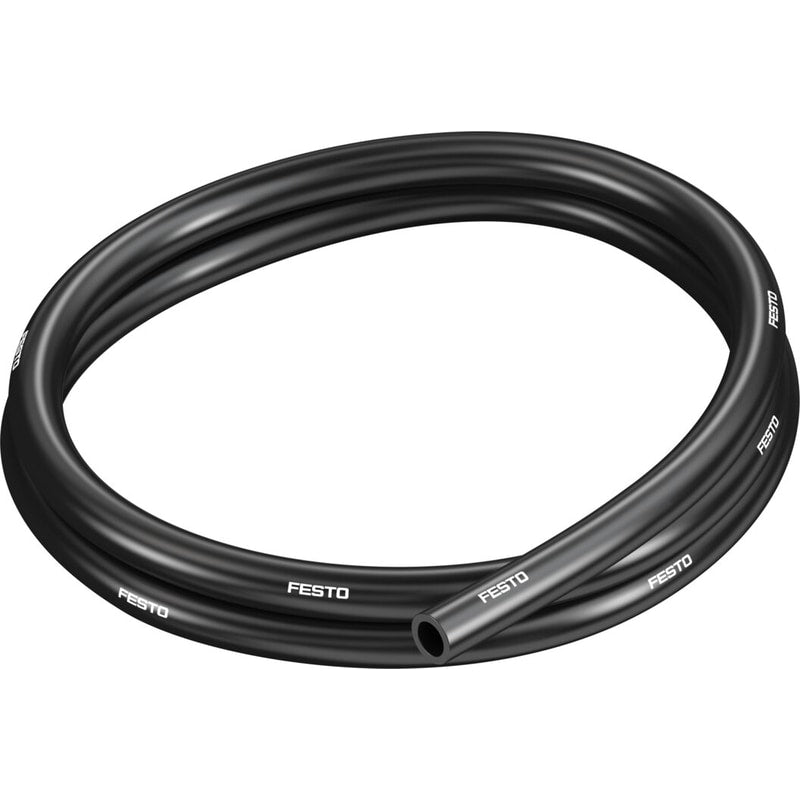

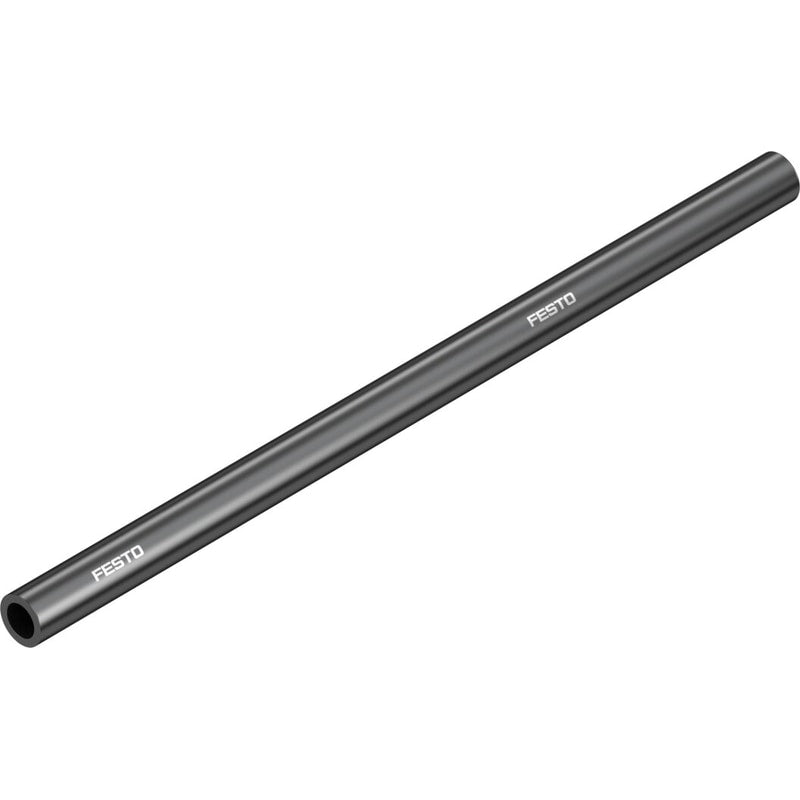

Plastic tubing
PUN-CM-12-SW
130818
GTIN 4052568025397
Vendor Festo
- Outside diameter
- 12 mm
- Inside diameter
- 8 mm
- Temperature-dependent operating pressure
- -0.95 bar - 10 bar
- Ambient temperature
- -35 °C - 60 °C
Regular price
$24.47
Unit price
PUN-CM-12-SW Plastic tubing is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
PUN-CM-12-SW
Regular price
$24.47
Unit price
PUN-CM-12-SW Plastic tubing is backordered and will ship as soon as it is back in stock.
| Pneumatic tubing test conditions | Suitability for energy chains: >5 million cycles as per FN 942021 |
|---|---|
| Tubing characteristics | Suitable for energy chains in applications with high cycle rates |
| Outside diameter | 12 mm |
| Bending radius relevant for flow rate | 70 mm |
| Inside diameter | 8 mm |
| Min. bending radius | 30 mm |
| Type code | PUN-CM |
| Temperature-dependent operating pressure | -0.95 bar ... 10 bar |
| Surface resistance | 0.01 MOhm ... 10 MOhm |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Ambient temperature | -35 °C ... 60 °C |
| Product weight by length | 0.0754 kg/m |
| Pneumatic connection | For plug connection outside diameter 12 mm |
| Color | Black |
| Shore hardness | D 52 +/-3 |
| Note on materials | Free of copper and PTFE |
| Material of pneumatic tubing | TPE-U(PU) |
