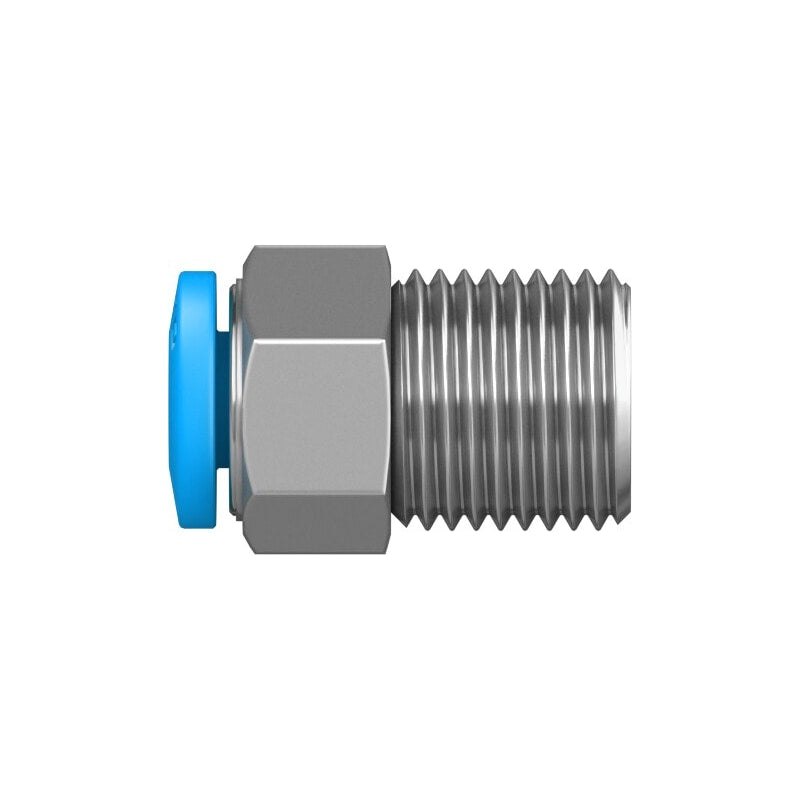

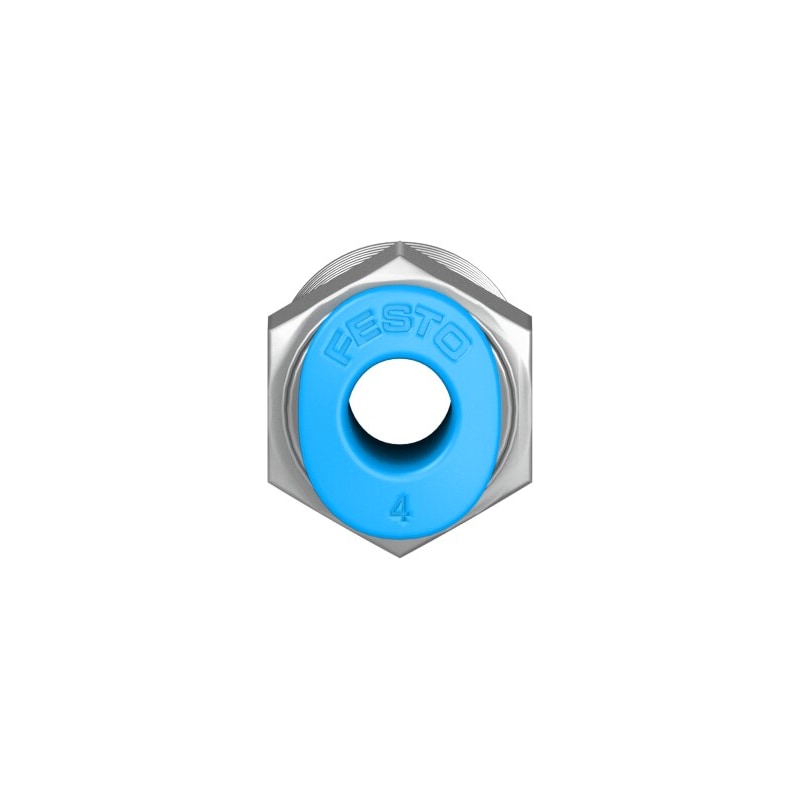

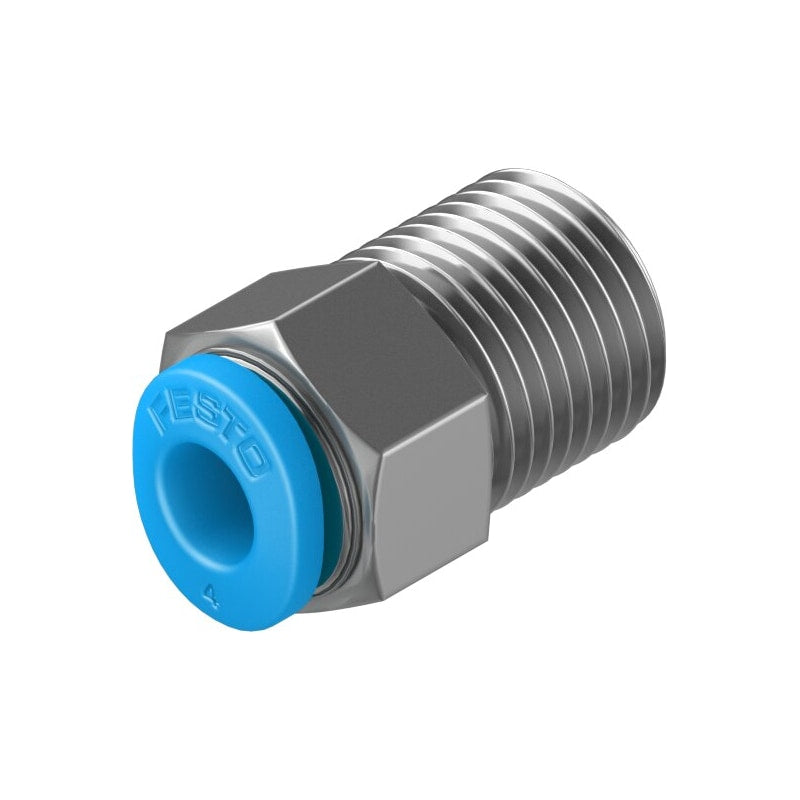

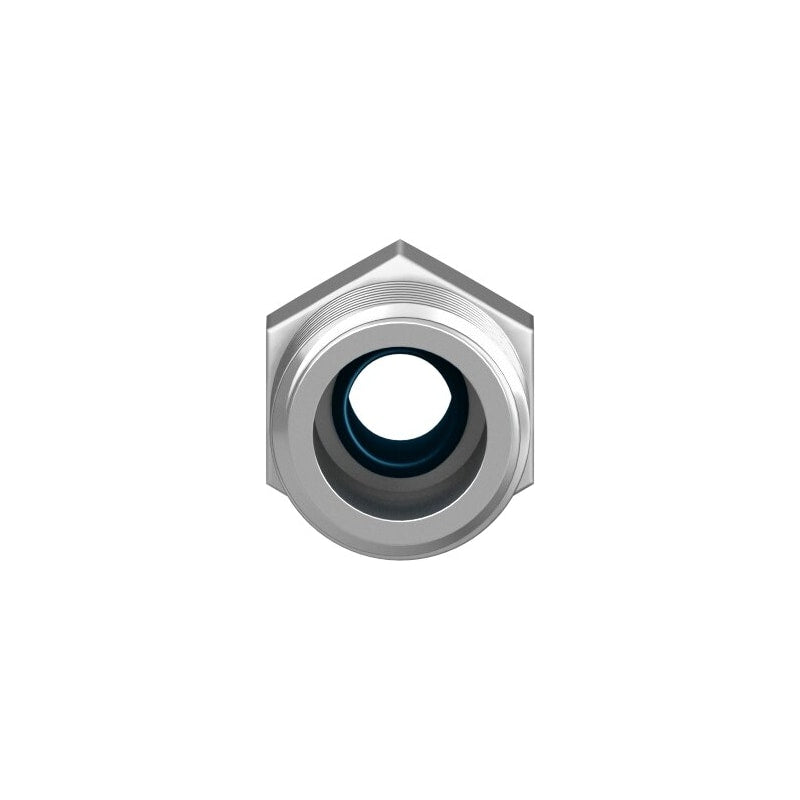

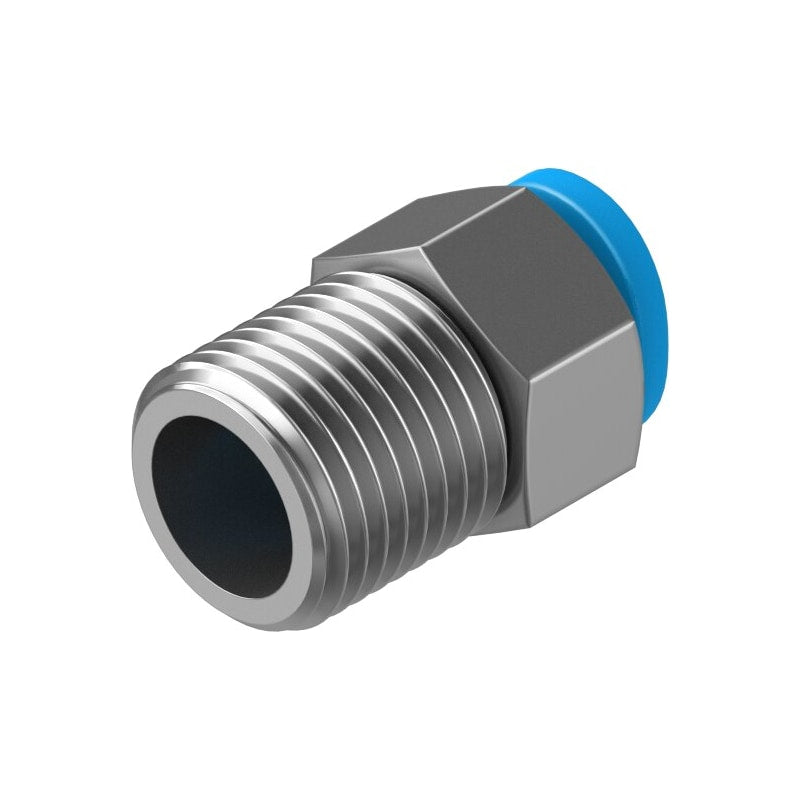

Push-in fitting
QSM-1/8-4-100
130755
GTIN 4052568024765
Vendor Festo
- Pneumatic connection 1
- External thread R1/8
- Pneumatic connection 2
- for pneumatic tubing outside diameter 4 mm
- Temperature-dependent operating pressure
- -0.95 bar - 14 bar
- Ambient temperature
- -10 °C - 80 °C
- Nominal width
- 2.9 mm
Regular price
$1.63
Unit price
QSM-1/8-4-100 Push-in fitting is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
QSM-1/8-4-100
Regular price
$1.63
Unit price
QSM-1/8-4-100 Push-in fitting is backordered and will ship as soon as it is back in stock.
push-in fitting QSM-1/8-4-100 male thread with external hexagon. Size=Mini, Nominal size=2,9 mm, Type of seal on screw-in stud=coating, Assembly position=Any, Container size=100
| Fitting Type | Straight Union |
|---|---|
| Size | Mini |
| Nominal size | 2.9 mm |
| Type of seal on screw-in stud | coating |
| Assembly position | Any |
| Container size | 100 |
| Design structure | Push/pull principle |
| Operating pressure complete temperature range | '-0.95 ... 6 bar |
| Temperature dependent operating pressure | '-0.95 ... 14 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance classification CRC | 1 - Low corrosion stress |
| Ambient temperature | '-10 ... 80 °C |
| Maritime classification | see certificate |
| Product weight | 6 g |
| connection 1 | Male thread R1/8 |
| connection 2 | For tubing outside diameter 4 mm |
| Colour of release ring | blue |
| Materials note | Conforms to RoHS |
| Material housing | BrassNickel plated |
