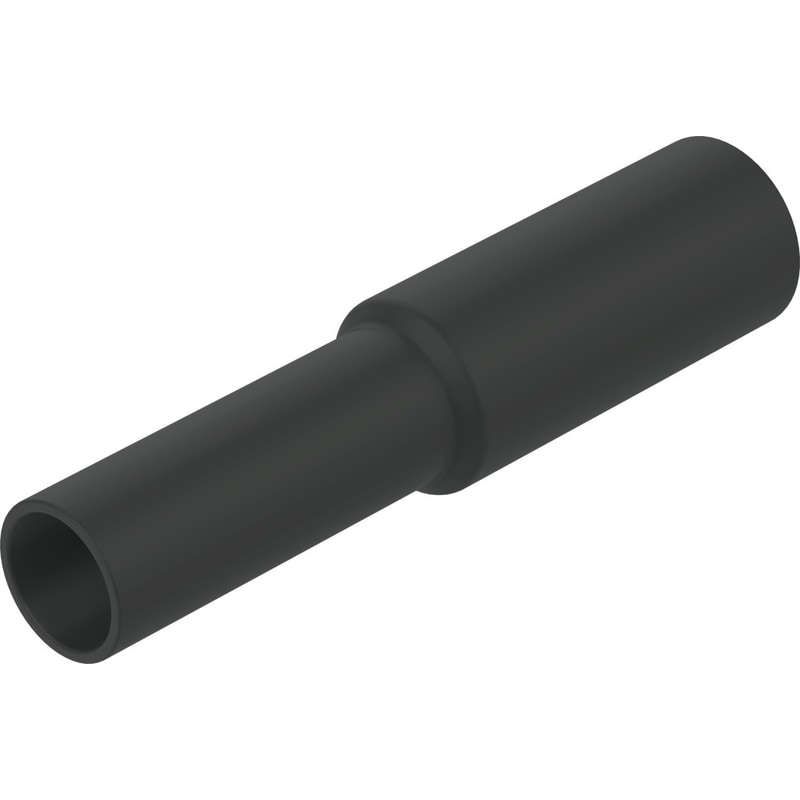

Push-in sleeve
QSH-12-10-20
130721
GTIN 4052568024420
Vendor Festo
- Pneumatic connection 1
- Push-in sleeve Ø 12 mm
- Pneumatic connection 2
- Push-in sleeve Ø 10 mm
- Temperature-dependent operating pressure
- -0.95 bar - 14 bar
- Ambient temperature
- -10 °C - 80 °C
- Nominal width
- 7.1 mm
Regular price
$2.69
Unit price
QSH-12-10-20 Push-in sleeve is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
QSH-12-10-20
Regular price
$2.69
Unit price
QSH-12-10-20 Push-in sleeve is backordered and will ship as soon as it is back in stock.
| Size | Standard |
|---|---|
| Maritime classification | See certificate |
| Nominal width | 7.1 mm |
| Type code | QSH |
| Mounting position | Any |
| Pack size | 20 |
| Operating pressure for entire temperature range | -0.95 bar ... 6 bar |
| Temperature-dependent operating pressure | -0.95 bar ... 14 bar |
| Operating medium | Water as per manufacturer's declaration at www.festo.comCompressed air as per ISO 8573-1:2010 [7:-:-] |
| Information on operating and pilot media | Operation with oil lubrication possible |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| Ambient temperature | -10 °C ... 80 °C |
| Product weight | 2.2 g |
| Pneumatic connection 1 | Push-in sleeve QS-12 |
| Pneumatic connection 2 | Push-in sleeve QS-10 |
| Releasing ring color | Blue |
| Note on materials | RoHS-compliant |
| Housing material | PBT |
