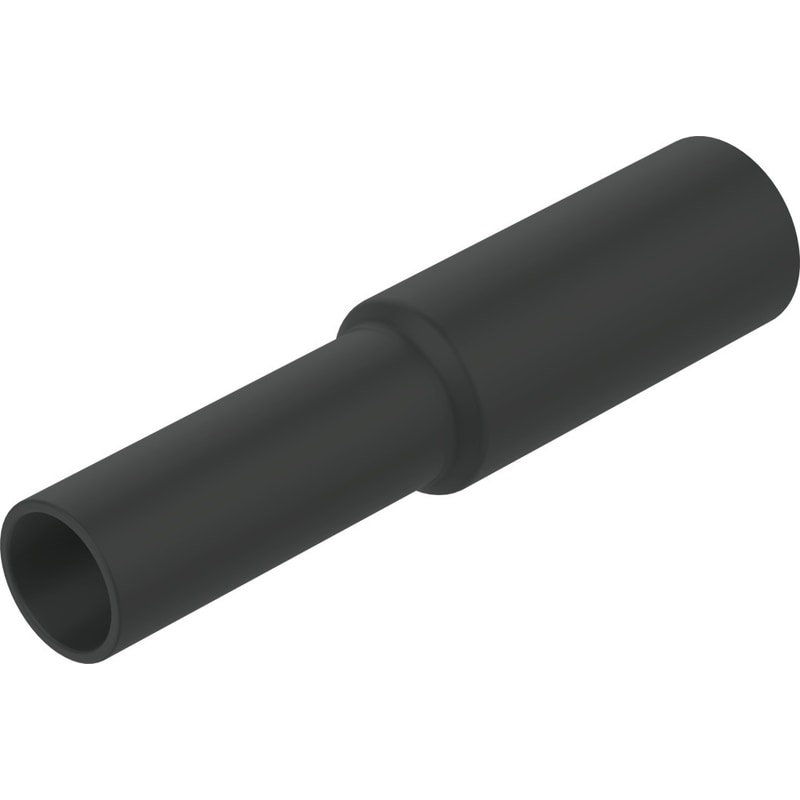

Push-in sleeve
QSH-6-4-100
130718
GTIN 4052568024390
Vendor Festo
- Pneumatic connection 1
- Push-in sleeve Ø 6 mm
- Pneumatic connection 2
- Push-in sleeve Ø 4 mm
- Temperature-dependent operating pressure
- -0.95 bar - 14 bar
- Ambient temperature
- -10 °C - 80 °C
- Nominal width
- 2.3 mm
Regular price
$1.86
Unit price
QSH-6-4-100 Push-in sleeve is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
QSH-6-4-100
Regular price
$1.86
Unit price
QSH-6-4-100 Push-in sleeve is backordered and will ship as soon as it is back in stock.
push-in sleeve QSH-6-4-100 reducing. Size=Standard, Nominal size=2,3 mm, Assembly position=Any, Container size=100, Operating pressure complete temperature range=-0,95 - 6 bar
| Fitting Type | Push-in Sleeve |
|---|---|
| Size | Standard |
| Nominal size | 2.3 mm |
| Assembly position | Any |
| Container size | 100 |
| Operating pressure complete temperature range | '-0.95 ... 6 bar |
| Temperature dependent operating pressure | '-0.95 ... 14 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-]Water as per manufacturer's declaration at www.festo.com |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance classification CRC | 1 - Low corrosion stress |
| Ambient temperature | '-10 ... 80 °C |
| Maritime classification | see certificate |
| Product weight | 0.5 g |
| connection 1 | Push-in sleeve QS-6 |
| connection 2 | Push-in sleeve QS-4 |
| Colour of release ring | blue |
| Materials note | Conforms to RoHS |
| Material housing | PBT |
