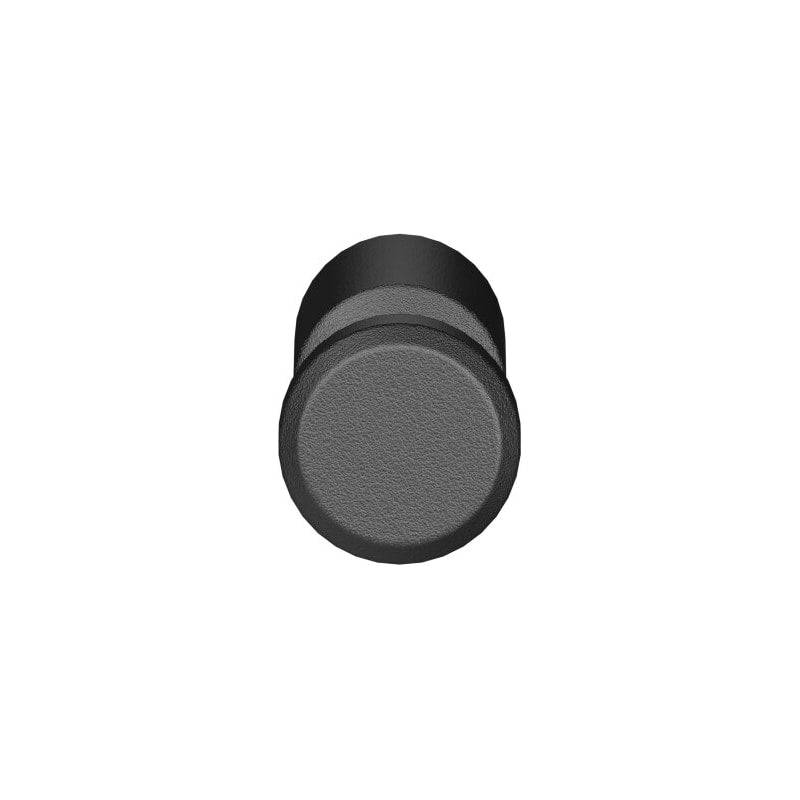

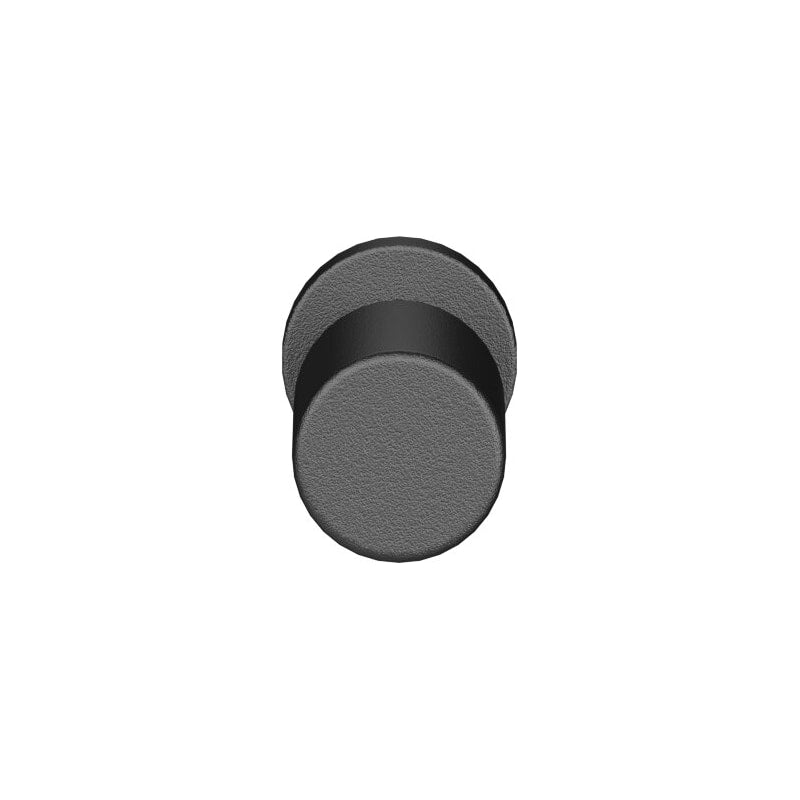

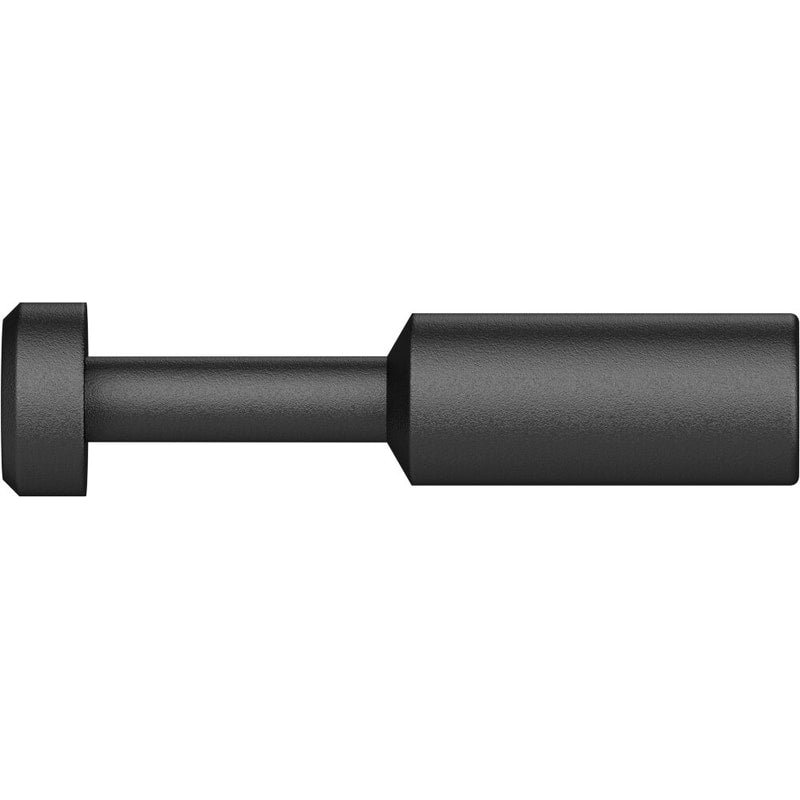

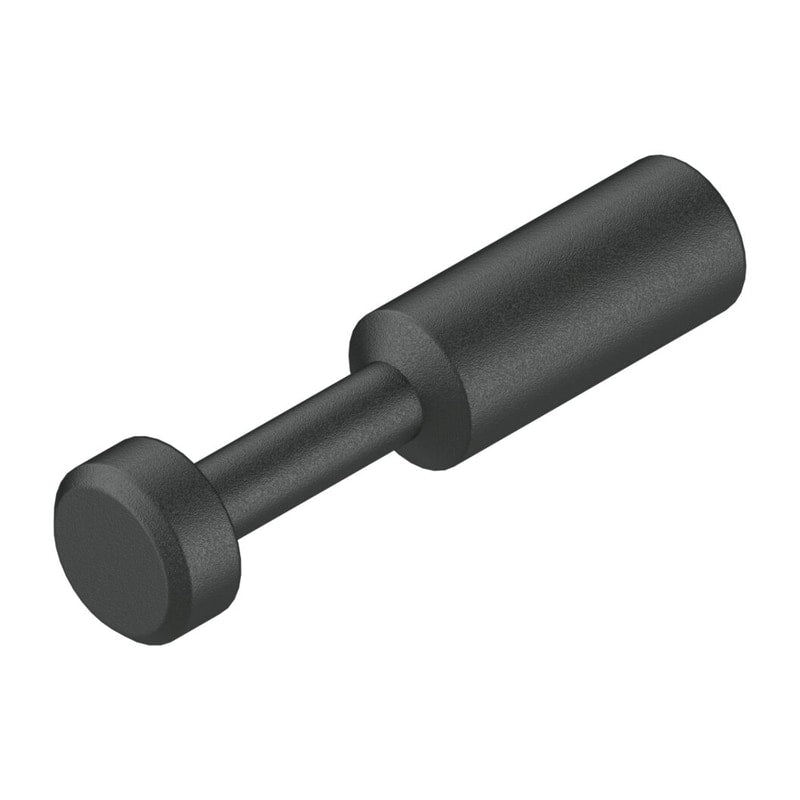

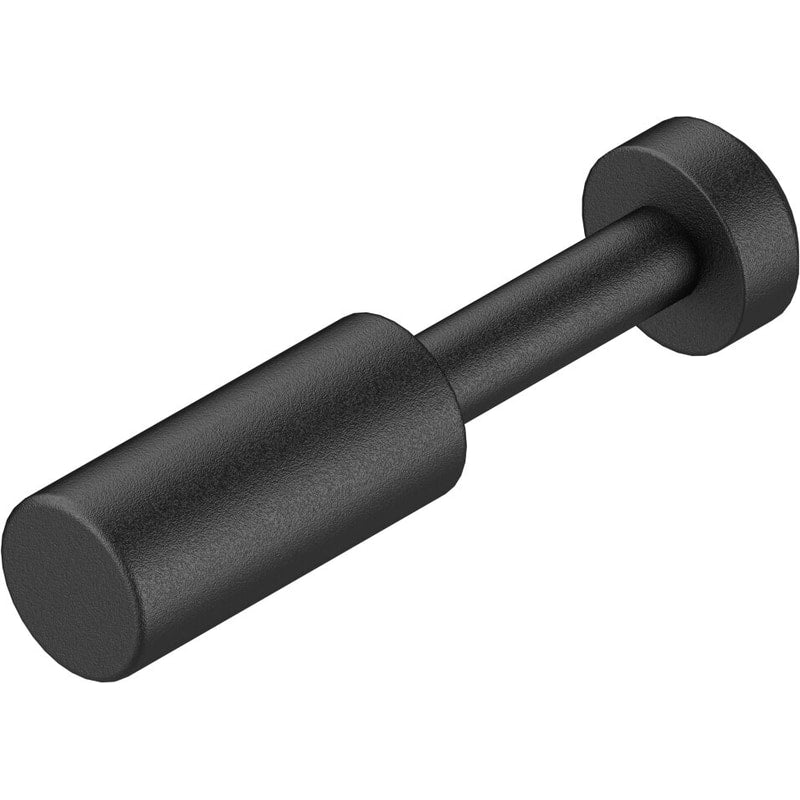

Blanking plug
QSC-8H-50
130701
GTIN 4052568024222
Vendor Festo
- Pneumatic connection 1
- Push-in sleeve Ø 8 mm
- Temperature-dependent operating pressure
- -0.95 bar - 14 bar
- Ambient temperature
- -10 °C - 80 °C
Regular price
$1.13
Unit price
QSC-8H-50 Blanking plug is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
QSC-8H-50
Regular price
$1.13
Unit price
QSC-8H-50 Blanking plug is backordered and will ship as soon as it is back in stock.
blanking plug QSC-8H-50 Size=Standard, Assembly position=Any, Container size=50, Operating pressure complete temperature range=-0,95 - 6 bar, Temperature dependent operating pressure=-0,95 - 14 bar
| Fitting Type | Push-in Plug |
|---|---|
| Size | Standard |
| Assembly position | Any |
| Container size | 50 |
| Operating pressure complete temperature range | '-0.95 ... 6 bar |
| Temperature dependent operating pressure | '-0.95 ... 14 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-]Water as per manufacturer's declaration at www.festo.com |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance classification CRC | 1 - Low corrosion stress |
| Ambient temperature | '-10 ... 80 °C |
| Maritime classification | see certificate |
| Product weight | 1 g |
| connection 1 | Push-in sleeve QS-8 |
| Materials note | Conforms to RoHS |
| Material housing | PBT |
