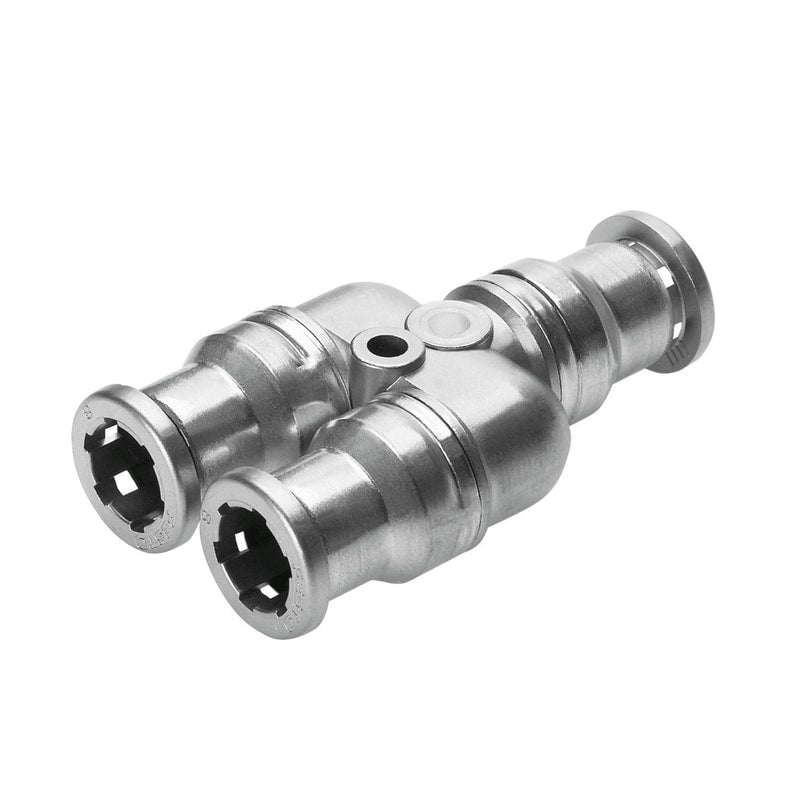

Push-in Y-connector
CRQSY-12
130660
GTIN 4052568116354
Vendor Festo
- Pneumatic connection 1
- for pneumatic tubing outside diameter 12 mm
- Pneumatic connection 2
- for pneumatic tubing outside diameter 12 mm
- Operating pressure for entire temperature range
- -0.95 bar - 10 bar
- Ambient temperature
- -15 °C - 120 °C
- Nominal width
- 7 mm
Regular price
$360.56
Unit price
CRQSY-12 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
CRQSY-12
Regular price
$360.56
Unit price
CRQSY-12 is backordered and will ship as soon as it is back in stock.
push-in Y-connector CRQSY-12 Size=Standard, Nominal size=7 mm, Assembly position=Any, Container size=1, Design structure=Push/pull principle
| Fitting Type | Unioin Y |
|---|---|
| Size | Standard |
| Nominal size | 7 mm |
| Assembly position | Any |
| Container size | 1 |
| Design structure | Push/pull principle |
| Operating pressure complete temperature range | '-0.95 ... 10 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-]Water as per manufacturer's declaration at www.festo.com |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance classification CRC | 4 - Very high corrosion stress |
| Food-safe | See Supplementary material information |
| Ambient temperature | '-15 ... 120 °C |
| Maritime classification | see certificate |
| Product weight | 80 g |
| Number of outputs | 2 |
| Number of supply lines | 1 |
| Usable wires | PFAN |
| connection 1 | 12mm outside diameter, for tubing |
| connection 2 | 12mm outside diameter, for tubing |
| Materials note | Conforms to RoHS |
