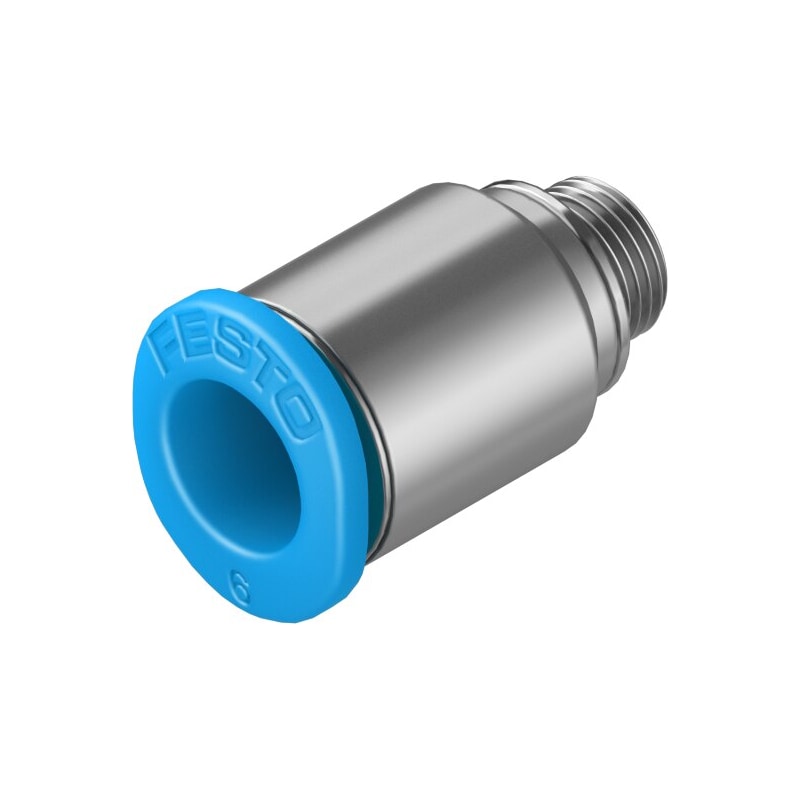

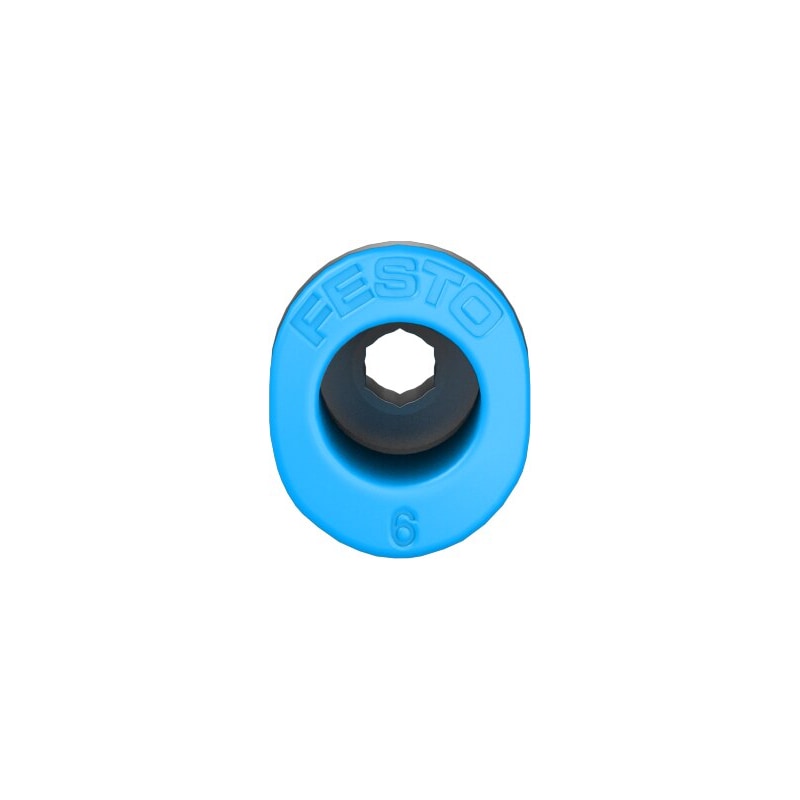

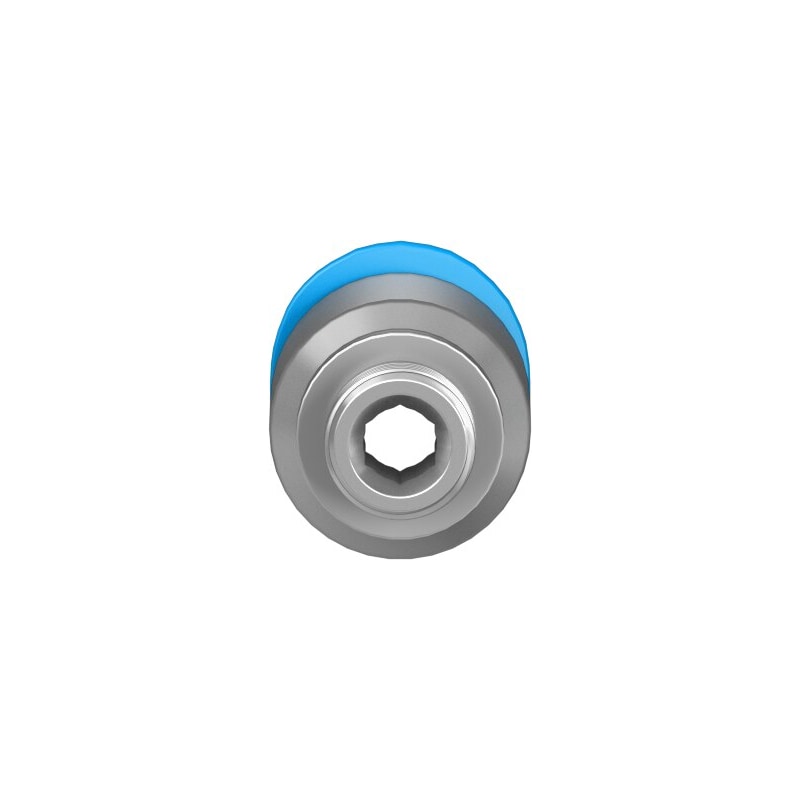

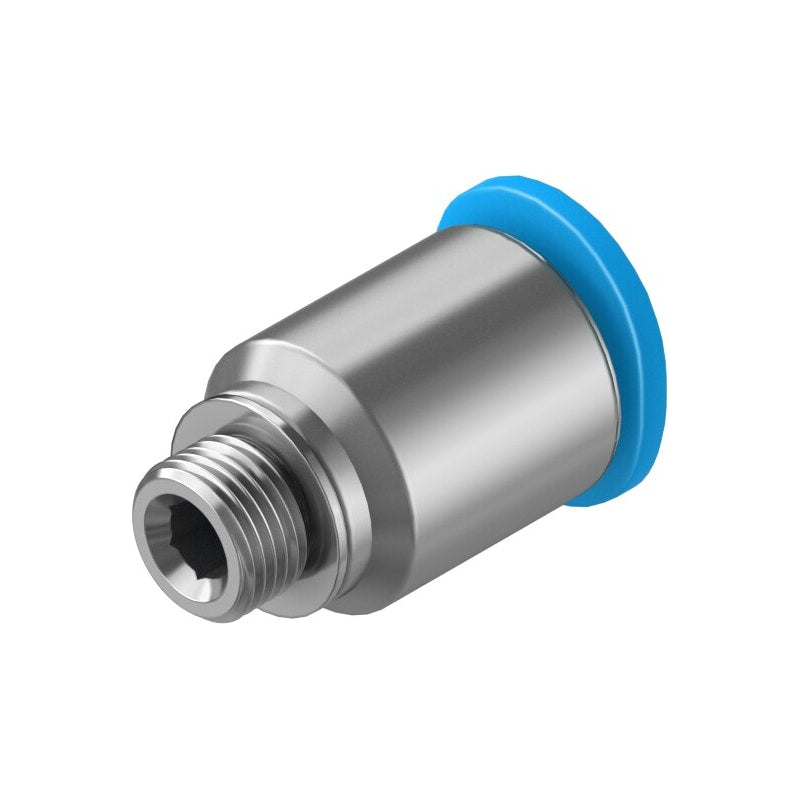

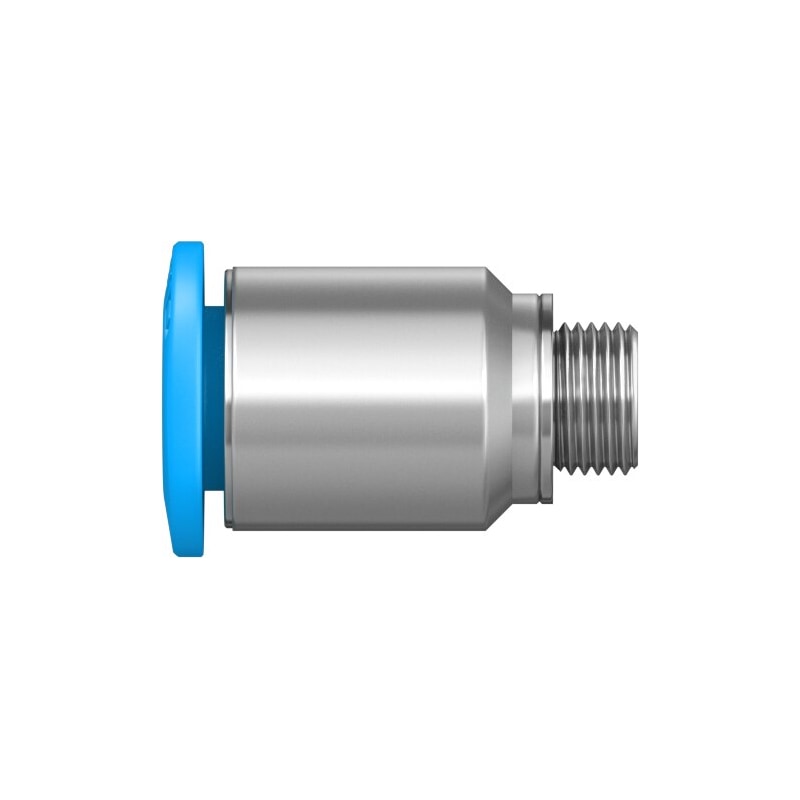

Push-in fitting
QSM-M5-1/4-I-U-M
130591
GTIN 4052568309527
Vendor Festo
- Pneumatic connection 1
- External thread M5
- Pneumatic connection 2
- for pneumatic tubing outer diameter 1/4"
- Operating pressure for entire temperature range
- -0.95 bar - 10 bar
- Ambient temperature
- 0 °C - 60 °C
- Nominal width
- 2.489 mm
Regular price
$7.00
Unit price
QSM-M5-1/4-I-U-M Push-in fitting is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
QSM-M5-1/4-I-U-M
Regular price
$7.00
Unit price
QSM-M5-1/4-I-U-M Push-in fitting is backordered and will ship as soon as it is back in stock.
push-in fitting QSM-M5-1/4-I-U-M male thread with internal hexagon socket. Size=Mini, Nominal size=0,098 ", Type of seal on screw-in stud=Sealing ring, Assembly position=Any, Container size=1
| Fitting Type | Straight Union |
|---|---|
| Size | Mini |
| Nominal size | 0.098 " |
| Type of seal on screw-in stud | Sealing ring |
| Assembly position | Any |
| Container size | 1 |
| Design structure | Push/pull principle |
| Operating pressure complete temperature range | '-13.78 ... 145 Psi |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance classification CRC | 1 - Low corrosion stress |
| Ambient temperature | 32 ... 140 °F |
| Maritime classification | see certificate |
| Nominal tightening torque | 0.981 ft-lbf |
| Tolerance for nominal tightening torque | ± 20 % |
| Product weight | 0.134 oz |
| connection 1 | Male thread M5 |
| connection 2 | 1/4" outside diameter, for tubing |
| Colour of release ring | Grey |
| Materials note | Conforms to RoHS |
