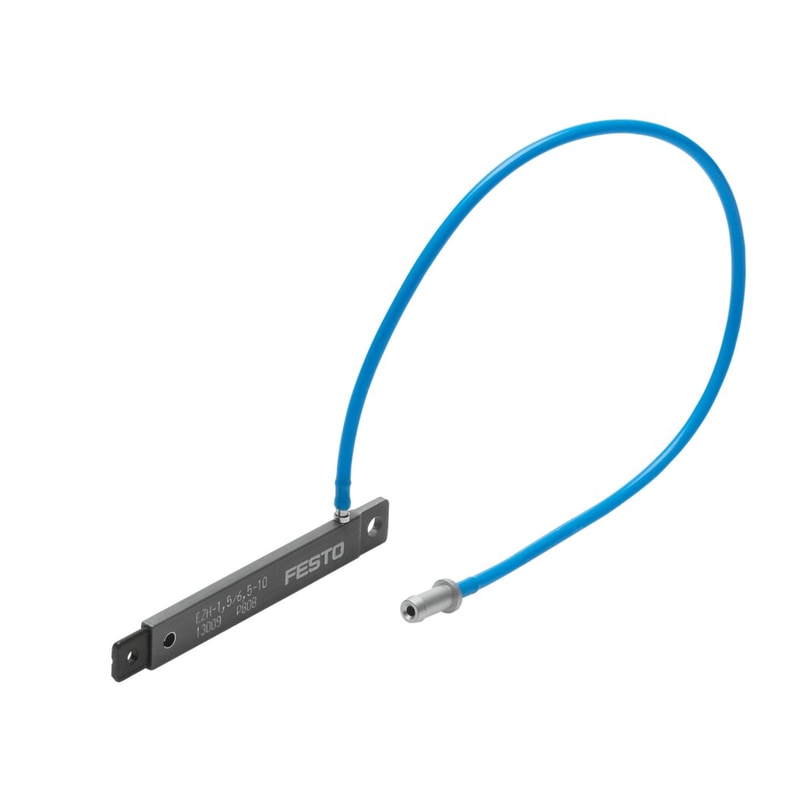

Flat cylinder
EZH-1,5/6,5-10
13009
GTIN 4052568065928
Vendor Festo
- Mode of operation
- Pushing - Single-acting
- Piston diameter
- 3 mm - Equivalent diameter
- Theoretical force at 6 bar, advancing
- 3.8 N
- Stroke
- 10 mm
- Cushioning
- No cushioning
Regular price
$81.85
Unit price
EZH-1,5/6,5-10 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
EZH-1,5/6,5-10
Regular price
$81.85
Unit price
EZH-1,5/6,5-10 is backordered and will ship as soon as it is back in stock.
flat cylinder EZH-1,5/6,5-10 Non-rotating Stroke=10 mm, Piston diameter=(* 3 mm, * Equivalent diameter), Cushioning=No cushioning, Assembly position=Any, Mode of operation=(* single-acting, * pushing action)
| Stroke | 10 mm |
|---|---|
| Piston diameter | 3 mmEquivalent diameter |
| Cushioning | No cushioning |
| Assembly position | Any |
| Mode of operation | single-actingpushing action |
| Design structure | PistonSquare piston rod |
| Position detection | No |
| Protection against torque/guide | Square piston rod |
| Operating pressure | 3 ... 6 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Corrosion resistance classification CRC | 2 - Moderate corrosion stress |
| Ambient temperature | 0 ... 60 °C |
