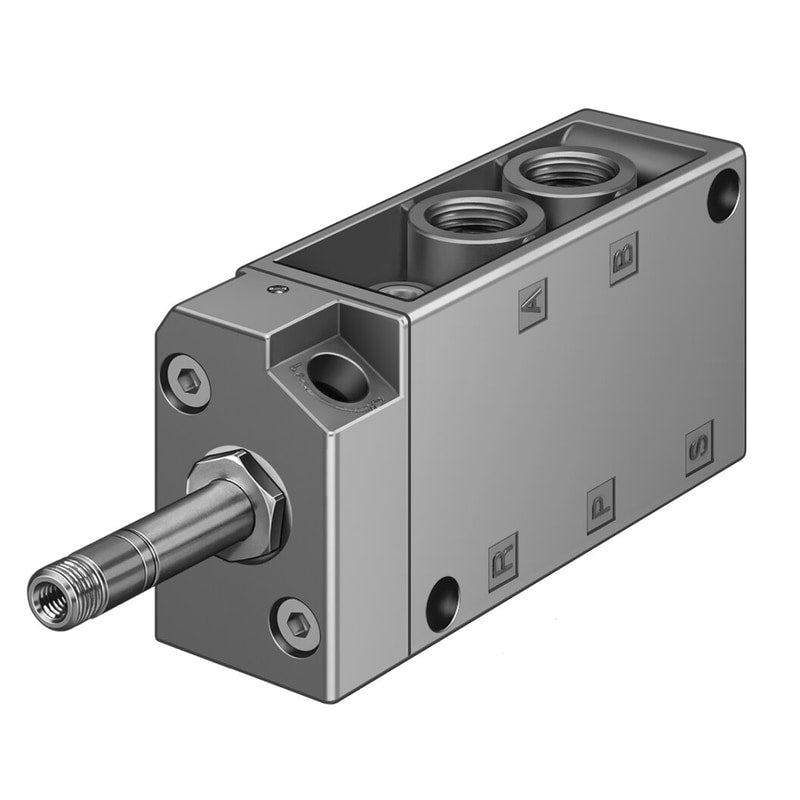

Air solenoid valve
MFH-5-1/4-S-NPT
12618
GTIN 4052568304126
Vendor Festo
Regular price
$286.35
Unit price
MFH-5-1/4-S-NPT is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
MFH-5-1/4-S-NPT
Regular price
$286.35
Unit price
MFH-5-1/4-S-NPT is backordered and will ship as soon as it is back in stock.

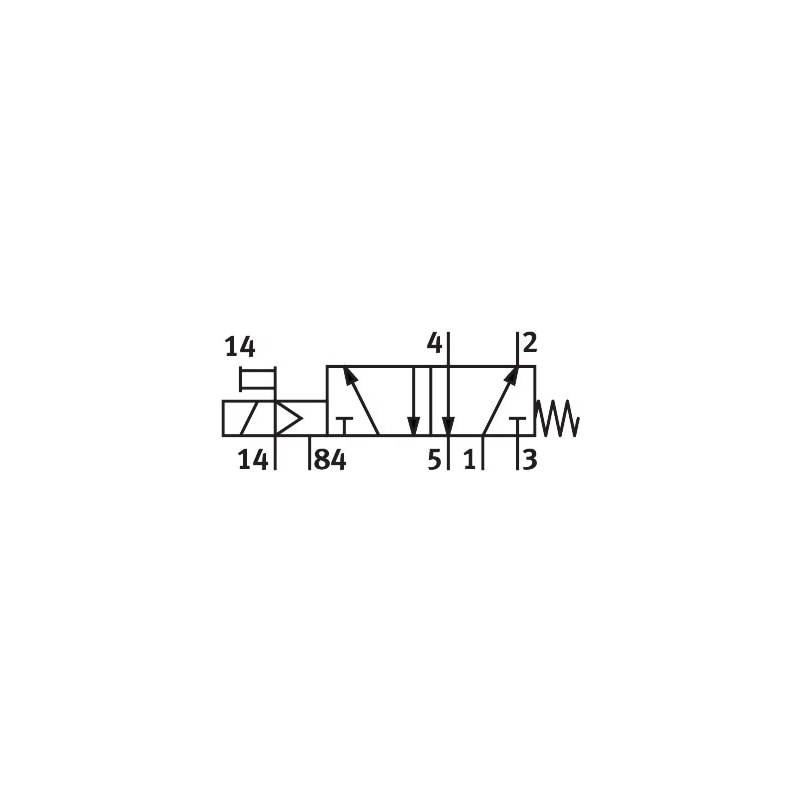

solenoid valve MFH-5-1/4-S-NPT With manual override, with auxiliary pilot air connection, without solenoid coil and without socket. Solenoid coil and socket should be ordered separately. Valve function=5/2 monostable, Type of actuation=electrical, Valve size=30,5 mm, Width=30,5 mm, Standard nominal flow rate=1000 l/min
| Valve function | 5/2 monostable |
|---|---|
| Type of actuation | electrical |
| Valve size | 30.5 mm |
| Width | 30.5 mm |
| Standard nominal flow rate | 1,000 l/min |
| Operating pressure | 0 ... 8 bar |
| Design structure | Poppet seat |
| Type of reset | mechanical spring |
| Protection class | IP65 |
| Authorisation | c UL us - Recognized (OL) |
| Nominal size | 7 mm |
| Grid dimension | 32 mm |
| Exhaust-air function | throttleable |
