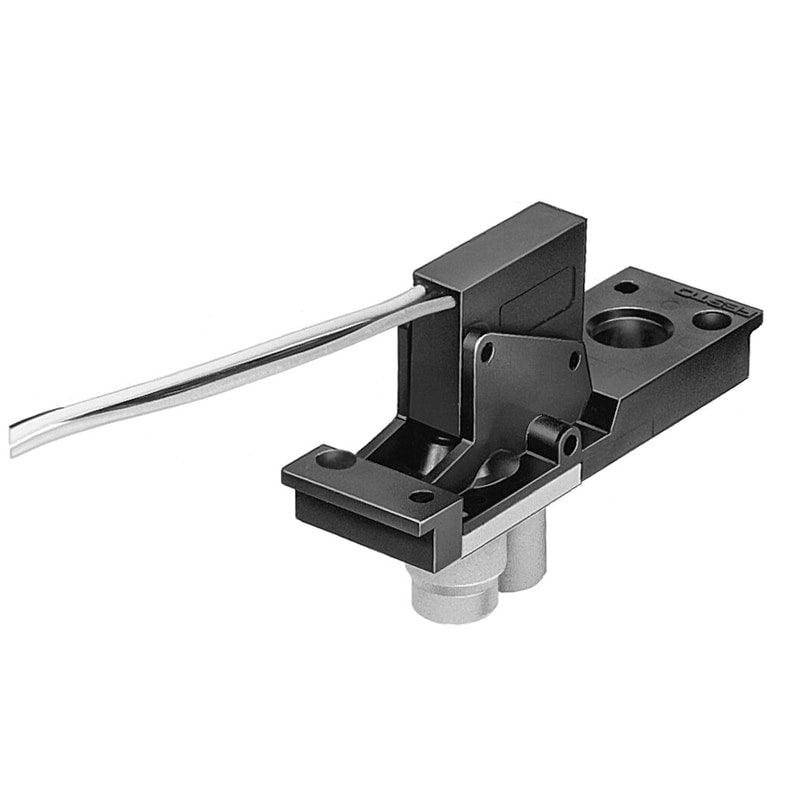

PE converter
VPE-1/8-2N-SW
12595
Vendor Festo
Regular price
$246.11
Unit price
VPE-1/8-2N-SW is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VPE-1/8-2N-SW
Regular price
$246.11
Unit price
VPE-1/8-2N-SW is backordered and will ship as soon as it is back in stock.
PE converter VPE-1/8-2N-SW On 2n sub-base. Authorisation=CCC, CE mark (see declaration of conformity)=to EU directive low-voltage devices, Measured variable=Relative pressure, Measurement method=Pneu./elect. pressure transducer, Pressure measuring range=-1 - 0 bar
| Authorisation | CCC |
|---|---|
| CE mark (see declaration of conformity) | to EU directive low-voltage devices |
| Measured variable | Relative pressure |
| Measurement method | Pneu./elect. pressure transducer |
| Pressure measuring range | '-1 ... 0 bar |
| Operating pressure | '-0.95 ... 0 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Medium temperature | 0 ... 60 °C |
| Ambient temperature | 0 ... 60 °C |
| Switching element function | Changeover switch |
| Switch-on point | '-0.25 bar |
| Switch-off point | <= 0.1 bar |
