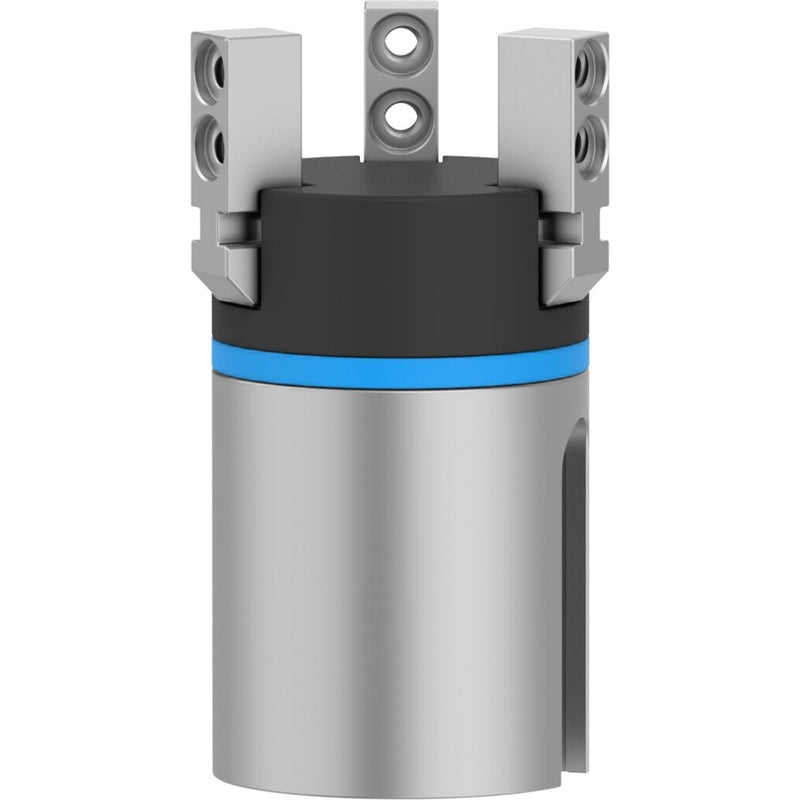

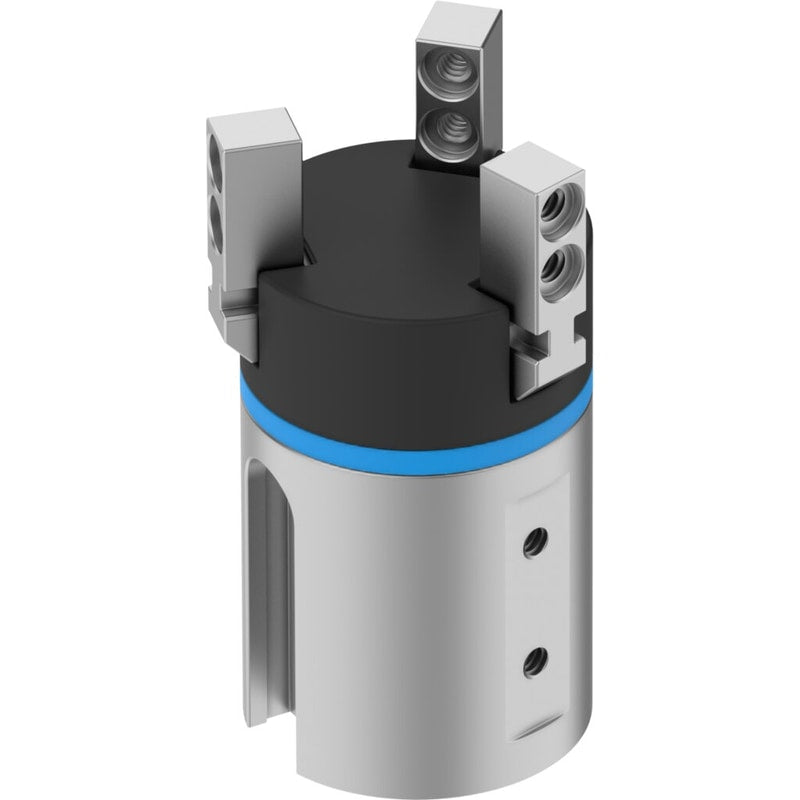

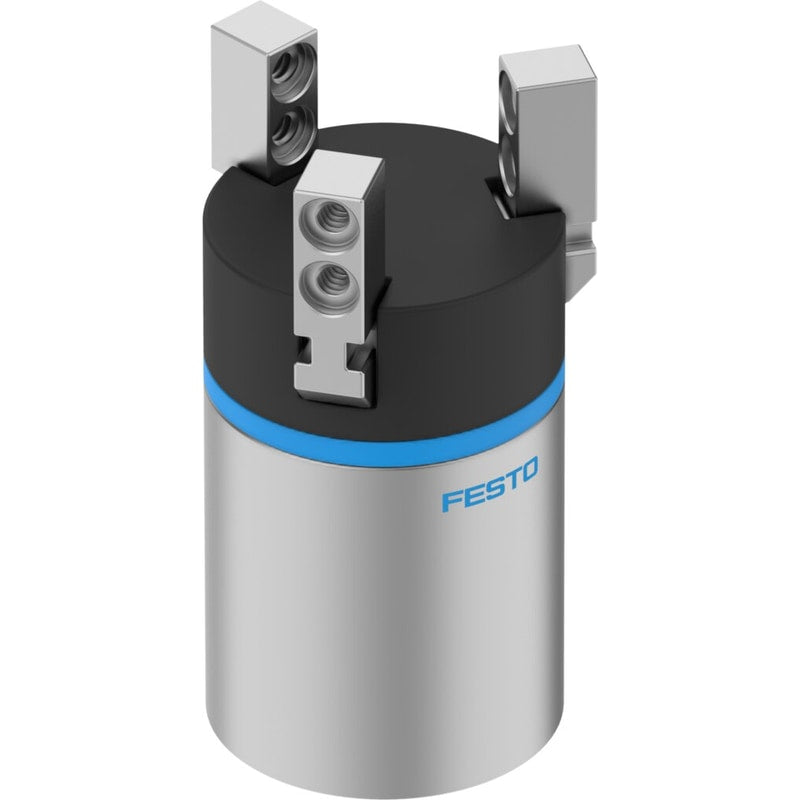

Three-point gripper
DHDS-16-A
1259491
GTIN 4052568229283
Vendor Festo
- Gripping force per gripper jaw at 6 bar, closing
- 29 N
- Stroke per gripper jaw
- 2.5 mm
- Position sensing
- For Hall sensor
Regular price
$1,005.82
Unit price
DHDS-16-A is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
DHDS-16-A
Regular price
$1,005.82
Unit price
DHDS-16-A is backordered and will ship as soon as it is back in stock.
| Size | 16 |
|---|---|
| Stroke per gripper jaw | 2.5 mm |
| Max. interchangeability | ≤0.2 mm |
| Max. gripper jaw angular play ax, ay | ≤0.5 deg |
| Max. gripper jaw backlash Sz | ≤0.02 mm |
| Rotational symmetry | ≤0.2 mm |
| Pneumatic gripper repetition accuracy | ≤0.04 mm |
| Number of gripper jaws | 3 |
| Mounting position | Any |
| Mode of operation | Double-acting |
| Gripper function | 3-point |
| Structural design | Lever | Positively driven motion sequence |
| Position sensing | For Hall sensor |
| Symbol | 00991894 |
| Gripping force per gripper jaw at 6 bar, opening | 120 N |
| Gripping force per gripper jaw at 6 bar, closing | 87 N |
| Operating pressure | 2 bar ... 8 bar |
| Max. operating frequency of pneumatic gripper | ≤4 Hz |
| Min. opening time at 6 bar | 26 ms |
| Min. closing time at 6 bar | 42 ms |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Suitability for the production of Li-ion batteries | Metals with more than 1% by mass of copper are excluded from use. Circuit boards, Lines, electrical push-in connectors and Coils Metals with more than 1% copper as an alloy component are excluded from use. Exceptions are printed circuit boards, cables, el |
| Ambient temperature | 5 °C ... 60 °C |
| Gripping force per gripper jaw at 6 bar, opening | 40 N |
| Gripping force per gripper jaw at 6 bar, closing | 29 N |
| Mass moment of inertia | 0.136 kgcm² |
| Maximum force on gripper jaw Fz, static | 50 N |
| Maximum torque on gripper jaw, Mx static | 2 Nm |
| Maximum torque on gripper jaw, My static | 2 Nm |
| Maximum torque on gripper jaw, Mz static | 2 Nm |
| Relubrication interval for guidance elements | 10 MioCyc |
| Max. mass per external gripper finger | 50 g |
| Product weight | 96 g |
| Type of mounting | With internal thread and dowel pin |
| Pneumatic connection | M3 |
| Note on materials | RoHS-compliant |
| Cover cap material | PA |
| Housing material | Wrought aluminum alloy, hard-anodized |
| Gripper jaw material | High-alloy stainless steel |
