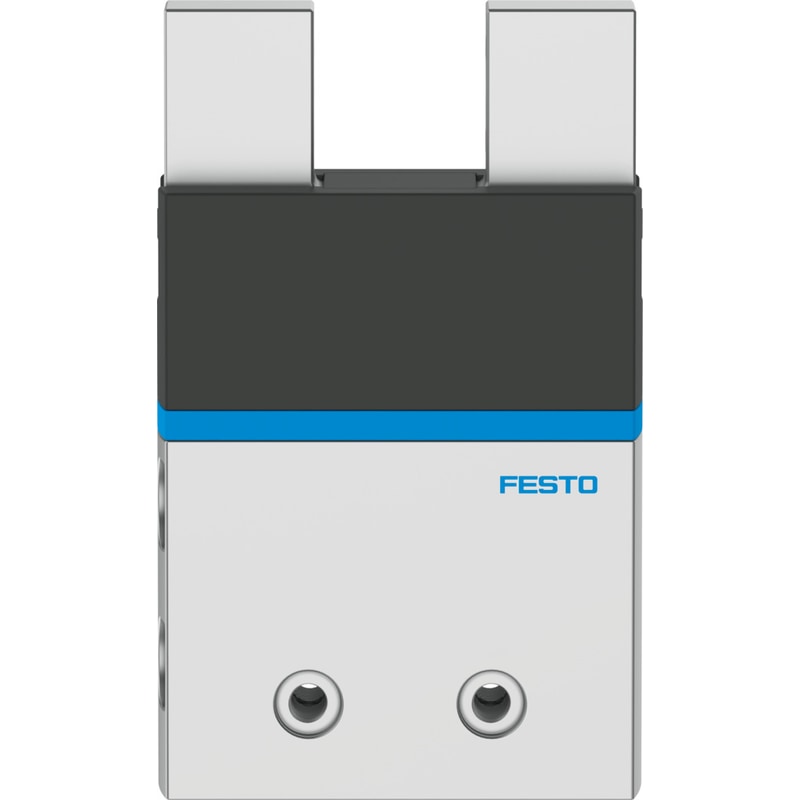

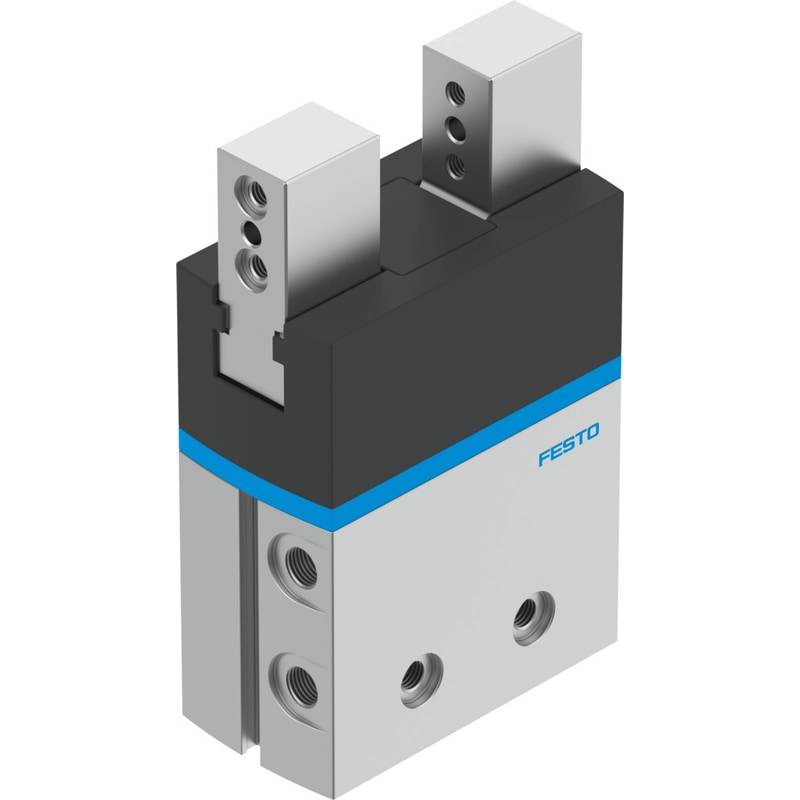

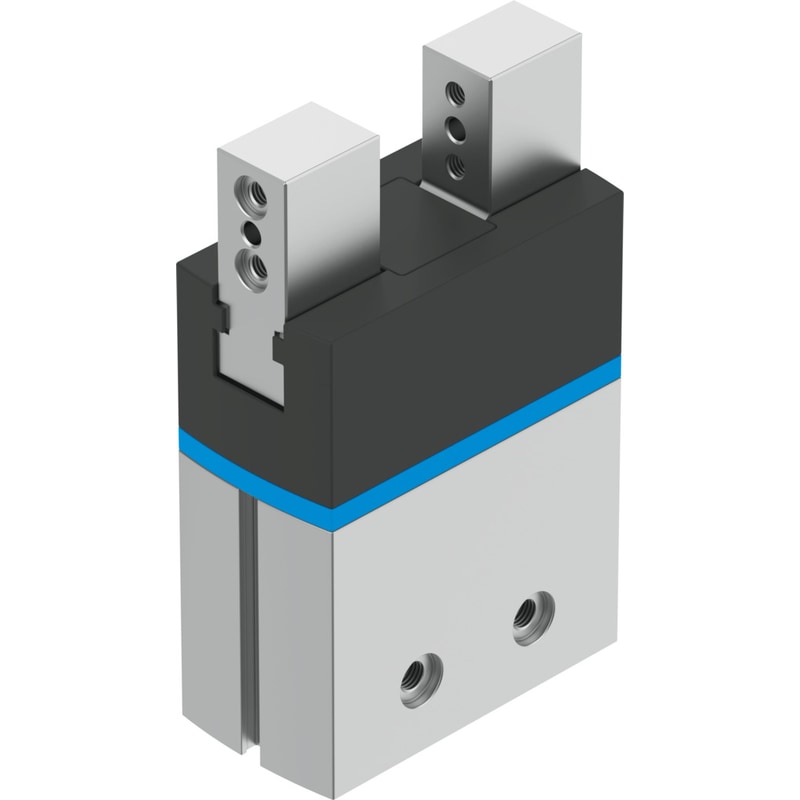

Parallel gripper
DHPS-35-A
1254052
GTIN 4052568229252
Vendor Festo
- Gripping force per gripper jaw at 6 bar, closing
- 450 N
- Stroke per gripper jaw
- 12.5 mm
- Position sensing
- For proximity sensor
- Gripping force backup
- Without
Regular price
$1,315.20
Unit price
DHPS-35-A is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
DHPS-35-A
Regular price
$1,315.20
Unit price
DHPS-35-A is backordered and will ship as soon as it is back in stock.
| Size | 35 |
|---|---|
| Stroke per gripper jaw | 12.5 mm |
| Max. interchangeability | ≤0.2 mm |
| Max. gripper jaw angular play ax, ay | <0.5 deg |
| Max. gripper jaw backlash Sz | <0.02 mm |
| Rotational symmetry | ≤0.2 mm |
| Pneumatic gripper repetition accuracy | <0.02 mm |
| Number of gripper jaws | 2 |
| Actuator system | Pneumatic |
| Mounting position | Any |
| Mode of operation | Double-acting |
| Gripper function | Parallel |
| Gripping force backup | Without |
| Structural design | Positively driven motion sequence |
| Guide | Sliding guide |
| Position sensing | For proximity sensor |
| Symbol | 00991894 |
| Operating pressure | 0.2 MPa ... 0.8 MPa |
| Operating pressure | 2 bar ... 8 bar |
| Operating pressure | 29 psi ... 116 psi |
| Max. operating frequency of pneumatic gripper | 2 Hz |
| Min. opening time at 6 bar | 95 ms |
| Min. closing time at 6 bar | 123 ms |
| Max. mass per external gripper finger | 450 g |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Suitability for the production of Li-ion batteries | Metals with more than 1% by mass of copper are excluded from use. Circuit boards, Lines, electrical push-in connectors and Coils Metals with more than 1% copper as an alloy component are excluded from use. Exceptions are printed circuit boards, cables, el |
| Ambient temperature | 5 °C ... 60 °C |
| Gripping force per gripper jaw at 6 bar, opening | 970 N |
| Gripping force per gripper jaw at 6 bar, closing | 910 N |
| Gripping force per gripper jaw at 6 bar, opening | 483 N |
| Gripping force per gripper jaw at 6 bar, closing | 450 N |
| Mass moment of inertia | 12.7 kgcm² |
| Maximum force on gripper jaw Fz, static | 450 N |
| Maximum torque on gripper jaw, Mx static | 50 Nm |
| Maximum torque on gripper jaw, My static | 50 Nm |
| Maximum torque on gripper jaw, Mz static | 50 Nm |
| Relubrication interval for guidance elements | 10 MioCyc |
| Product weight | 1285 g |
| Type of mounting | Via through-hole and centering sleeve |
