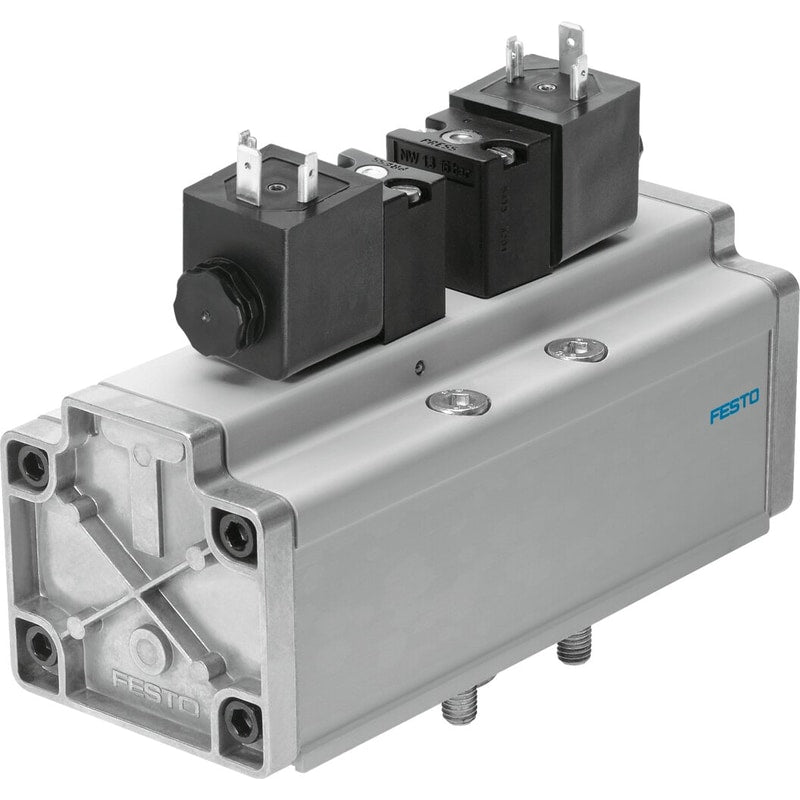

Air solenoid valve
JMDH-5/2-3/4-D-4-24DC
12458
GTIN 4052568111977
Vendor Festo

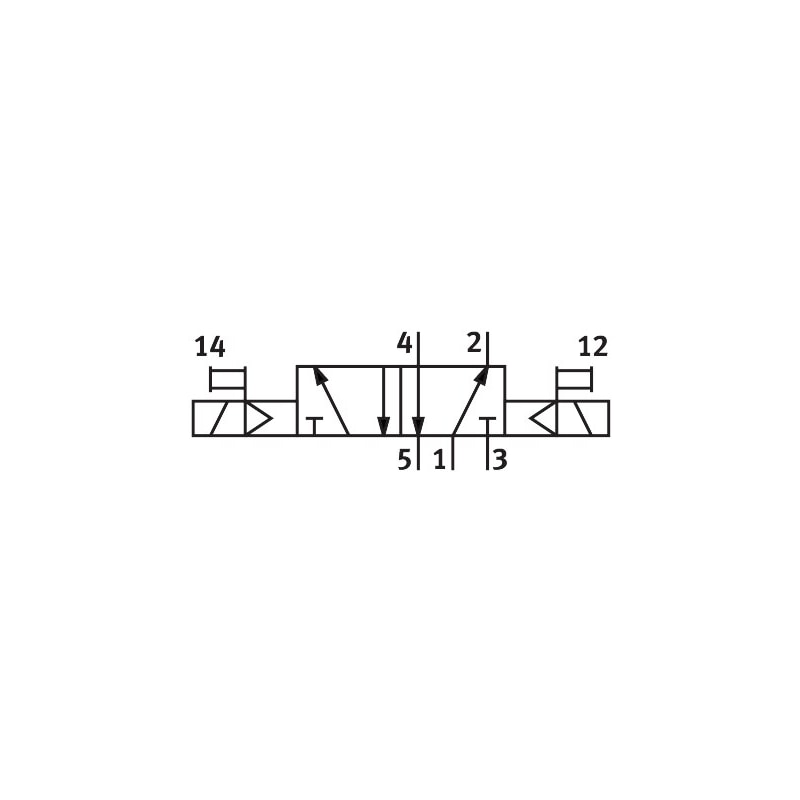

- Valve function
- 5/2, bistable
- Normal nominal flow rate (normalized to DIN 1343)
- 6000 l/min
- Pneumatic connection 1
- Sub-base, size 4 as per ISO 5599-1
- Actuation type
- Electrical
Regular price
$1,174.98
Unit price
JMDH-5/2-3/4-D-4-24DC is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
JMDH-5/2-3/4-D-4-24DC
Regular price
$1,174.98
Unit price
JMDH-5/2-3/4-D-4-24DC is backordered and will ship as soon as it is back in stock.
solenoid valve JMDH-5/2-3/4-D-4-24DC With pilot valve and manual override, no socket connector Valve function=5/2 bistable, Type of actuation=electrical, Width=76 mm, Standard nominal flow rate=6000 l/min, Operating pressure=2 - 16 bar
| Valve function | 5/2 bistable |
|---|---|
| Type of actuation | electrical |
| Width | 76 mm |
| Standard nominal flow rate | 6,000 l/min |
| Operating pressure | 2 ... 16 bar |
| Design structure | Piston slide |
| Protection class | IP65 |
| Nominal size | 18 mm |
| Grid dimension | 82 mm |
| Exhaust-air function | throttleable |
| Sealing principle | soft |
| Assembly position | Any |
| Conforms to standard | ISO 5599-1 |
