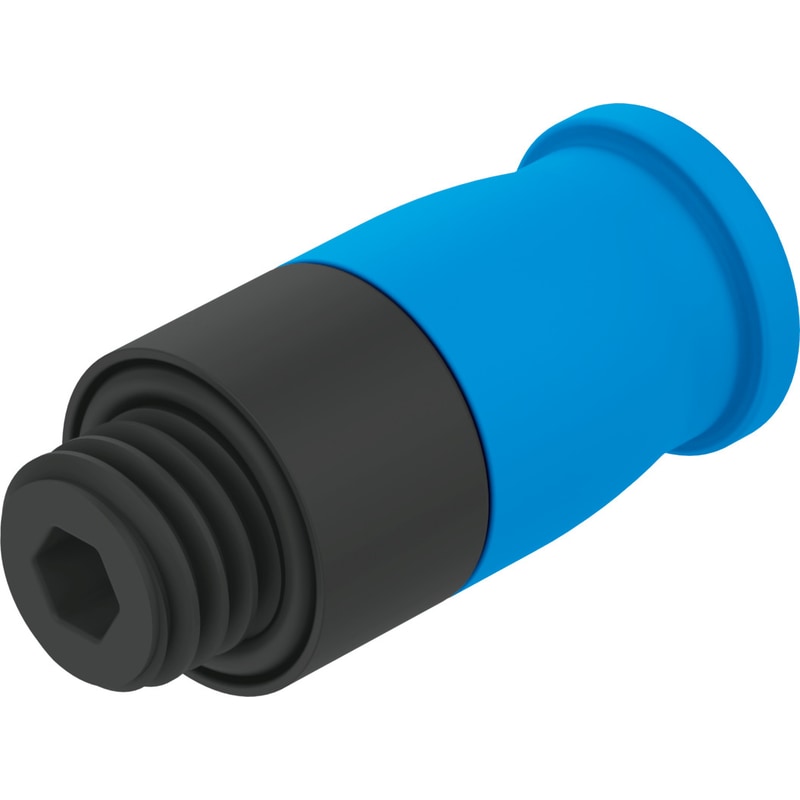

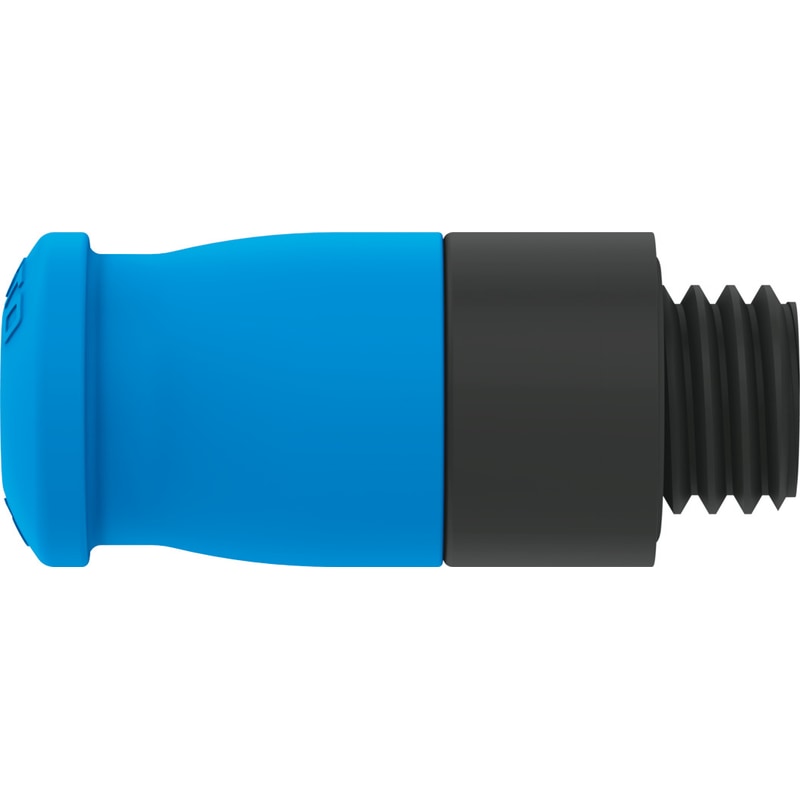

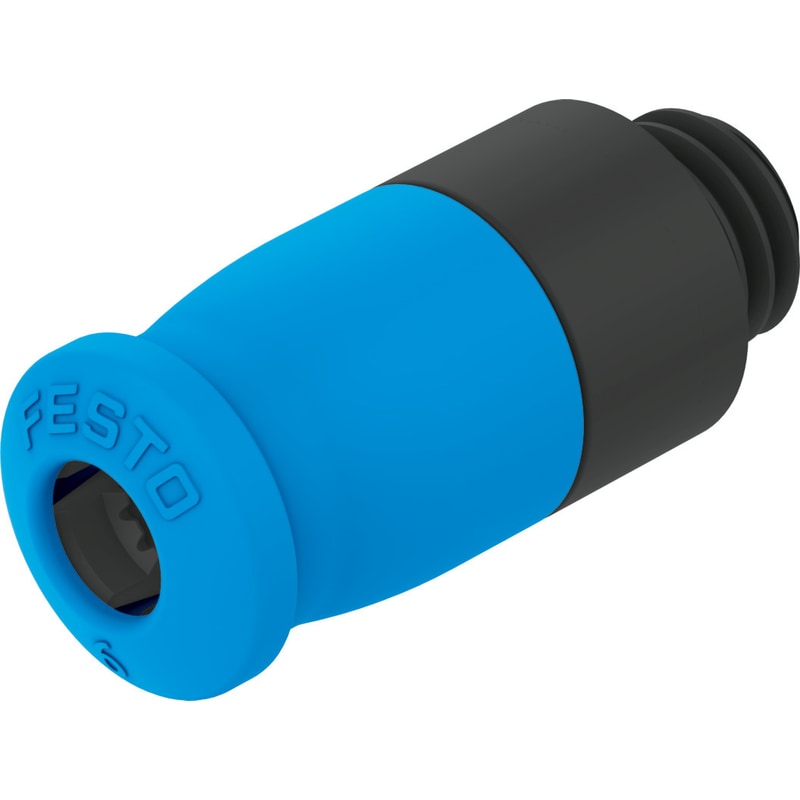

Click fitting
NPKA-D-G18-Q6-P10
1243489
GTIN 4052568061838
Vendor Festo
- Pneumatic connection 1
- External thread G1/8
- Pneumatic connection 2
- for pneumatic tubing outside diameter 6 mm
- Ambient temperature
- -10 °C - 60 °C
Regular price
$4.82
Unit price
NPKA-D-G18-Q6-P10 Click fitting is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
NPKA-D-G18-Q6-P10
Regular price
$4.82
Unit price
NPKA-D-G18-Q6-P10 Click fitting is backordered and will ship as soon as it is back in stock.
| Size | Standard |
|---|---|
| Nominal width | 4 mm |
| Type code | NPKA |
| Type of seal on screwed trunnion | Sealing ring |
| Mounting position | Any |
| Pack size | 10 |
| Design | Push-pull principle |
| Operating pressure | -0.95 bar ... 10 bar |
| Temperature-dependent operating pressure | -0.95 bar ... 10 bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-]Water as per manufacturer's declaration at www.festo.com |
| Information on operating and pilot media | Operation with oil lubrication possible |
| For use in the food industry | See supplementary material information |
| Ambient temperature | -10 °C ... 60 °C |
| Max. tightening torque | 2 Nm |
| Nominal tightening torque | 1.25 Nm |
| Tolerance for nominal tightening torque | ± 20% |
| Product weight | 4.2 g |
| Pneumatic connection 1 | External thread G1/8 |
| Pneumatic connection 2 | for pneumatic tubing outside diameter 6 mm |
| Note on materials | RoHS-compliant |
| Housing material | PA66-GF30 |
| Material of threaded seal | PA66-GF30/TPE-U |
| Sleeve material | POM |
