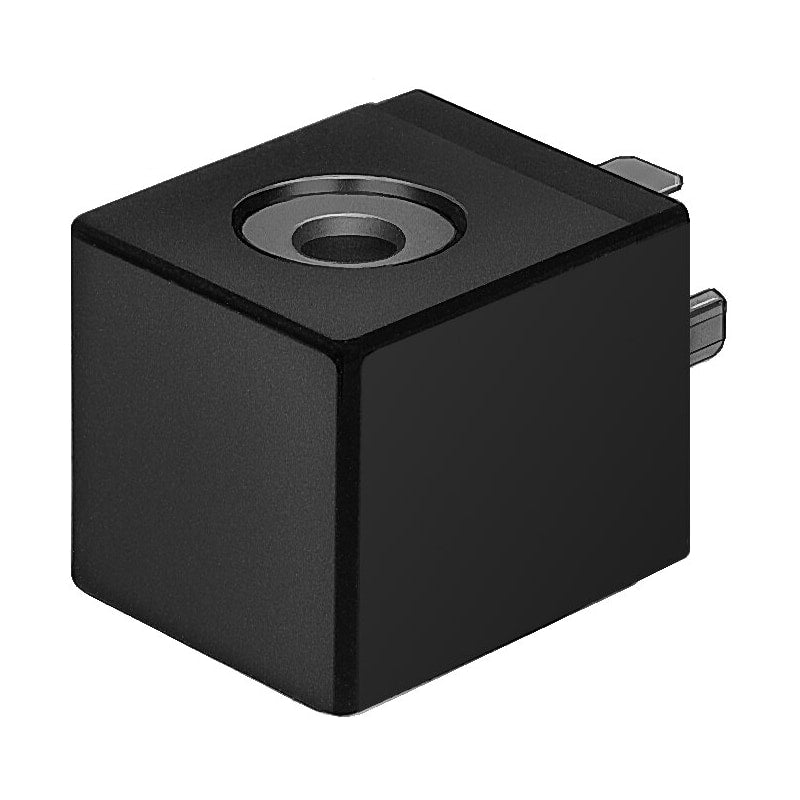

Solenoid coil
MSN1W-110AC-OD
123061
GTIN 4052568023522
Vendor Festo
- Electrical connection
- 3-pin - Form A - as per DIN EN 175301-803
- Type of mounting
- Clamped - With retaining clamp - With accessories
- Coil characteristics
- 110 V AC: 50 Hz, initial power 7.5 VA, holding power 5.0 VA - 110 V AC: 60 Hz, initial power 5.0 VA, holding power 3.7 VA - 120 V AC: 60 Hz, initial power 5.0 VA, holding power 3.7 VA
- Degree of protection
- IP65
Regular price
$24.69
Unit price
MSN1W-110AC-OD is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
MSN1W-110AC-OD
Regular price
$24.69
Unit price
MSN1W-110AC-OD is backordered and will ship as soon as it is back in stock.
solenoid coil MSN1W-110AC-OD For AC voltage, without plug socket. Assembly position=Any, Min. pickup time=10 ms, Duty cycle=100%, Power factor cos {phi}=0,7, Characteristic coil data=(* 110 V AC: 50 Hz, pick-up power 7.5 VA, holding power 5 VA, * 110 V AC: 60 Hz, pick-up power 5 VA, holding power 3.7 VA, * 120 V AC: 60 Hz, pick-up power 5 VA, holding power 3.7 VA)
| Assembly position | Any |
|---|---|
| Min. pickup time | 10 ms |
| Duty cycle | 1 |
| Power factor cos {phi} | 0.7 |
| Characteristic coil data | 110 V AC: 50 Hz, pick-up power 7.5 VA, holding power 5 VA110 V AC: 60 Hz, pick-up power 5 VA, holding power 3.7 VA120 V AC: 60 Hz, pick-up power 5 VA, holding power 3.7 VA |
| Permissible voltage fluctuation | bei 50Hz ±10 i 60Hz -10...+20 % |
| CE mark (see declaration of conformity) | to EU directive low-voltage devices |
| Medium temperature | '-10 ... 50 °C |
| Protection class | IP65 |
| Ambient temperature | '-10 ... 50 °C |
| Maritime classification | see certificate |
| Product weight | 80 g |
| Electrical connection | Per DIN EN 175301-803Plug pattern type A to EN 175301-8033-pin |
