Barb T-fitting

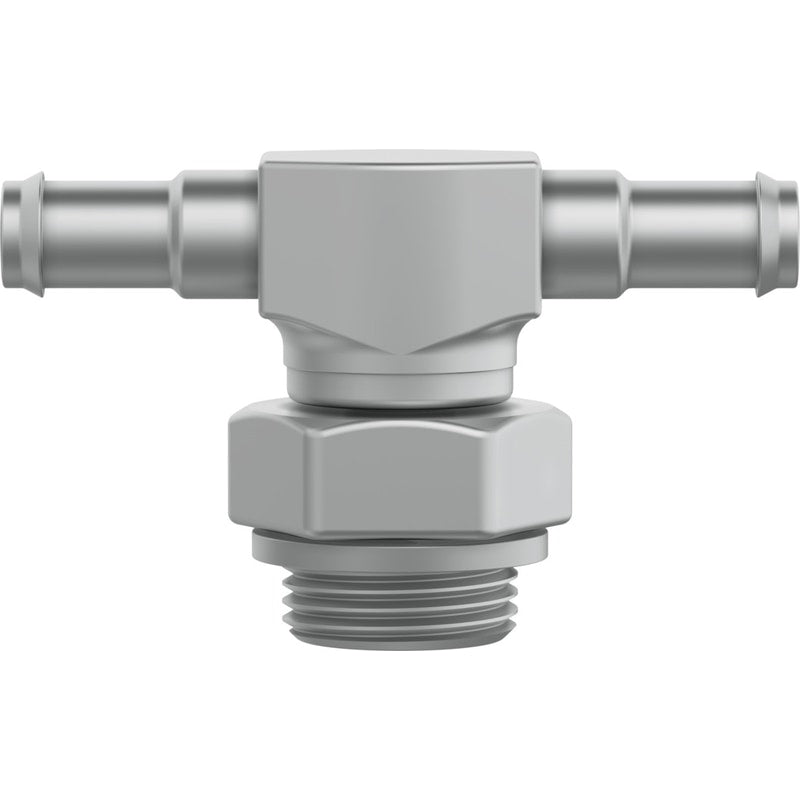

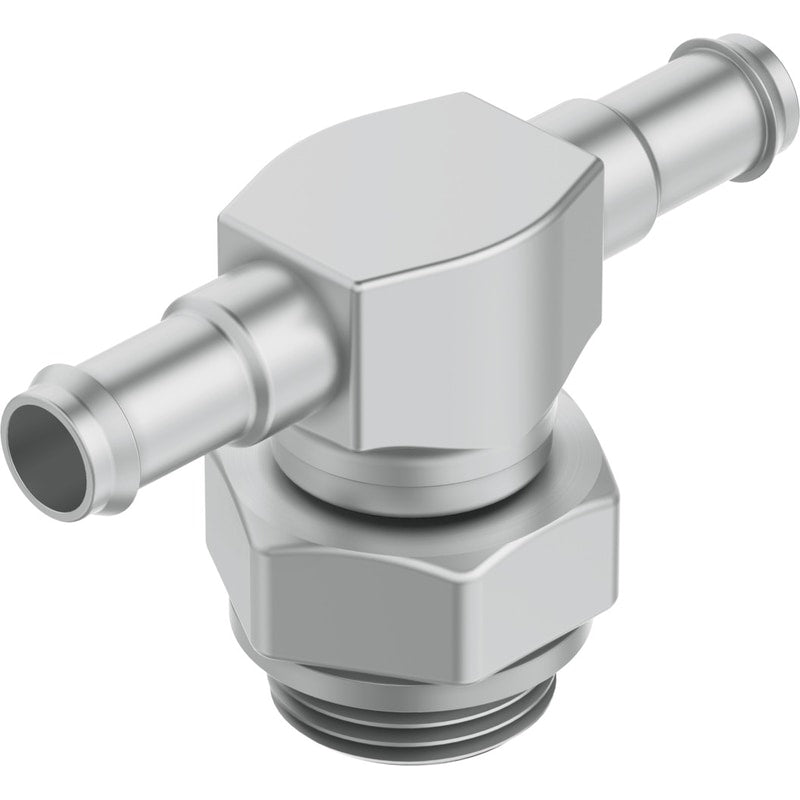

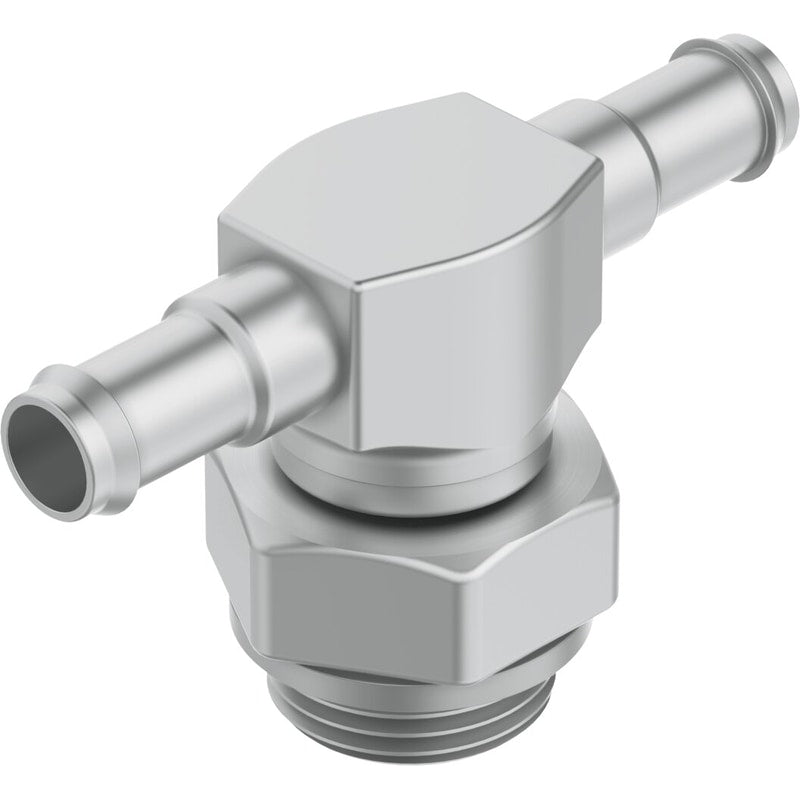

TCN-M5-PK-3 Barbed T-fitting
12259
GTIN 4052568021467
Vendor Festo
- Pneumatic connection 1
- External thread M5
- Pneumatic connection 2
- for pneumatic tubing outside diameter 4 mm
- Nominal width
- 2 mm
- Ambient temperature
- 0 °C - 60 °C
Regular price
$12.17
Unit price
TCN-M5-PK-3 Barbed T-fitting is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
TCN-M5-PK-3 Barbed T-fitting
Regular price
$12.17
Unit price
TCN-M5-PK-3 Barbed T-fitting is backordered and will ship as soon as it is back in stock.
barbed T-fitting TCN-M5-PK-3 For plastic tubing PAN, PUN, PP, PU, PR, with sealing ring, rotatable. Nominal size=2 mm, Type of seal on screw-in stud=Sealing ring, Operating pressure complete temperature range=-0,95 - 10 bar, Operating medium=Compressed air in accordance with ISO8573-1:2010 [7:-:-], Note on operating and pilot medium=Lubricated operation possible (subsequently required for further operation)
| Fitting Type | Barbed Tee |
|---|---|
| Nominal size | 2 mm |
| Type of seal on screw-in stud | Sealing ring |
| Operating pressure complete temperature range | '-0.95 ... 10 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Corrosion resistance classification CRC | 2 - Moderate corrosion stress |
| Ambient temperature | 0 ... 60 °C |
| connection 1 | Male thread M5 |
| connection 2 | For tubing outside diameter 4 mm |
| Materials note | Conforms to RoHS |
| Material housing | SteelZinc die-casting |
