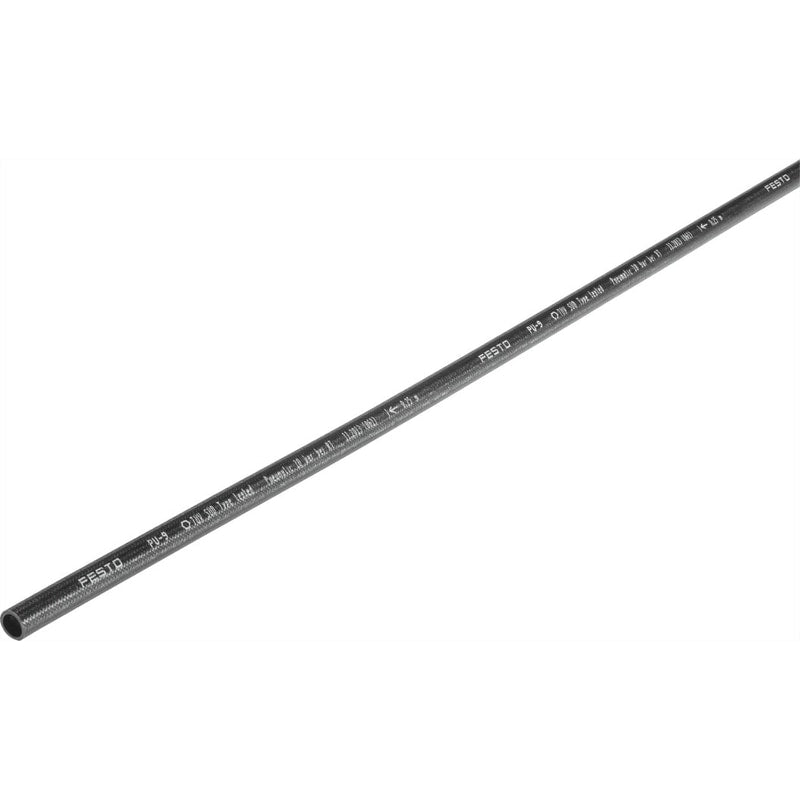

Plastic tubing
PU-9-SW
12134
GTIN 4052568021412
Vendor Festo
- Outside diameter
- 11.6 mm
- Inside diameter
- 9 mm
- Operating pressure for entire temperature range
- 0 bar - 10 bar
- Ambient temperature
- -35 °C - 60 °C
Regular price
$15.78
Unit price
PU-9-SW Plastic tubing is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
PU-9-SW
Regular price
$15.78
Unit price
PU-9-SW Plastic tubing is backordered and will ship as soon as it is back in stock.
| Outside diameter | 11.6 mm |
|---|---|
| Bending radius relevant for flow rate | 76 mm |
| Inside diameter | 9 mm |
| Type code | PU |
| Operating pressure for entire temperature range | 0 bar ... 10 bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Information on operating and pilot media | Operation with oil lubrication possible |
| Ambient temperature | -35 °C ... 60 °C |
| Product weight by length | 0.056 kg/m |
| Pneumatic connection | For barbed fitting, inside diameter 9 mm, with union nut |
| Color | Black |
| Shore hardness | A 91 +/-3 |
| Note on materials | RoHS-compliantFree of copper and PTFE |
| Material of pneumatic tubing | TPE-U(PU) |
