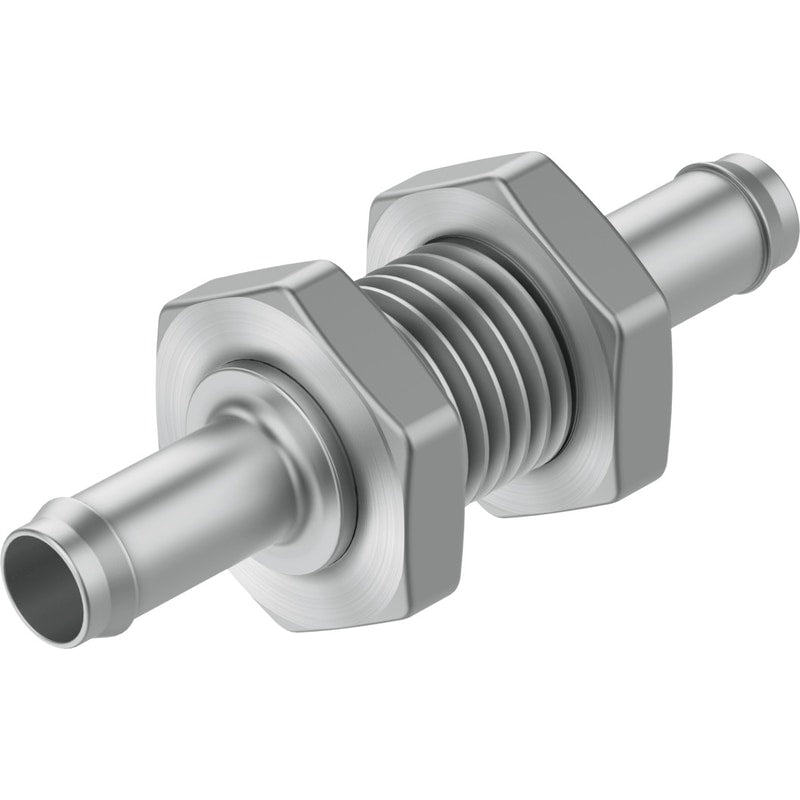

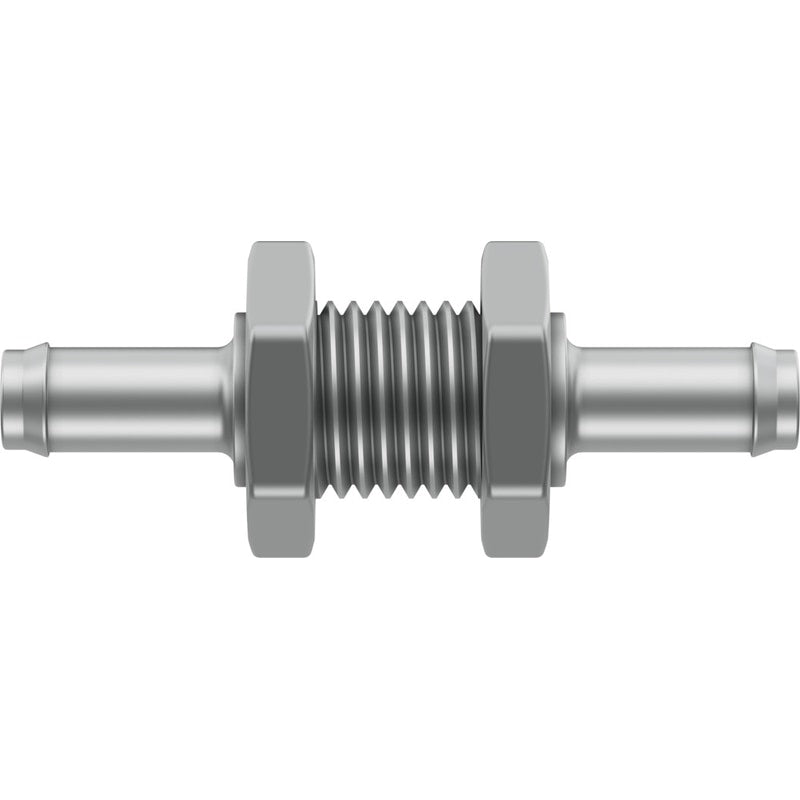

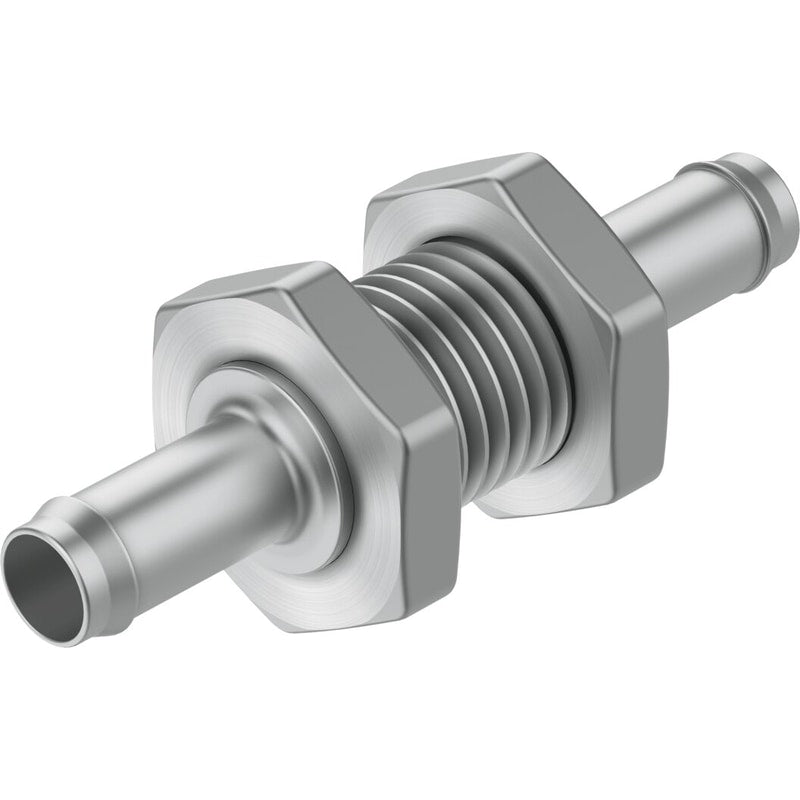

Barbed bulkhead connector
SCN-PK-4
11973
GTIN 4052568021382
Vendor Festo
- Pneumatic connection 1
- For pneumatic tubing outside diameter 6 mm
- Nominal width
- 2.8 mm
- Ambient temperature
- 0 °C - 60 °C
Regular price
$13.81
Unit price
SCN-PK-4 Barbed bulkhead connector is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
SCN-PK-4
Regular price
$13.81
Unit price
SCN-PK-4 Barbed bulkhead connector is backordered and will ship as soon as it is back in stock.
barbed bulkhead fitting SCN-PK-4 For plastic tubing PAN, PUN, PL, PP, PU. Nominal size=2,8 mm, Operating pressure complete temperature range=-0,95 - 10 bar, Operating medium=Compressed air in accordance with ISO8573-1:2010 [7:-:-], Note on operating and pilot medium=Lubricated operation possible (subsequently required for further operation), Ambient temperature=0 - 60 °C
| Fitting Type | Barbed Bulkhead |
|---|---|
| Nominal size | 2.8 mm |
| Operating pressure complete temperature range | '-0.95 ... 10 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Ambient temperature | 0 ... 60 °C |
| connection 1 | 6mm outside diameter, for tubing |
| Materials note | Conforms to RoHS |
| Material housing | Aluminium |
| Material nut | steel, galvanized |
