Air solenoid valve
MOFH-3-3/4
11969
GTIN 4052568002497
Vendor Festo
Regular price
$773.66
Unit price
MOFH-3-3/4 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
MOFH-3-3/4
Regular price
$773.66
Unit price
MOFH-3-3/4 is backordered and will ship as soon as it is back in stock.

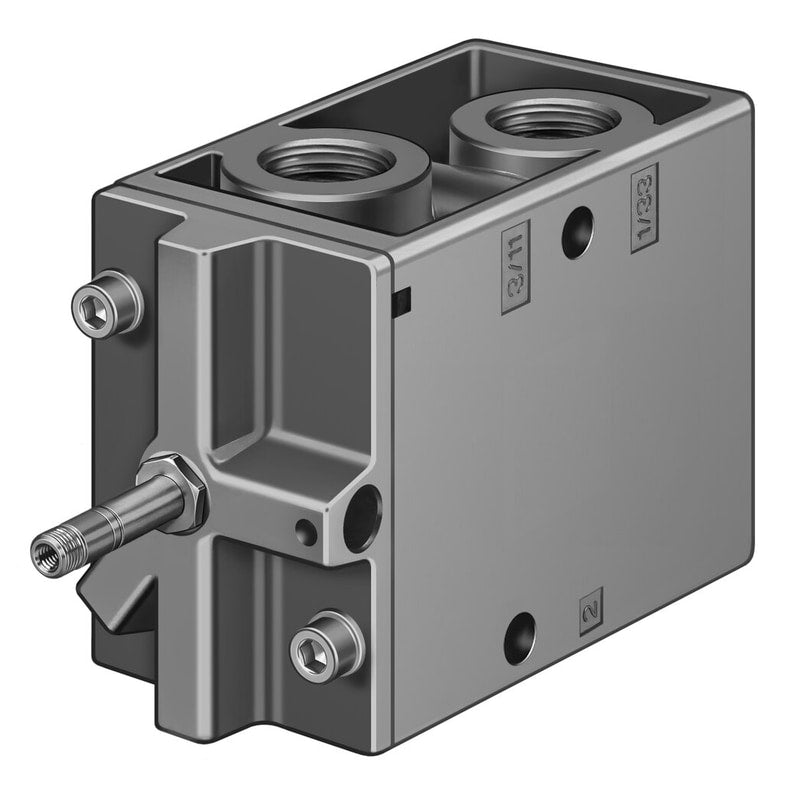

solenoid valve MOFH-3-3/4 With manual override, without solenoid coil or socket. Solenoid coil and socket should be ordered separately. Valve function=3/2 open, monostable, Type of actuation=electrical, Width=68 mm, Standard nominal flow rate=7500 l/min, Operating pressure=2 - 8 bar
| Valve function | 3/2 open, monostable |
|---|---|
| Type of actuation | electrical |
| Width | 68 mm |
| Standard nominal flow rate | 7,500 l/min |
| Operating pressure | 2 ... 8 bar |
| Design structure | Poppet seat |
| Type of reset | mechanical spring |
| Protection class | IP65 |
| Authorisation | c UL us - Recognized (OL) |
| Nominal size | 19 mm |
| Exhaust-air function | throttleable |
| Sealing principle | soft |
| Assembly position | Any |
