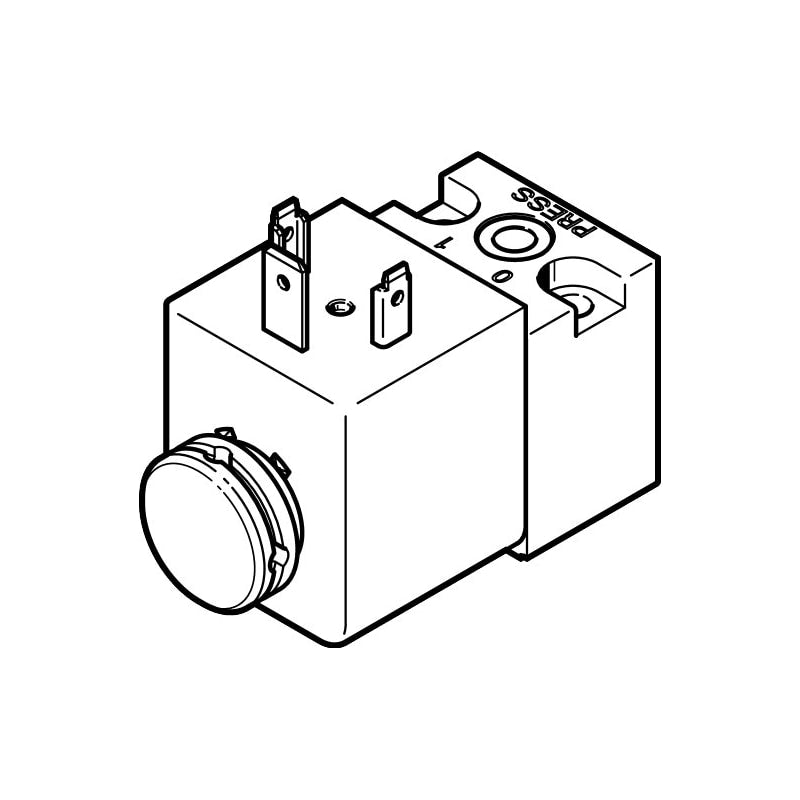

Pilot valve
MDH-3/2-110VAC
119601
GTIN 4052568068240
Vendor Festo
- Valve function
- 3/2, closed, monostable
- Normal nominal flow rate (normalized to DIN 1343)
- 50 l/min
- Pneumatic connection 1
- Sub-base
- Actuation type
- Electrical
Regular price
$112.84
Unit price
MDH-3/2-110VAC is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
MDH-3/2-110VAC
Regular price
$112.84
Unit price
MDH-3/2-110VAC is backordered and will ship as soon as it is back in stock.
pilot valve MDH-3/2-110VAC Directly actuated, with solenoid coil and manual override, without plug socket. Valve function=3/2 closed, monostable, Type of actuation=electrical, Width=30 mm, Standard nominal flow rate=50 l/min, Operating pressure=1 - 16 bar
| Valve function | 3/2 closed, monostable |
|---|---|
| Type of actuation | electrical |
| Width | 30 mm |
| Standard nominal flow rate | 50 l/min |
| Operating pressure | 1 ... 16 bar |
| Design structure | Poppet seat |
| Type of reset | mechanical spring |
| Protection class | IP65 |
| Nominal size | 1.3 mm |
| Grid dimension | 42 mm |
| Exhaust-air function | not throttleable |
| Based on the standard | ISO 15218 |
| Sealing principle | soft |
