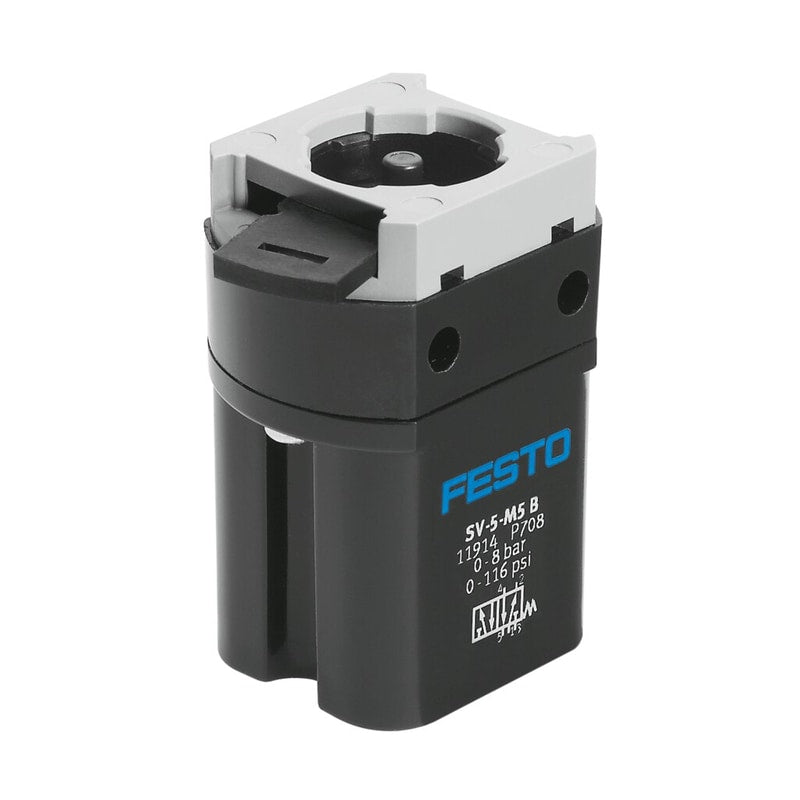

Front panel valve
SV-5-M5-B
11914
GTIN 4052568002480
Vendor Festo
Regular price
$136.02
Unit price
SV-5-M5-B is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
SV-5-M5-B
Regular price
$136.02
Unit price
SV-5-M5-B is backordered and will ship as soon as it is back in stock.
front panel valve SV-5-M5-B Valve function=5/2 monostable, Type of actuation=manual, Standard nominal flow rate=95 l/min, Operating pressure=0 - 8 bar, Design structure=Poppet valve with spring return
| Valve function | 5/2 monostable |
|---|---|
| Type of actuation | manual |
| Standard nominal flow rate | 95 l/min |
| Operating pressure | 0 ... 8 bar |
| Design structure | Poppet valve with spring return |
| Type of reset | mechanical spring |
| Nominal size | 2.3 mm |
| Sealing principle | soft |
| Assembly position | Any |
| Type of piloting | direct |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [-:-:-] |
| Ambient temperature | '-10 ... 60 °C |
| Actuating force | 17 N |
