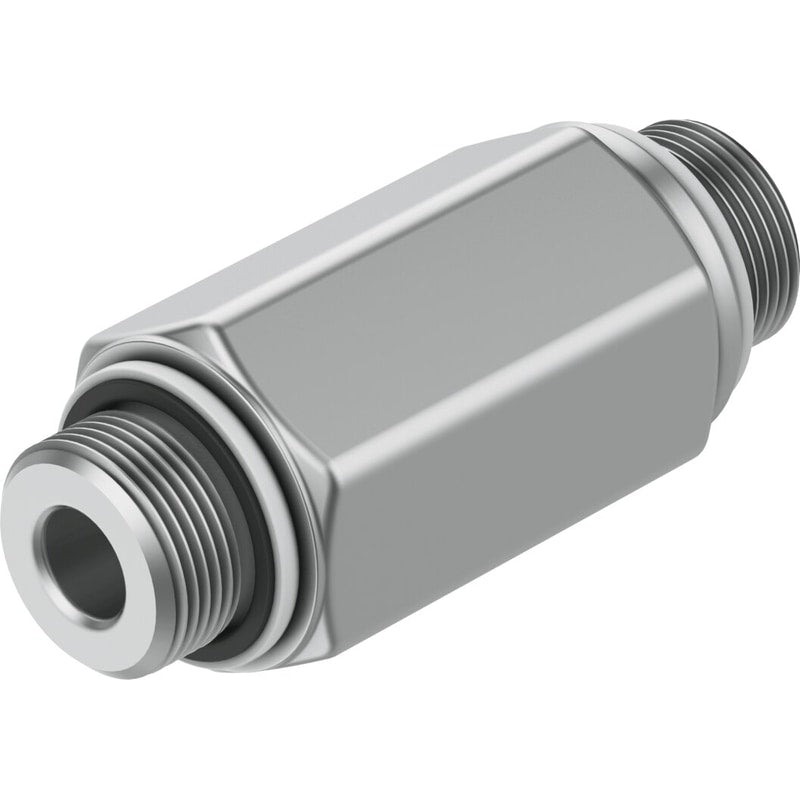

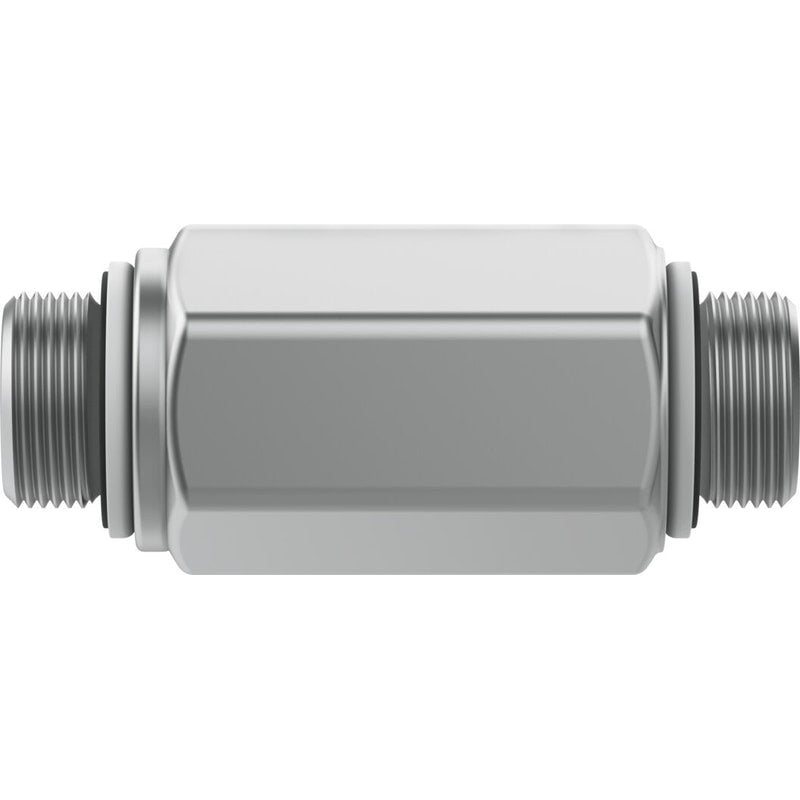

Non return valve
H-3/8-B
11690
GTIN 4052568002404
Vendor Festo
- Valve function
- Non-return function
- Pneumatic connection 1
- G3/8
- Pneumatic connection 2
- G3/8
- Operating pressure
- 0.4 bar - 12 bar
- Housing material
- Wrought aluminum alloy, anodized
Regular price
$74.70
Unit price
H-3/8-B is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
H-3/8-B
Regular price
$74.70
Unit price
H-3/8-B is backordered and will ship as soon as it is back in stock.
Manually operated shut-off valve in robust plastic design and with plug connections
| Type code | QHS |
|---|---|
| Valve function | 2/2 bistable |
| Pneumatic connection 1 | QS-6 |
| Pneumatic connection 2 | QS-6 |
| Actuation type | Manual |
| Type of mounting | With lock nut |
| Standard nominal flow rate | 528 l/min |
| Nominal width | 4 mm |
| Operating pressure | -1 bar ... 10 bar |
| Ambient temperature | 0 °C ... 60 °C |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Sealing principle | Soft |
| Design | Ball valve |
| Symbol | 00991458 |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Product weight | 16.5 g |
| Note on materials | RoHS-compliant |
