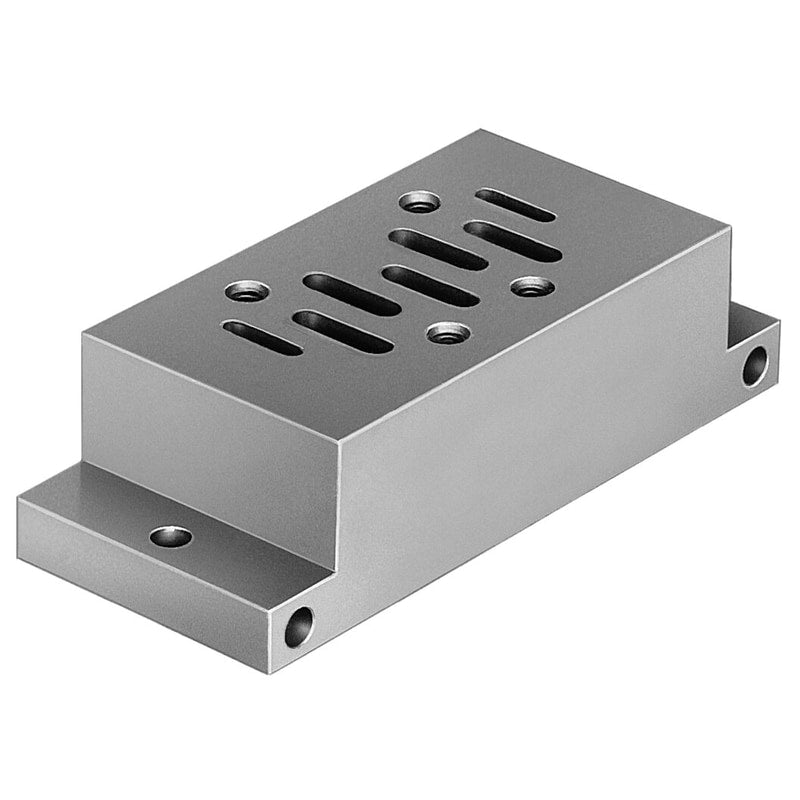

Individual subbase
NAU-3/8-2B-ISO
11416
GTIN 4052568065768
Vendor Festo
Regular price
$70.40
Unit price
NAU-3/8-2B-ISO is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
NAU-3/8-2B-ISO
Regular price
$70.40
Unit price
NAU-3/8-2B-ISO is backordered and will ship as soon as it is back in stock.
individual sub-base NAU-3/8-2B-ISO With port pattern as per DIN ISO 5599/1, external dimensions as per VDMA 24345, connections underneath. Conforms to standard=ISO 5599-1, Authorisation=UL - Recognized (OL), Product weight=450 g, Mounting type=with through hole, Auxiliary pilot air port 12/14=G1/8
| Conforms to standard | ISO 5599-1 |
|---|---|
| Authorisation | UL - Recognized (OL) |
| Product weight | 450 g |
| Mounting type | with through hole |
| Auxiliary pilot air port 12/14 | G1/8 |
| Pneumatic connection, port 1 | G3/8 |
| Pneumatic connection, port 2 | G3/8 |
| Pneumatic connection, port 3 | G3/8 |
| Pneumatic connection, port 4 | G3/8 |
| Pneumatic connection, port 5 | G3/8 |
| Materials note | Free of copper and PTFE |
| Material of connecting plate | Aluminium die cast |
